text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

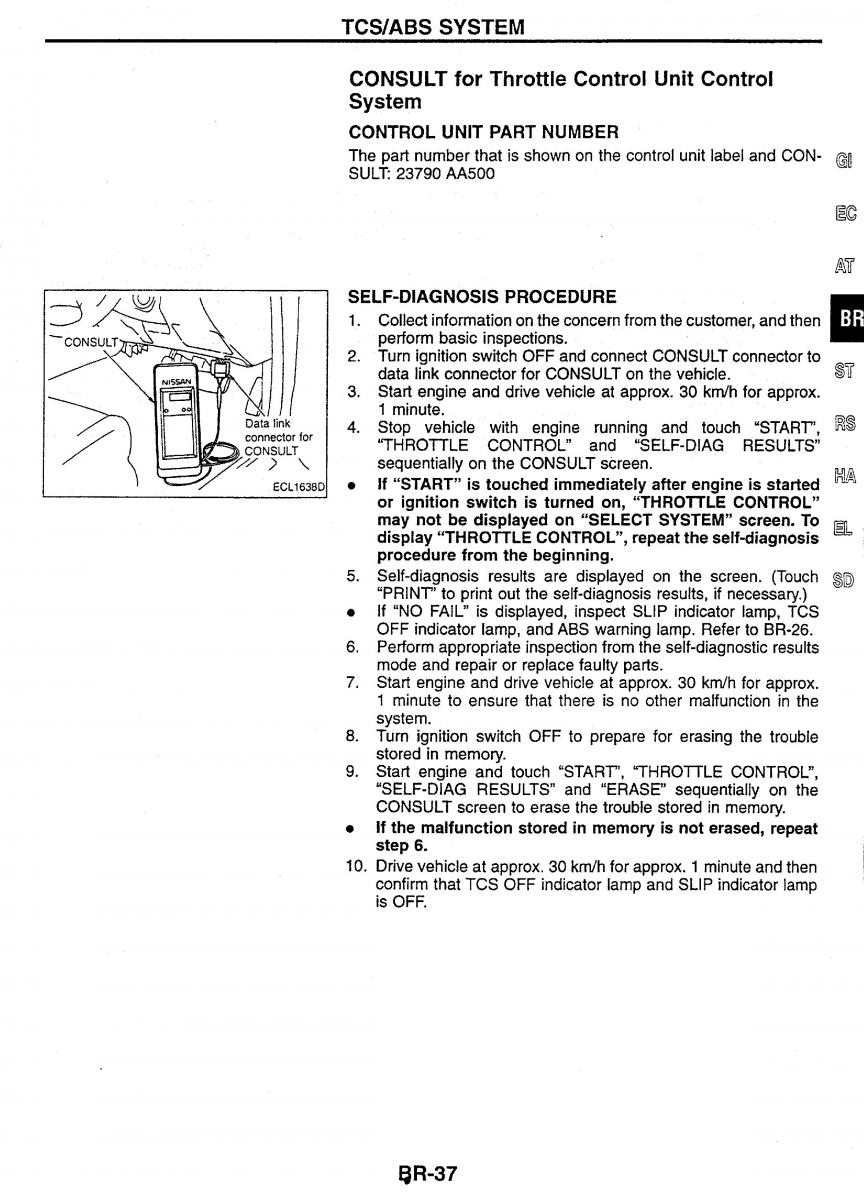

TCS/ABS SYSTEM CONSULT for Throttle Control Unit Control System CONTROL UNIT PART NUMBER The part number that is shown on the control unit label and CON- SULT 23790 AA500 SELF-DIAGNOSIS PROCEDURE Collect information on the concern from the customer, and then perform basic inspections. Turn ignition switch OFF and connect CONSULT connector to sir data link connector for CONSULT on the vehicle. Start engine and drive vehicle at approx. 30 kmlh for approx. 1 minute. Stop vehicle with engine running and touch "START', Rs "THROTTLE CONTROL" and "SELF-DIAG RESULTS" sequentially on the CONSULT screen. If "START" is touched immediately after engine is started !iIA or ignition switch is turned on, "THRORLE CONTROL" may not be displayed on "SELECT SYSTEM" screen. To a display "THROTTLE CONTROL", repeat the self-diagnosis procedure from the beginning. Self-diagnosis results are displayed on the screen. (Touch 8~ "PRINT" to print out the self-diagnosis results, if necessary.) If "NO FAIL" is displayed, inspect SLIP indicator lamp, TCS OFF indicator lamp, and ABS warning lamp. Refer to BR-26. Perform appropriate inspection from the self-diagnostic results mode and repair or replace faulty parts. Start engine and drive vehicle at approx. 30 krn/h for approx. 1 minute to ensure that there is no other malfunction in the system. Turn ignition switch OFF to prepare for erasing the trouble stored in memory. Start engine and touch "START', "THROTTLE CONTROL", "SELF-DIAG RESULTS" and "ERASE sequentially on the CONSULT screen to erase the trouble stored in memory. If the malfunction stored in memory is not erased, repeat step 6. ! 10. Drive vehicle at approx. 30 km/h for approx. 1 minute and then confirm that TCS OFF indicator lamp and SLIP indicator lamp is OFF.
