text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

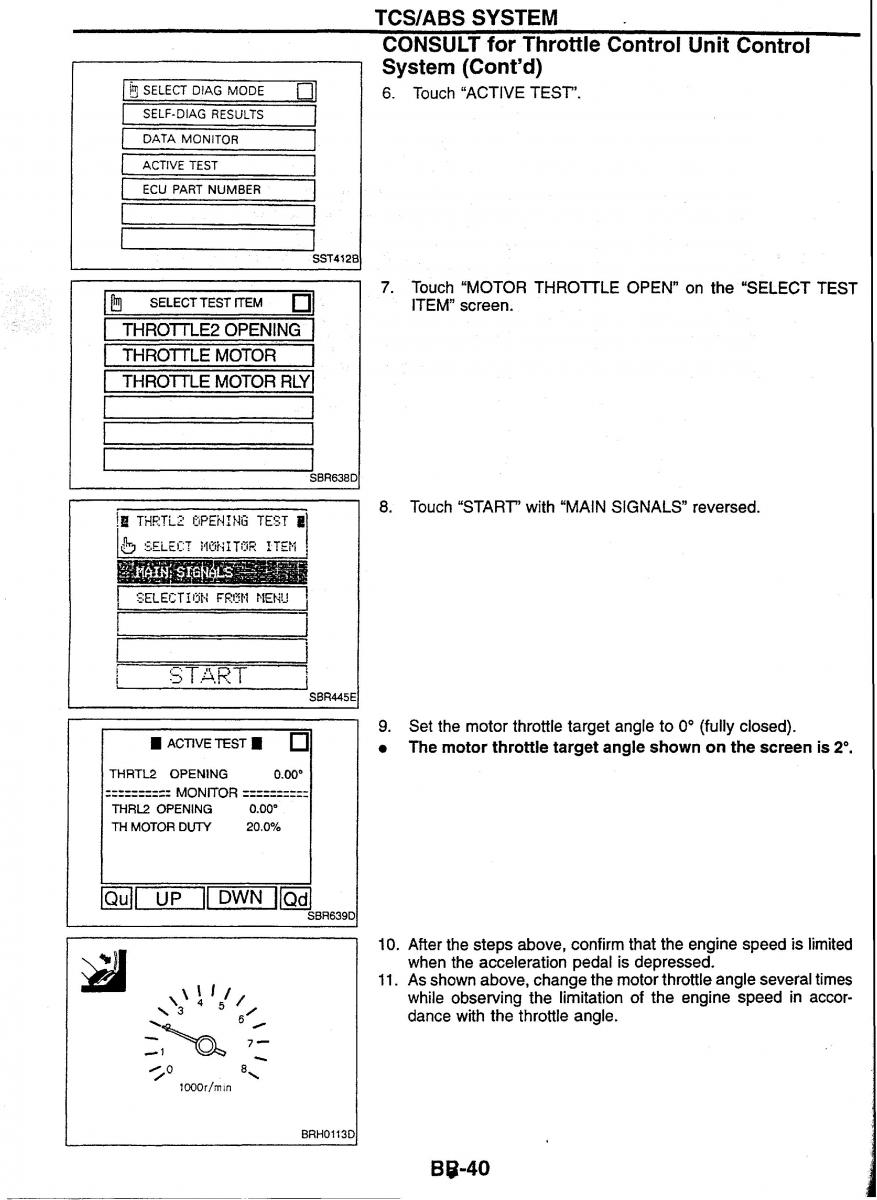

TCSIABS SYSTEM CONSULT for Throttle Control Unit Control System (Cont'd) bJ SELECT DIAG MODE Touch "ACTIVE TEST". SELF-DIAG RESULTS & I DATA MONITOR 1 ACTIVE TEST I ECU PART NUMBER I I P?j SELECTTEST ITEM Touch "MOTOR THROSTLE OPEN" on the "SELECT TEST I THROTIIEZ OPENING a ITEMn screen. I THROTTLE MOTOR I 1 THROTLE MOTOR RLY 1 Touch "START' with "MAIN SIGNALS" reversed. w ACTIVE TEST Set the motor throttle target angle to 0° (fully closed). The motor throttle target angle shown on the screen is 2". THRTL2 OPENlNG 0.00" ---------- ---------- MONITOR ========== THRL2 OPENING 0.00" THMOTORDUTY 20.0°/0 After the steps above, confirm that the engine speed is limited when the acceleration pedal is depressed. As shown above, change the motor throttle angle several times while observing the limitation of the engine speed in accor- dance with the throttle angle.
