text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

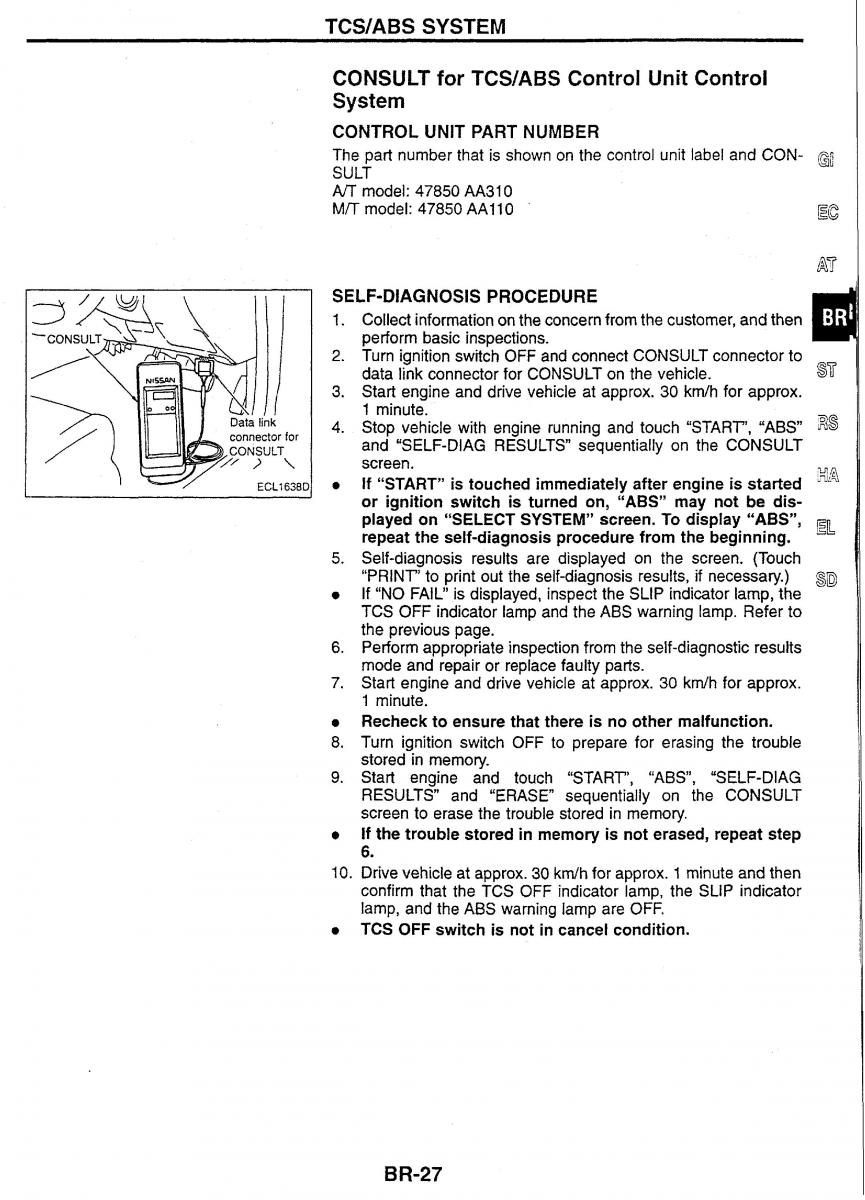

TCS/ABS SYSTEM CONSULT for TCS/ABS Control Unit Control System CONTROL UNIT PART NUMBER The part number that is shown on the control unit label and CON- SULT A/T model: 47850 AA310 M/T model: 47850 AA110 SELF-DIAGNOSIS PROCEDURE rn Collect information on the concern from the customer, and then perform basic inspections. Turn ignition switch OFF and connect CONSULT connector to ST data link connector for CONSULT on the vehicle. Start engine and drive vehicle at approx. 30 km/h for approx. 1 minute. Stop vehicle with engine running and touch "START", "ABS" 38 and "SELF-DIAG RESULTS" sequentially on the CONSULT screen. y;rjn If "START" is touched immediately after engine is started or ignition switch is turned on, "ABS" may not be dis- played on "SELECT SYSTEM" screen. To display "ABS", E~ repeat the self-diagnosis procedure from the beginning. Self-diagnosis results are displayed on the screen. (Touch "PRINT' to print out the self-diagnosis results, if necessary.) 8~ If "NO FAIL" is displayed, inspect the SLlP indicator lamp, the TCS OFF indicator lamp and the ABS warning lamp. Refer to the previous page. Perform appropriate inspection from the self-diagnostic results mode and repair or replace faulty parts. Start engine and drive vehicle at approx. 30 km/h for approx. 1 minute. Recheck to ensure that there is no other malfunction. Turn ignition switch OFF to prepare for erasing the trouble stored in memory. Start engine and touch "START", "ABS", "SELF-DIAG RESULTS" and "ERASE" sequentially on the CONSULT screen to erase the trouble stored in memory. If the trouble stored in memory is not erased, repeat step 6. Drive vehicle at approx. 30 krn/h for approx. 1 minute and then confirm that the TCS OFF indicator lamp, the SLlP indicator lamp, and the ABS warning lamp are OFF. TCS OFF switch is not in cancel condition.
