text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

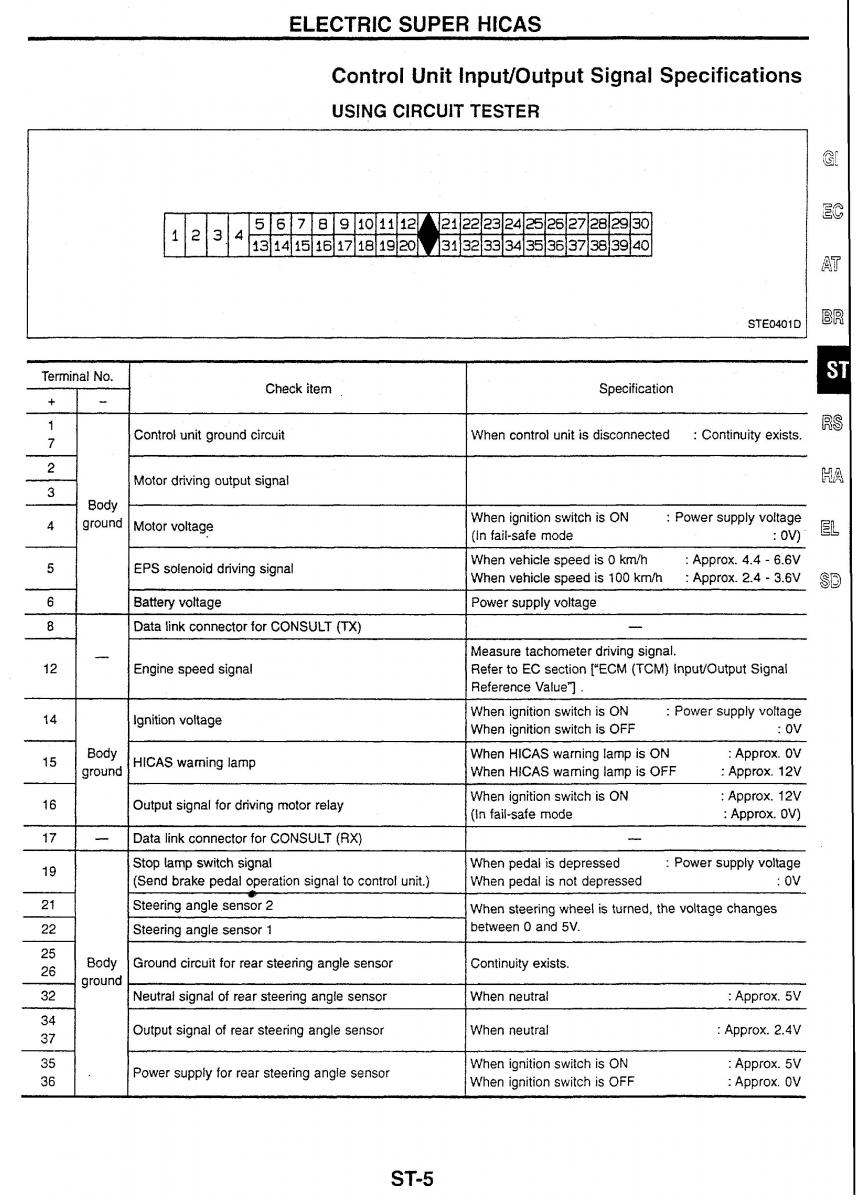

ELECTRIC SUPER HICAS Control Unit Input/Output Signal Specifications USING CIRCUIT TESTER Terminal No. Check item Specification Control unit ground circuit When control unit is disconnected : Continuity exists. Motor driving output signal Motor voltage When ignition switch is ON : Power supply voltage (In fail-safe mode : OV) EPS solenoid driving signal When vehicle speed is 0 krn/h : Approx. 4.4 - 6.6V When vehicle speed is 100 km/h : Approx. 2.4 - 3.6V Battery voltage I Power supply voltage Data link connector for CONSULT (TX) I - Measure tachometer driving signal. Engine speed signal Refer to EC section YECM (TCM) Input/Output Signal Reference Value7 . Ignition voltage When ignition switch is ON : Power supply voltage When ignition switch is OFF : OV Body HlCAS waming lamp When HlCAS warning lamp is ON : Approx. OV / ground When HlCAS warning lamp is OFF : Approx. 12V Output signal for driving motor relay When ignition switch is ON : Approx. 12V (In fail-safe mode : Approx. OV) Data link connector for CONSULT (RX) I - Stop lamp switch signal When pedal is depressed : Power supply voltage (Send brake pedal operation signal to control unit.) When pedal is not depressed : OV v Steering angle sensor 2 When steering wheel is turned, the voltage changes Steering angle sensor 1 between 0 and 5V. Body Ground circuit for rear steering angle sensor Continuity exists. - ground -- Neutral signal of rear steering angle sensor When neutral : Appro~. 5V Output signal of rear steering angle sensor I When neutral : Approx. 2.4V Power supply for rear steering angle sensor When ignition switch is ON : Approx. 5V When ignition switch is OFF : Approx. OV
