text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

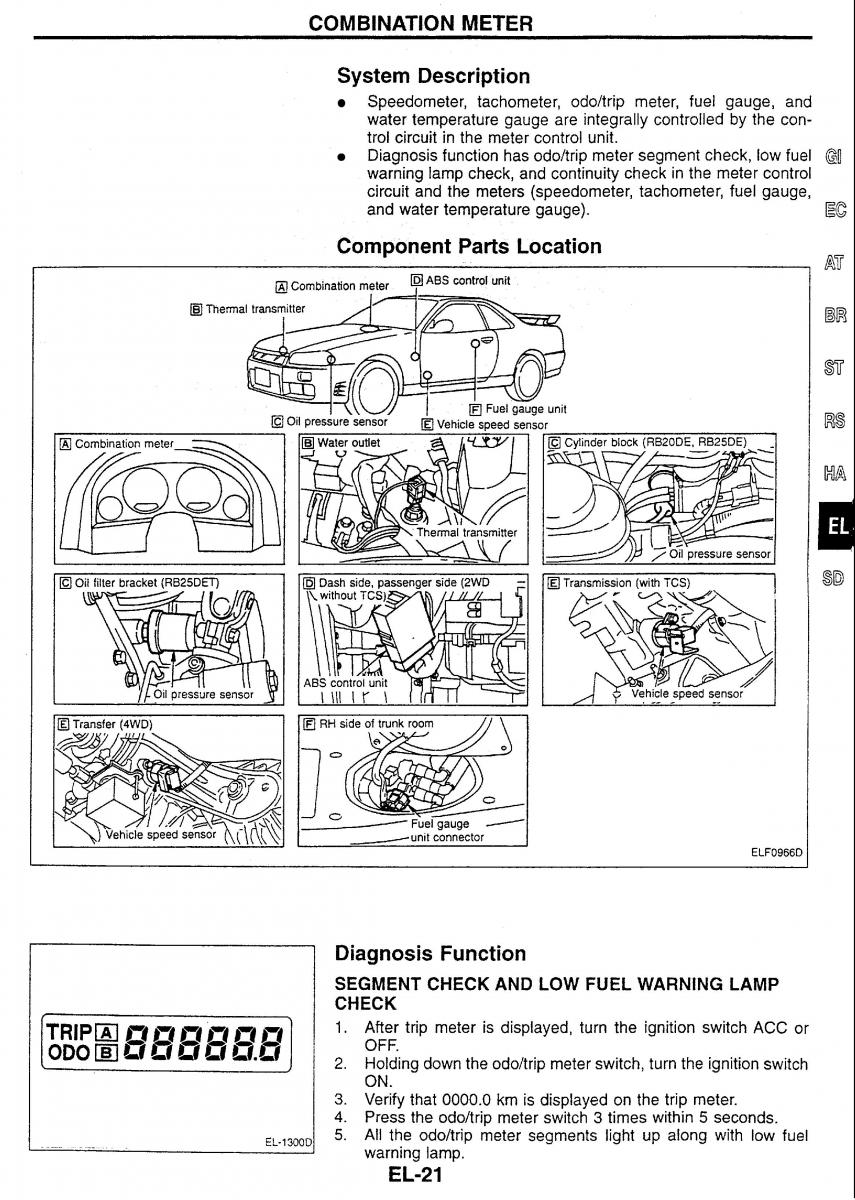

COMBINATION METER System Description Speedometer, tachometer, odoltrip meter, fuel gauge, and water temperature gauge are integrally controlled by the con- trol circuit in the meter control unit. Diagnosis function has odoltrip meter segment check, low fuel @ warning lamp check, and continuity check in the meter control circuit and the meters (speedometer, tachometer, fuel gauge, and water temperature gauge). Component Parts Location Combination meter ABS unit ID Transfer (4WD) I H side of trunk room I -unit connector I /I Diagnosis Function SEGMENT CHECK AND LOW FUEL WARNING LAMP CHECK / meter is displayed, turn the ignition switch ACC or down the odoltrip meter switch, turn the ignition switch ON. 3. Verify that 0000.0 km is displayed on the trip meter. 4. Press the odoltrip meter switch 3 times within 5 seconds. 5. All the odoltrip meter segments light up along with low fuel warning lamp. EL-21
