text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

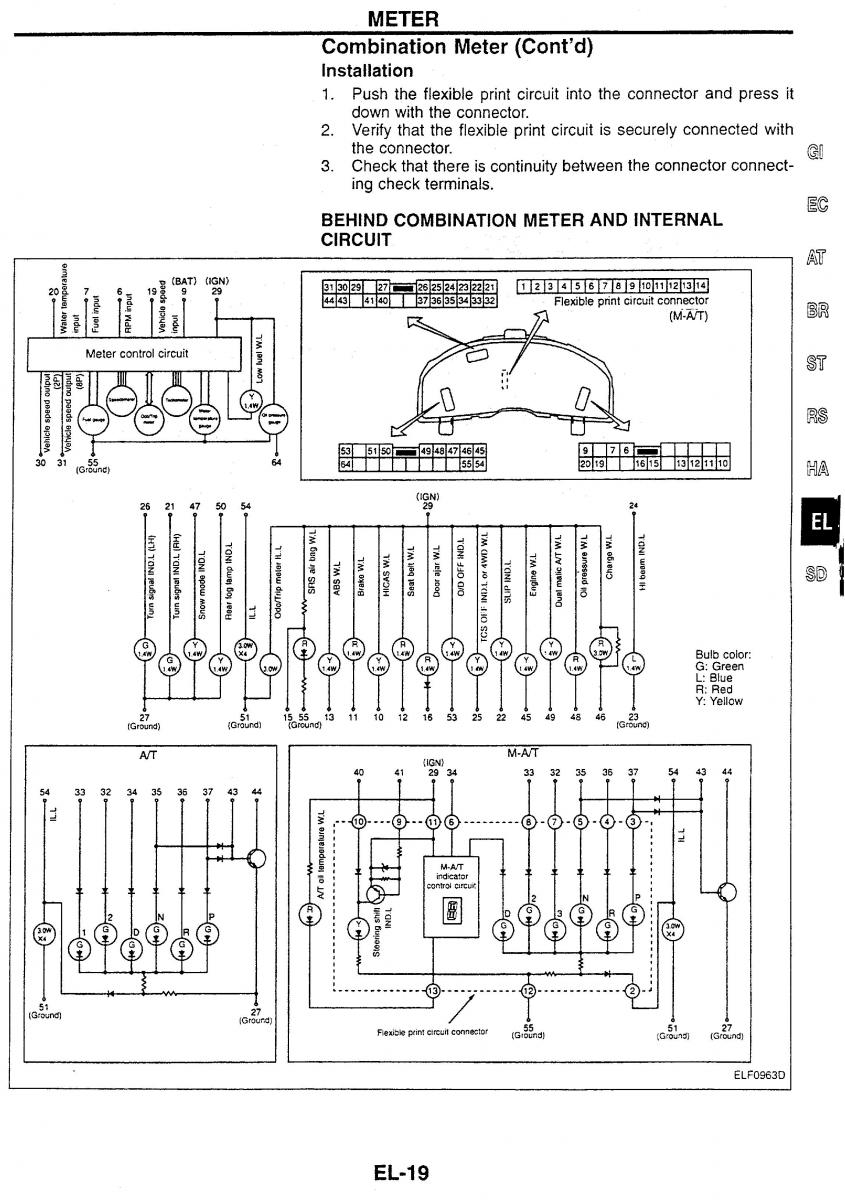

METER Combination Meter (Cont'd) Installation 1. Push the flexible print circuit into the connector and press it down with the connector. 2. Verify that the flexible print circuit is securely connected with the connector. 3. Check that there is continuity between the connector connect- ing check terminals. BEHIND COMBINATION METER AND INTERNAL CIRCUIT 2 x z g2 Bulb color: G: Green L: Blue R: Red 1 1 Y: Yellow 27 51 15 55 13 (Ground) (Ground) (Ground) 5 1 Ground) z I (Ground! 51 27 (Ground) (Ground)
