text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

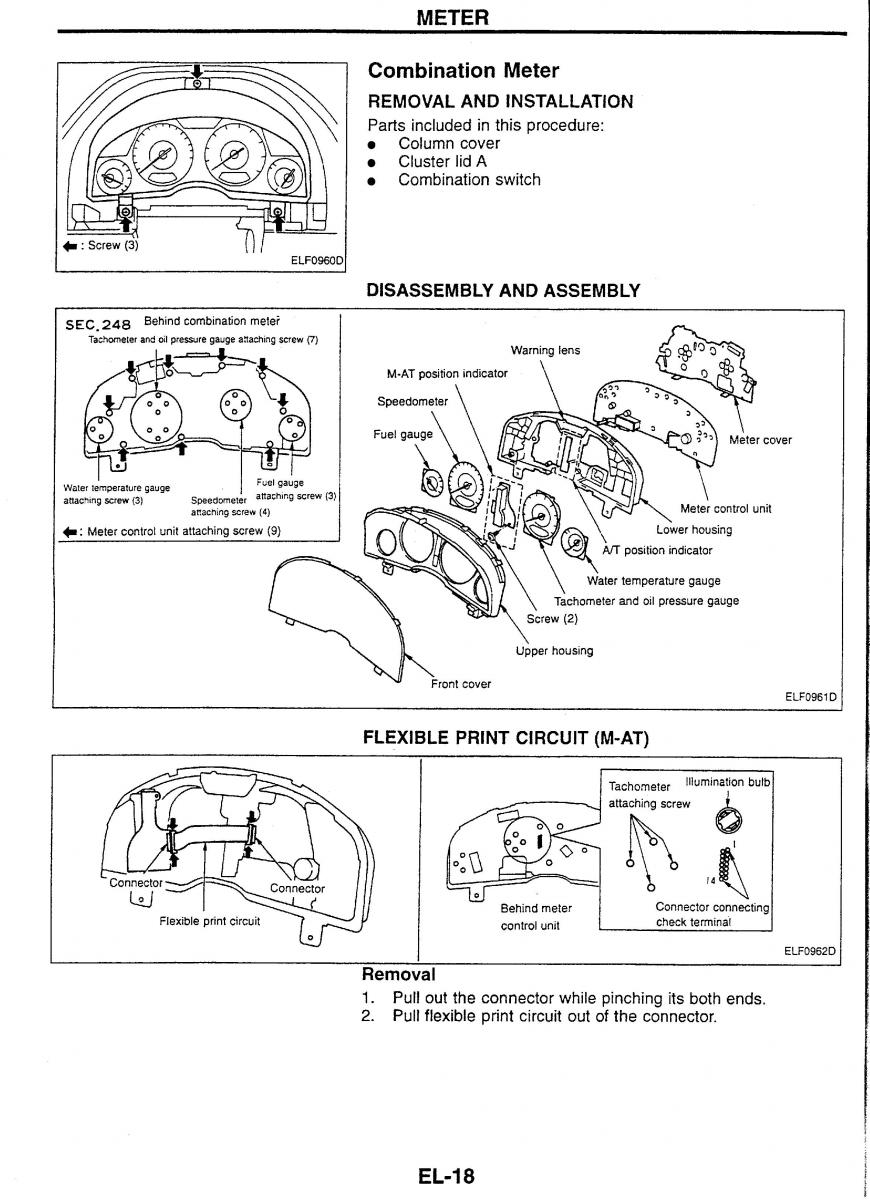

METER Combination Meter REMOVAL AND INSTALLATION Parts included in this procedure: Column cover Cluster lid A Combination switch - DISASSEMBLY AND ASSEMBLY s EC, 248 Behind combination mete! I Tachometer and oil pressure gauge anaching screw (7) cover Water tem~erature cauae I "GI yauyc - attaching screw (3) speedornet& . . lit anaching screw (4) C: Meter control unit attaching screw (9) position indicator ater temperature gauge Tachometer and oil pressure gauge Upper housing FLEXIBLE PRINT CIRCUIT (M-AT) I I Tachometer Illumination bulb I - Behind meter Connector connecting Flexible print circuit 7 r, control unit I check terminal I I Removal 1. Pull out the connector while pinching its both ends. 2. Pull flexible print circuit out of the connector.
