text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

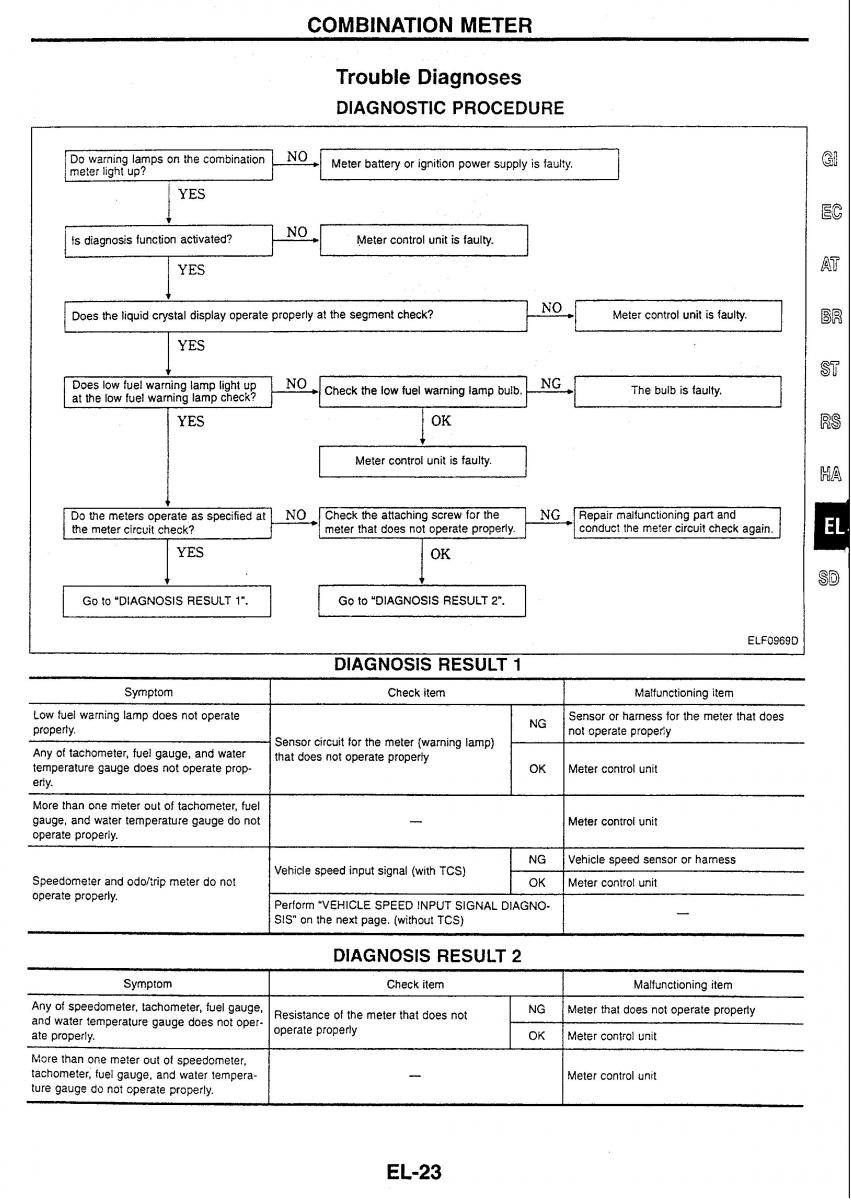

COMBINATION METER Trouble Diagnoses DIAGNOSTIC PROCEDURE DO warning lamps on the . No . meter light up? I YES Meter battery or ignition power supply is faulty. Meter control unit is faulty. t NO Does the liquid crystal display operate properly at the segment check? Meter control unit is faulty. YES at the low fuel warning lamp check? The bulb is faulty. Meter control unit is faulty. I Check the attaching screw for the ' NG *F3epair malfunct~oning part and the meter circuit check? meter that does not operate properly. * conduct the meter circuit check again. OK 4 Go to "DIAGNOSIS RESULT 1". Go to "DIAGNOSIS RESULT 2". DIAGNOSIS RESULT 1 Symptom I Check item I Malfunctioning item Low fuel warning lamp does not operate Sensor or harness for the meter that does properly. Sensor circuit for the meter (warning lamp) 1 1: 1 not operate properiy Any of tachometer, fuel gauge, and water 1 that does not operate properly temperature gauge does not operate prop- ~ Meter control unit erly. More than one meter out of tachometer, fuel gauge, and water temperature gauge do not Meter control unit operate properly. Vehicle speed input signal (with TCS) NG Vehicle speed sensor or harness Speedometer and odohrip meter do not OK Meter control unit operate properly. Perform "VEHICLE SPEED INPUT SIGNAL DIAGNO- - SIS" on the next page. (without TCS) DIAGNOSIS RESULT 2 Symptom Check item I Malfunctioning item - - Any of speedometer, tachometer, fuel gauge, Resistance of the meter that does not NG Meter that does not operate properly and water temperature gauge does not oper- operate properly ate properly. OK Meter control unit More than one meter out of speedometer, tachometer, fuel gauge, and water tempera- Meter control unit ture gauge do not operate properly.
