text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

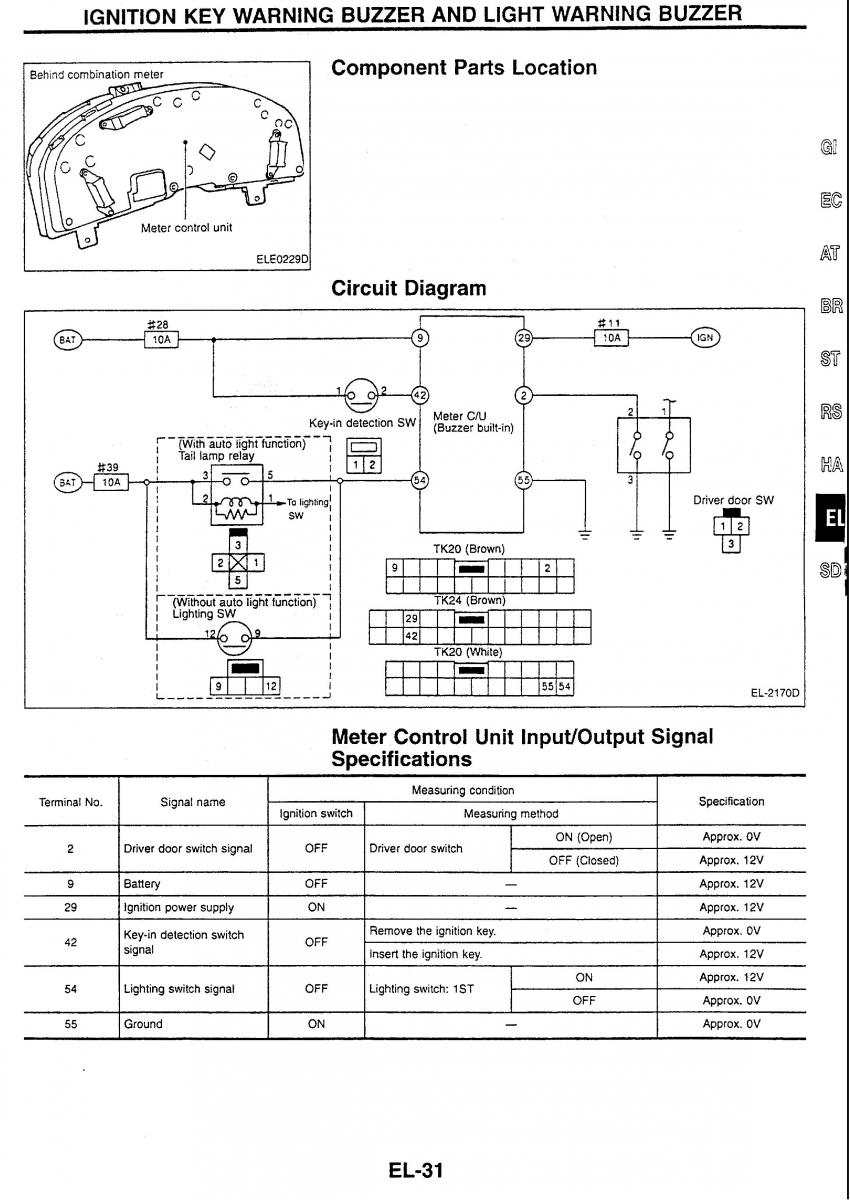

IGNITION KEY WARNING BUZZER AND LIGHT WARNING BUZZER I Behind combination meter Component Parts Location Meter control unit J Circuit Diagram Meter Control Unit InputlOutput Signal Specifications Terminal No. Signal name Measuring condition Specification Ignition switch I Measuring method Driver door switch signal OFF Driver door switch ON (Open) Approx. OV OFF (Closed) Approx. 12V 29 Ignition power supply ON Approx. 12V 42 Key-in detection switch 1 OFF Remove the ignition key. Approx. OV signal Insert the ignition key. Approx. 12V I 54 Lighting switch signal OFF Lighting switch: 1 ST ON Approx. 12V - OFF Approx. OV 55 Ground ON Approx. OV
