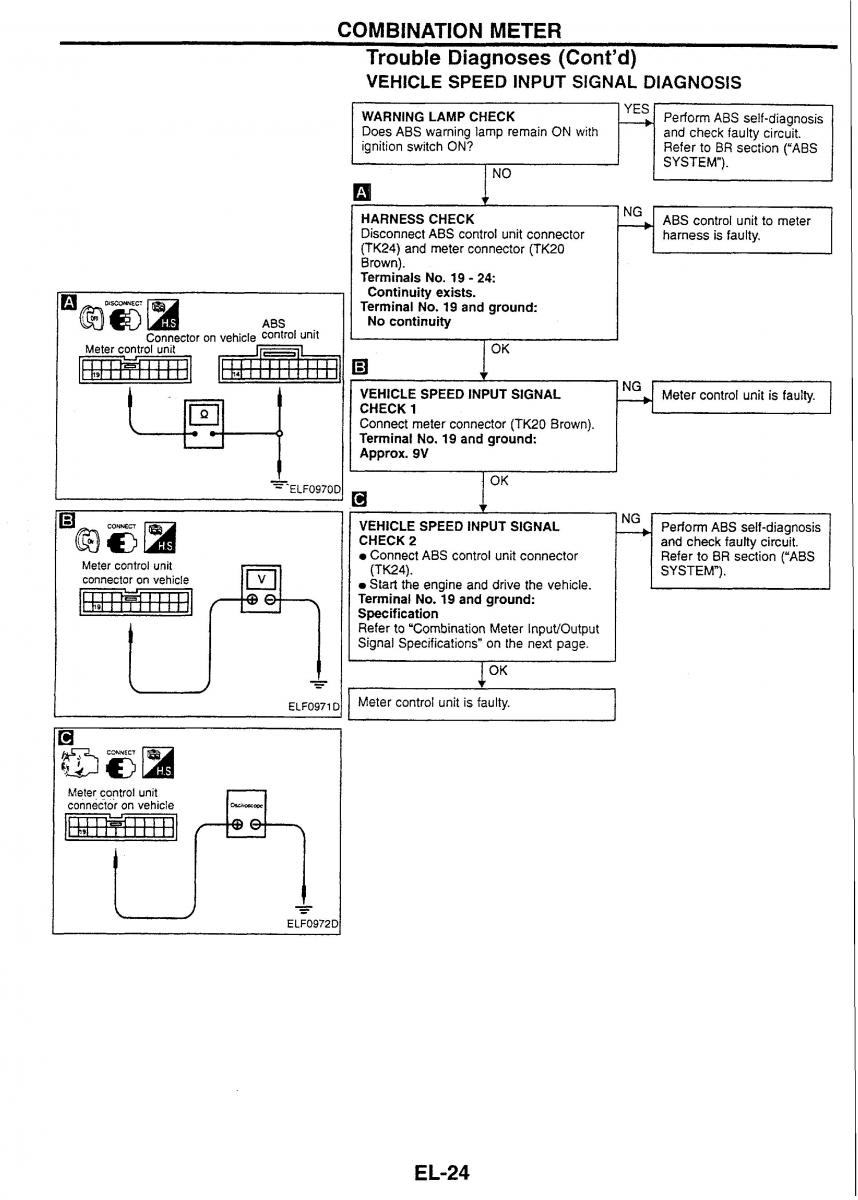

COMBINATION METER Trouble Diagnoses (Cont'd) VEHICLE SPEED INPUT SIGNAL DIAGNOSIS WARNING LAMP CHECK Perform ABS self-diagnosis Does ABS warning lamp remain ON with and check faulty circuit. ignition switch ON? Refer to BR section ("ABS . -- SYSTEMn). I I NG+' HARNESS CHECK ' ABS control unit to meter Disconnect ABS control unit connector harness is faulty. (TK24) and meter connector (TK20 Brown). Terminals No. 19 - 24: Continuity exists. Terminal No. 19 and ground: ABS I No continuity I Connector OK El f VEHICLE SPEED INPUT SIGNAL Meter control unit is faulty. CHECK 1 '2 Connect meter connector (TK20 Brown). Terminal No. 19 and around: I Approx. 9V " - OK = 'ELF0970D r9 El v VEHICLE SPEED INPUT SIGNAL Pelform ABS self-diagnosis CHECK 2 5' @EM Connect ABS control unit connector and check faulty circuit. Meter control unit (TK24). Refer to BR section ("ABS connector on vehicle rn Start the engine and drive the vehicle. SYSTEMn). rm-1 ffee Terminal No. 19 and ground: Specification 1 Refer to "Combination Meter InpuffOutput Signal Specificationsn on the next page. - OK L / - - ELFo971D Meter control unit is faulty. - Meter control unit connector on vehicle
