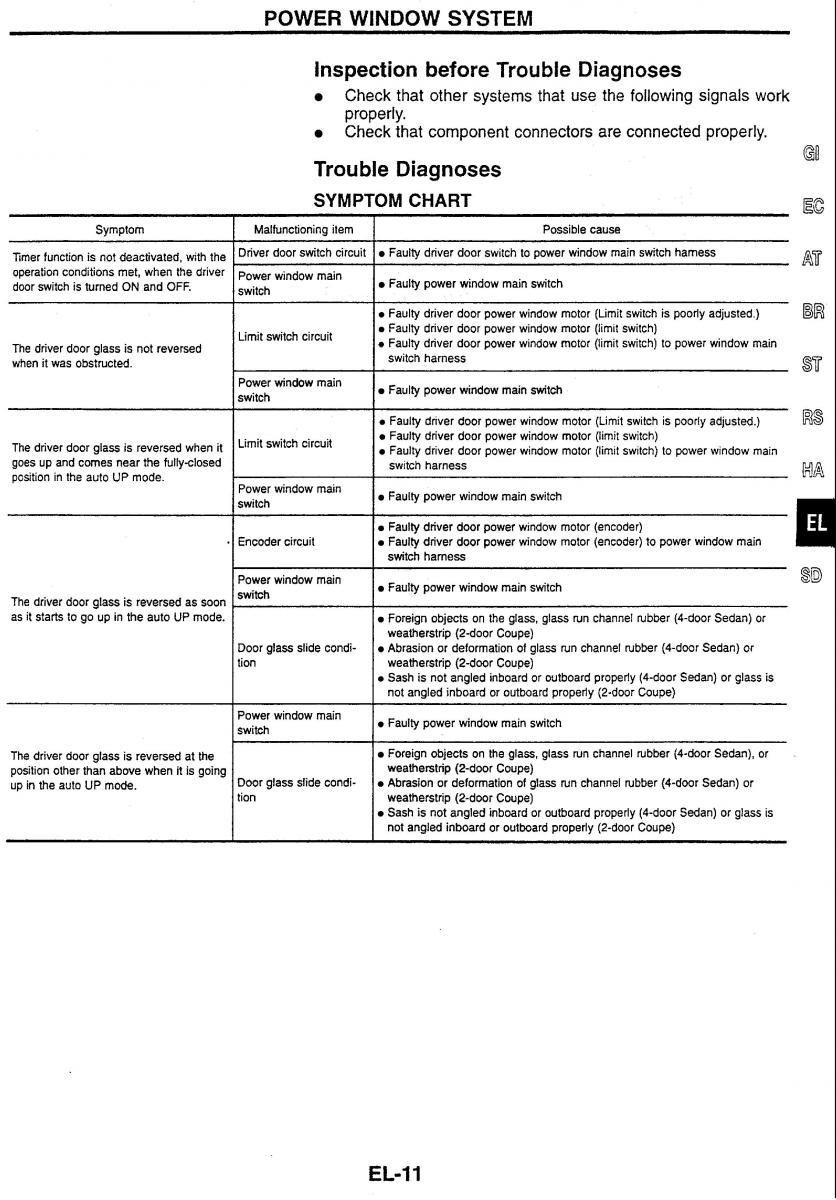

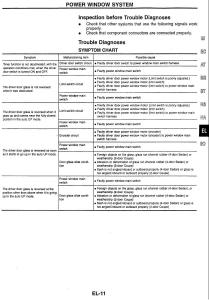

POWER WINDOW SYSTEM
Inspection before Trouble Diagnoses
Check that other systems that use the following signals work
properly.
Check that component connectors are connected properly.
Trouble Diagnoses
SYMPTOM CHART @
Possible cause
Timer function is not deactivated, with the Faulty driver door switch to power window main switch harness AT
operation conditions met, when the driver Faulty power window main switch
door switch is turned ON and OFF. switch
Faulty driver door power window motor (Limit switch is poorly adjusted.) BR
Limit switch circuit Faulty driver door power window motor (limit switch)
The driver door glass is not reversed 0 Faulty driver door power window motor (limit switch) to power window main
when it was obstructed. switch harness 87'
Faulty power window main ~Mtch
0 Faulty driver door power window motor (Limit switch is poorly adjusted.) R8
The driver door glass is reversed when it Limit switch circuit Faulty driver door power window motor (limit switch)
goes up and comes near the fullyclosed Faulty driver door power window motor (limit switch) to power window main
position in the auto UP mode. switch harness HA
Faulty power window main switch
Faulty driver door power window motor (encoder)
Encoder circuit Faulty driver door power window motor (encoder) to power window main
I switch harness
Power window main Faulty power window main switch
The driver door glass is reversed as soon switch
as it starts to go up in the auto UP mode. Foreign objects on the glass, glass run channel rubber (4-door Sedan) or
weatherstrip (2-door Coupe)
I Door glass slide condi- Abrasion or deformation of glass run channel rubber (4-door Sedan) or
tion weatherstrip (2-door Coupe)
Sash is not angled inboard or outboard properly (4-door Sedan) or glass is
not angled inboard or outboard properly (2-door Coupe)
Power window main Faulty power window main switch
The driver door glass is reversed at the Foreign objects on the glass, glass run channel rubber (4-door Sedan), or
position other than above when it is going weatherstrip (2-door Coupe)
up in the auto UP mode. I Door glass slide condi- Abrasion or deformation of glass run channel rubber (4-door Sedan) or
tion weatherstrip (2-door Coupe)
Sash is not angled inboard or outboard properly (4-door Sedan) or glass is
not angled inboard or outboard properly (2-door Coupe)
