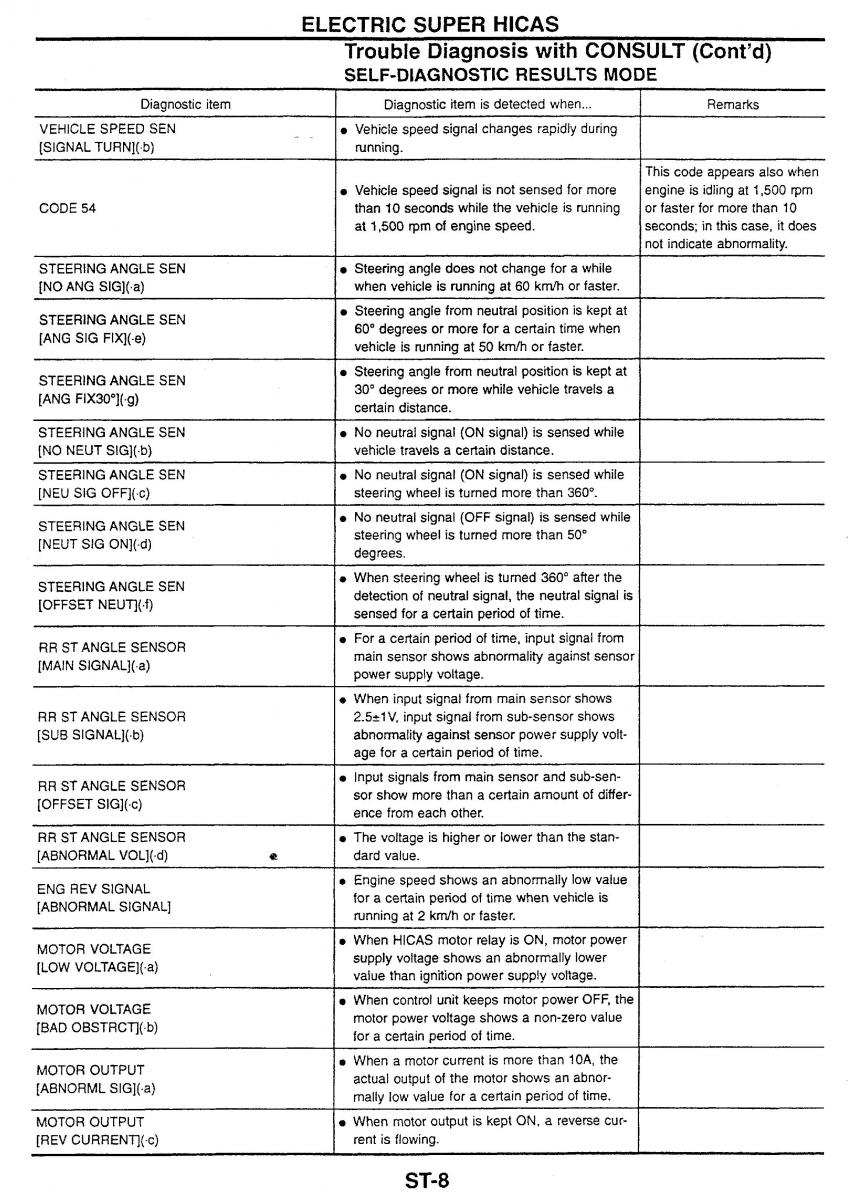

ELECTRIC SUPER HICAS Trouble Diagnosis with CONSULT (Cont'd) SELF-DIAGNOSTIC RESULTS MOI -- - - - Diagnostic item Diagnostic item is detected when . I Remarks VEHICLE SPEED SEN Vehicle speed signal changes rapidly during [SIGNAL TURN](.b) running. I This code appears also when Vehicle speed signal is not sensed for more engine is idling at 1,500 rpm CODE 54 than 10 seconds while the vehicle is running or faster for more than 10 at 1,500 rpm of engine speed. , seconds; in this case, it does not indicate abnormality. STEERING ANGLE SEN Steering angle does not change for a while [NO ANG SIG](.a) when vehicle is running at 60 km,h or faster. STEERING ANGLE SEN Steering angle from neutral position is kept at [ANG SIG FIX](.e) 60" degrees or more for a certain time when vehicle is running at 50 km/h or faster. STEERING ANGLE SEN Steering angle from neutral position is kept at [ANG F1X3O0](-g) 30" degrees or more while vehicle travels a certain distance. STEERING ANGLE SEN No neutral signal (ON signal) is sensed while [NO NEUT SIG](.b) vehicle travels a certain distance. STEERING ANGLE SEN No neutral signal (ON signal) is sensed while [NEU SIG OFF](.c) steering wheel is turned more than 360'. STEERING ANGLE SEN No neutral signal (OFF signal) is sensed while [NEUT SIG ON](.d) steering wheel is turned more than 50" degrees. - - -- STEERING ANGLE SEN a When steering wheel is turned 360" after the [OFFSET NEUTJ(.f) detection of neutral signal, the neutral signal is sensed for a certain period of time. RR ST ANGLE SENSOR For a certain period of time, input signal from [MAIN SIGNAL](.a) main sensor shows abnormality against sensor power supply voltage. a When input signal from main sefisor shows RR ST ANGLE SENSOR 2.5+1 V, input signal from sub-sensor shows [SUB SIGNALJ(.b) abnormality against sensor power supply volt- age for a certain period of time. - - RR ST ANGLE SENSOR Input signals from main sensor and sub-sen- [OFFSET SIG](-C) sor show more than a certain amount of differ- ence from each other. RR ST ANGLE SENSOR The voltage is higher or lower than the stan- [ABNORMAL VOL](.d) r dard value. ENG REV SIGNAL a Engine speed shows an abnormally low value [ABNORMAL SIGNAL] for a certain period of time when vehicle is running at 2 krnlh or faster. MOTOR VOLTAGE a When HlCAS motor relay is ON, motor power [LOW VOLTAGE](-a) supply voltage shows an abnormally lower value than ignition power supply voltage. MOTOR VOLTAGE When control unit keeps motor power OFF, the [BAD OBSTRCT](.b) motor power voltage shows a non-zero value for a certain period of time. MOTOR OUTPUT When a motor current is more than IOA, the [ABNORML SIG](.a) actual output of the motor shows an abnor- mally low value for a certain period of time. - - MOTOR OUTPUT When motor output is kept ON, a reverse cur- [REV CURRENTJ(-C) rent is flowing.
