text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

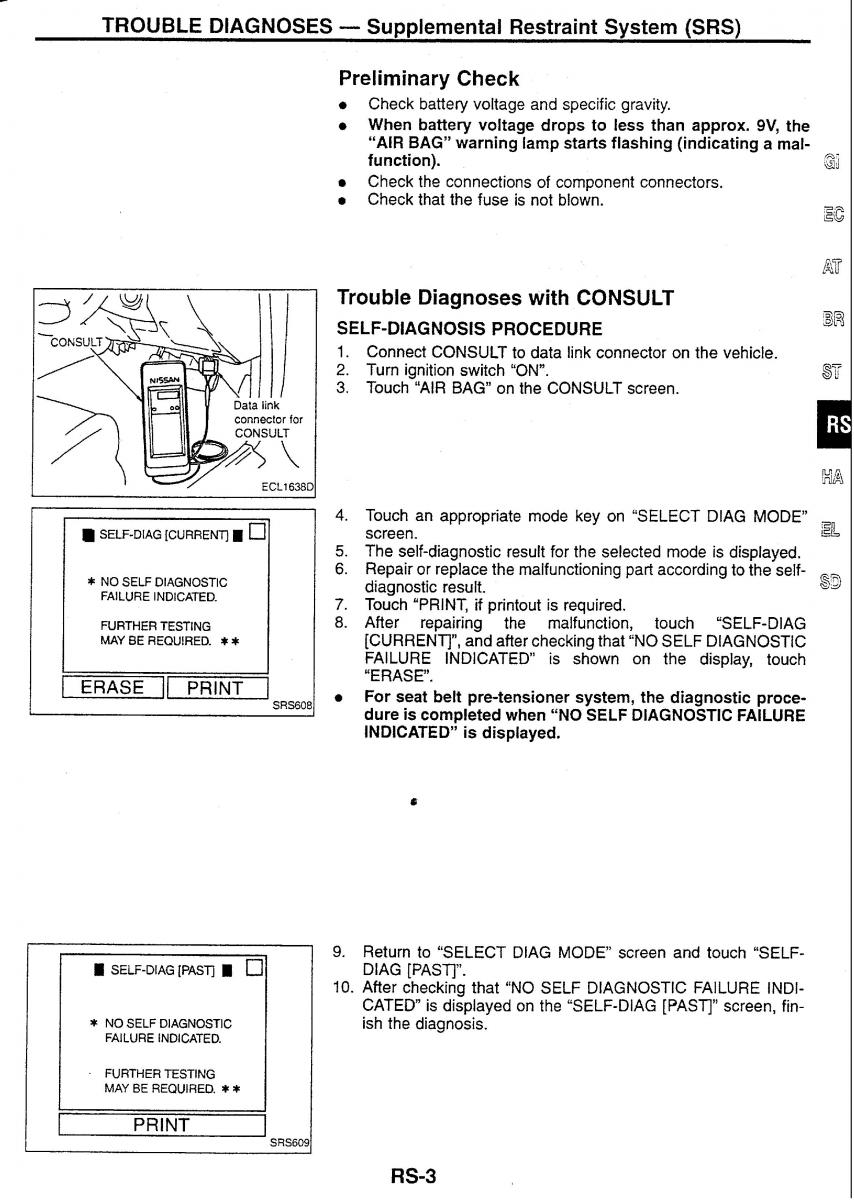

TROUBLE DIAGNOSES - Su~plemental Restraint Svstem (SRS) Preliminary Check Check battery voltage and specific gravity. When battery voltage drops to less than approx. 9V, the "AIR BAG" warning lamp starts flashing (indicating a mal- function). Gj Check the connections of component connectors. Check that the fuse is not blown. 3F - Trouble Diagnoses with CONSULT SELF-DIAGNOSIS PROCEDURE Connect CONSULT to data link connector on the vehicle. Turn ignition switch "ON". 83 Touch "AIR BAG" on the CONSULT screen. connector for Touch an appropriate mode key on "SELECT DlAG MODE" gL SELF-DlAG [CURRENT] C screen. The self-diagnostic result for the selected mode is displayed. * NO SELF DIAGNOSTIC Repair or replace the malfunctioning part according to the self- FAILURE INDICATED. diagnostic result. 89 Touch "PRINT, if printout is required. FURTHER TESTING After repairing the malfunction, touch "SELF-DIAG MAY BE REQUIRED. $ * [CURRENT]", and after checking that "NO SELF DIAGNOSTIC FAILURE INDICATED" is shown on the display, touch -1 PRINT "ERASE. For seat belt pre-tensioner system, the diagnostic proce- dure is completed when "NO SELF DIAGNOSTIC FAILURE INDICATED" is displayed. 9. Return to "SELECT DlAG MODE" screen and touch "SELF- DlAG [PAST]". 10. After checking that "NO SELF DIAGNOSTIC FAILURE INDI- * NO SELF DIAGNOSTIC CATED" is displayed on the "SELF-DIAG [PAST]" screen, fin- ish the diagnosis. FAILURE INDICATED. FURTHER TESTING MAY BE REQUIRED. * * t PRINT SRS609
