text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

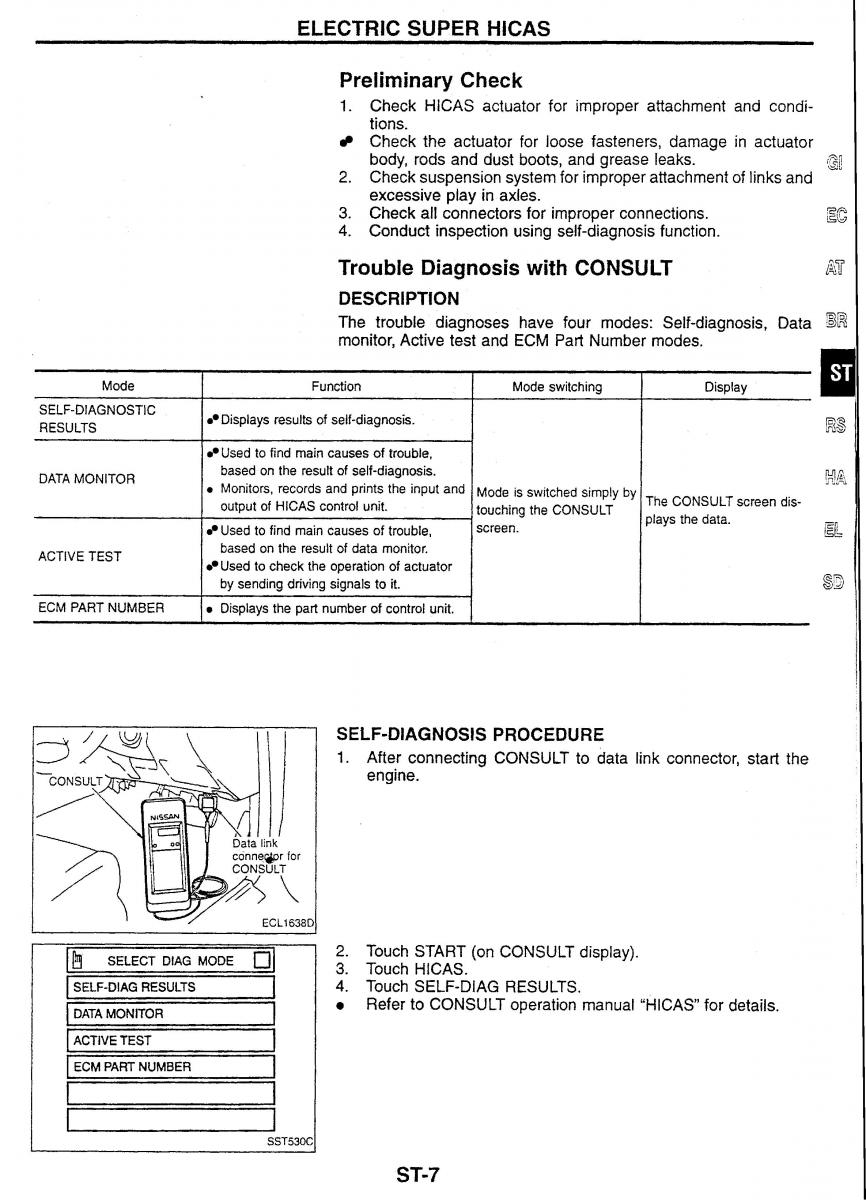

ELECTRIC SUPER HICAS Preliminary Check 1. Check HICAS actuator for improper attachment and condi- tions. Check the actuator for loose fasteners, damage in actuator body, rods and dust boots, and grease leaks. @ 2. Check suspension system for improper attachment of links and excessive play in axles. 3. Check all connectors for improper connections. yp 4. Conduct inspection using self-diagnosis function. 'SU Trouble Diagnosis with CONSULT AT DESCRIPTION The trouble diagnoses have four modes: Self-diagnosis, Data B8 monitor, Active test and ECM Part Number modes. Mode Function Mode switching Display SELF-D'AGNoSTIC Displays results of self-diagnosis. RS RESULTS Used to find main causes of trouble, DATA MONITOR based on the result of self-diagnosis. Qkl 0 Monitors, records and prints the input and Mode is switched simply by The CONSULT screen dis- output of HICAS control unit. touching the CONSULT plays the data. Used to find main causes of trouble, screen. EL ACTIVE TEST based on the result of data monitor. Used to check the operation of actuator by sending driving signals to it. ECM PART NUMBER a Displays the part number of control unit. SELF-DIAGNOSIS PROCEDURE After connecting CONSULT to data link connector, start the engine. $ SELECT DlAG MODE u] Touch START (on CONSULT display). I r Touch HICAS. SELF-DIAG RESULTS I Touch SELF-DIAG RESULTS. DATA MONITOR + Refer to CONSULT operation manual iiHICASJ' for details. ACTIVE TEST ECM PART NUMBER u
