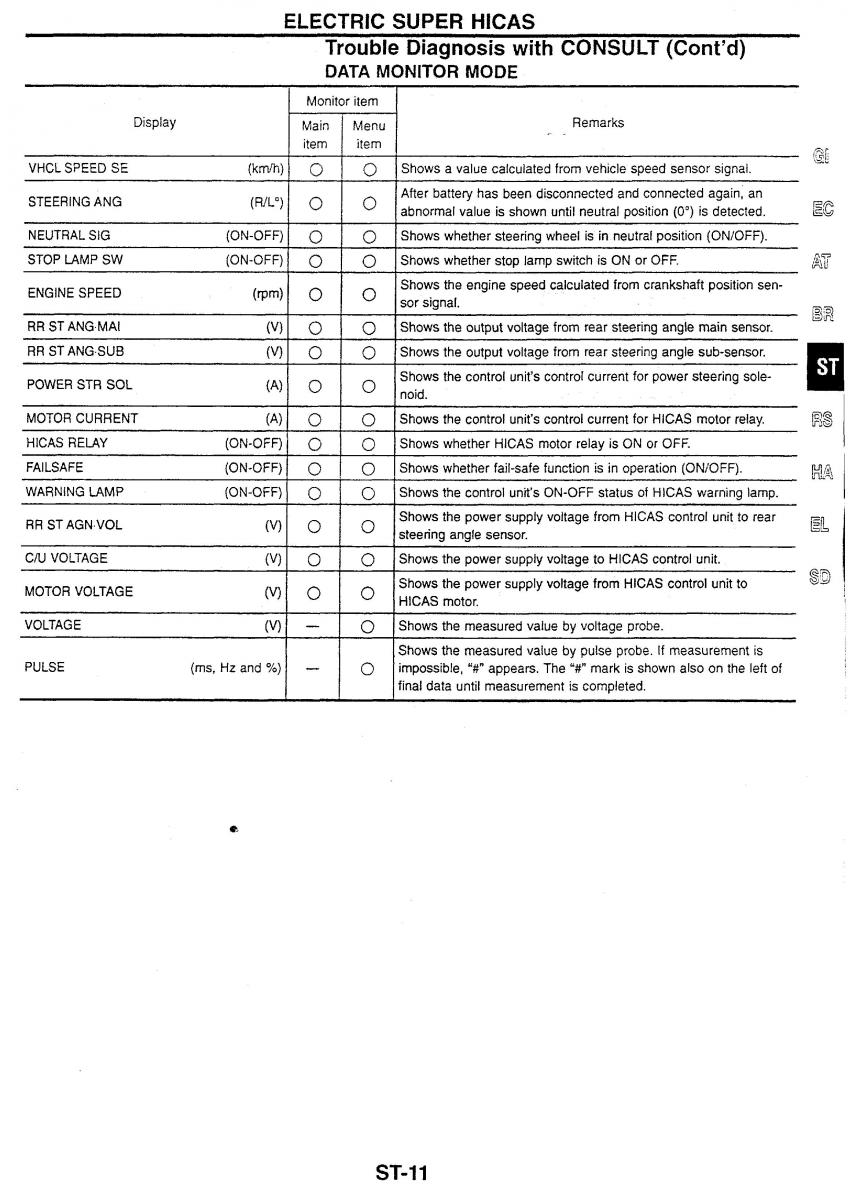

ELECTRIC SUPER HtCAS Trouble Diagnosis with CONSULT (Cont'd) DATA MONITOR MODE 1 Monitor item ( Display Main Menu - - Remarks / item I item 1 VHCL SPEED SE (kmh) 1 0 I 0 I Shows a value calculated from vehicle speed sensor signal. STEERING ANG After battery has been disconnected and connected again, an (0") is detected. abnormal value is shown until neutral position NEUTRAL SIG (ON-OFF) ( 0 ( 0 I Shows whether steering wheel is in neutral position (ONIOFF). STOP LAMP SW (ON-OFF) I 0 I 0 I Shows whether stop lamp switch is ON or OFF. ENGINE SPEED Shows the engine speed caicuiated from crankshaft position sen- sor signal. 1 I I RR ST ANG.MAI (V) I 0 I 0 I Shows the output voltage from rear steering angle main sensor. RR ST ANG.SUB (V) 0 0 Shows the output voltage from rear steering angle sub-sensor. POWER STR SOL Shows the control unit's control current for power steering sole- (') ' ' 1 noid. -- - - -- - - MOTOR CURRENT (A) I 0 I 0 I shows the control unit's control current for HICAS motor relay. HlCAS RELAY (ON-OFF) / 0 I 0 I Shows whether HlCAS motor relay is ON or OFF. FAILSAFE (ON-OFF) I 0 I 0 I Shows whether fail-safe function is in operation (ONIOFF). WARNING LAMP (ON-OFF) I Q I 0 ) Shows the control unit3 ON-OFF status of HlCAS warning lamp. Shows the power supply voltage from HICAS control unit to rear steering angle sensor. CIU VOLTAGE (V) ( 0 I 0 I Shows the power supply voltage to HICAS control unit. MOTOR VOLTAGE Shows the power supply voltage from HICAS control unit to HlCAS motor. - -- - -- VOLTAGE (V) I - I 0 I Shows the measured value by voltage probe. Shows the measured value by pulse probe. If measurement is PULSE (mi, Hi and %I 1 - / 0 1 impossible, "#" appears. The "#" mark is shown also on the left of final data until measurement is completed.
