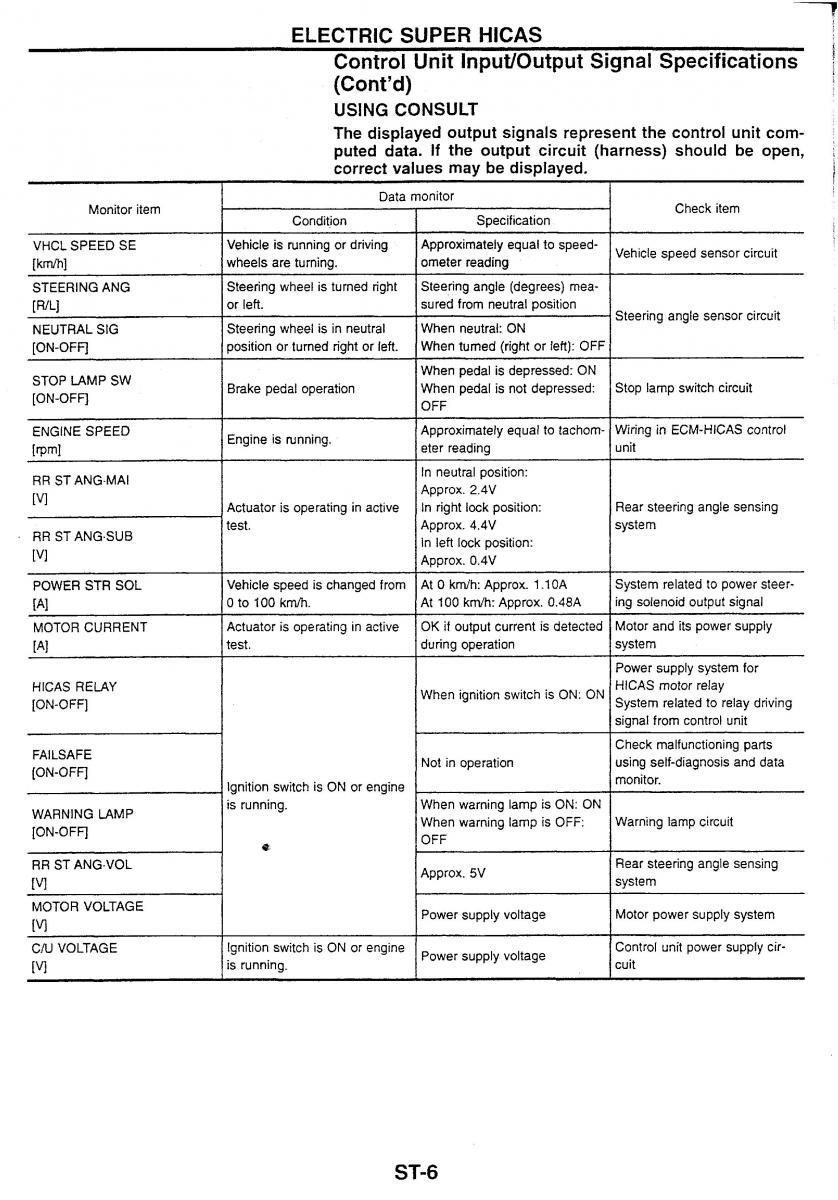

ELECTRIC SUPER HlCAS Control Unit Input/Output Signal Specifications (Cont'd) USING CONSULT The displayed output signals represent the control unit com- puted data. If the output circuit (harness) should be open, correct values may be displayed. Monitor item Data monitor Check item Condition I Specification VHCL SPEED SE Vehicle is running or driving Approximately equal to speed- Vehicle speed sensor circuit [km/hj wheels are turning. ometer reading -- STEERING ANG Steering wheel is turned right Steering angle (degrees) mea- [R/Ll or left. sured from neutral position Steering angle sensor circuit NEUTRAL SIG Steering wheel is in neutral When neutral: ON [ON-OFF] position or turned right or left. When turned (right or left): OFF STOP LAMP SW When pedal is depressed: ON [ON-OFF] Brake pedal operation When pedal is not depressed: Stop lamp switch circuit I OFF ENGINE SPEED Engine is running. Approximately equal to tachom- Wiring in ECM-HICAS control [r~ml eter reading unit In neutral position: 1"l Approx. 2.4V I Actuator is operating in active I In right lock position: Rear steering angle sensing test. Approx. 4.4V system in left lock position: Approx. 0.4V POWER STR SOL Vehicle speed is changed from At 0 km/h: Approx. 1.1 0A System related to power steer- [A1 0 to 100 krnh. At 100 krn/h: Approx. 0.48A ing solenoid output signal MOTOR CURRENT Actuator is operating in active OK if output current is detected Motor and its power supply PI test. during operation system I Power supply system for HlCAS RELAY When ignition switch is ON: ON HICAS motor relay [ON-OFF] System related to relay driving 1 signal from control unit FAILSAFE Check malfunctioning parts [ON-OFF] Not in operation using self-diagnosis and data Ignition switch is ON or engine monitor. WARNING LAMP is running. When warning lamp is ON: ON [ON-OFF] When warning lamp is OFF: Warning lamp circuit OFF RR ST ANG-VOL Approx. 5V Rear steering angle sensing [Vl system MOTOR VOLTAGE Power supply voltage Motor power supply system [vl C/U VOLTAGE Ignition switch is ON or engine Power supply voltage Control unit power supply cir- [VI is running. cuit
