text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

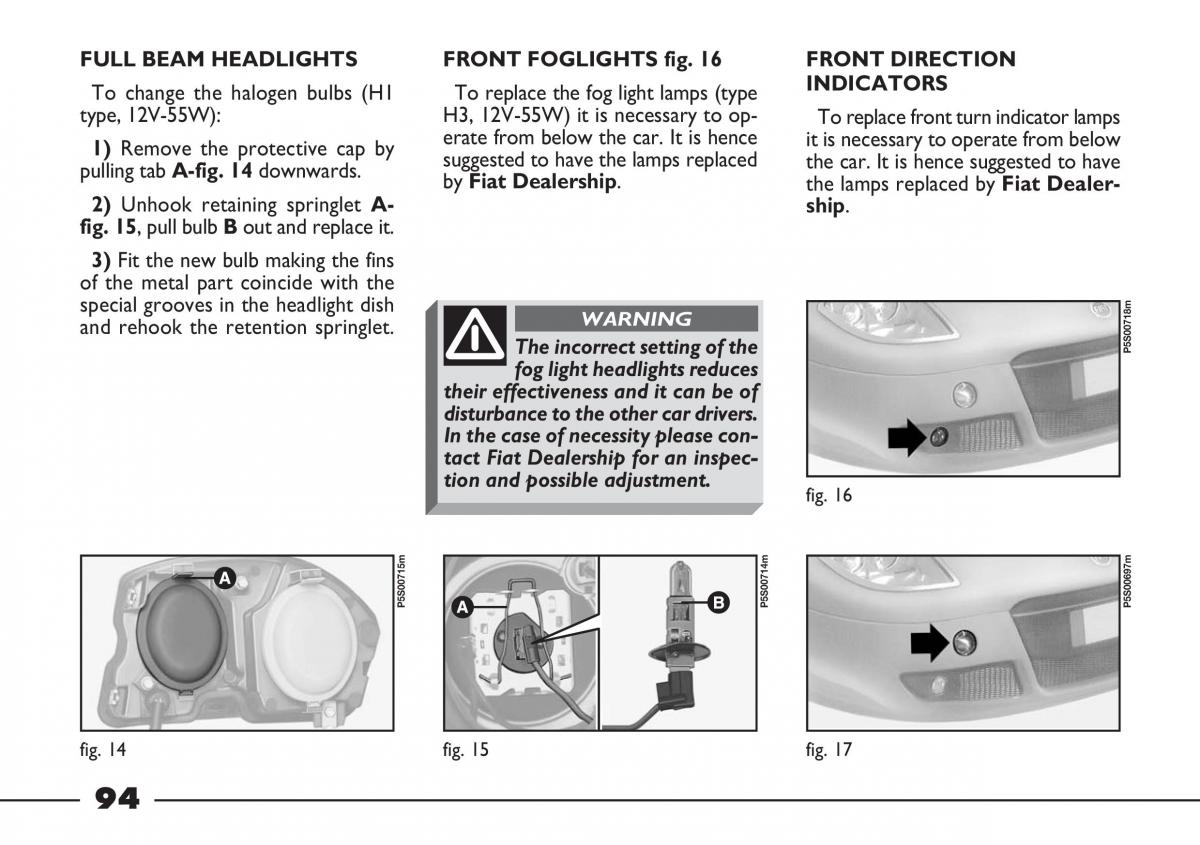

FULL BEAM HEADLIGHTS FRONT FOGLIGHTS fig. 16 FRONT DIRECTION To change the halogen bulbs (H1To replace the fog light lamps (type INDICATORS type, 12V-55W): H3, 12V-55W) it is necessary to op-To replace front turn indicator lamps erate from below the car. It is hence it is necessary to operate from below 1) Remove the protective cap by pulling tab A-fig. 14 downwards. suggested to have the lamps replaced the car. It is hence suggested to have by Fiat Dealership . the lamps replaced by Fiat Dealer- 2) Unhook retaining springlet A- ship. fig. 15, pull bulb Bout and replace it. 3) Fit the new bulb making the fins of the metal part coincide with the special grooves in the headlight dish WARNING and rehook the retention springlet. The incorrect setting of the P5S00718m fog light headlights reduces their effectiveness and it can be of disturbance to the other car drivers. In the case of necessity please con- tact Fiat Dealership for an inspec- tion and possible adjustment. fig. 16 P5S00715m P5S00714m P5S00697m fig. 14 fig. 15 fig. 17 94
