text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

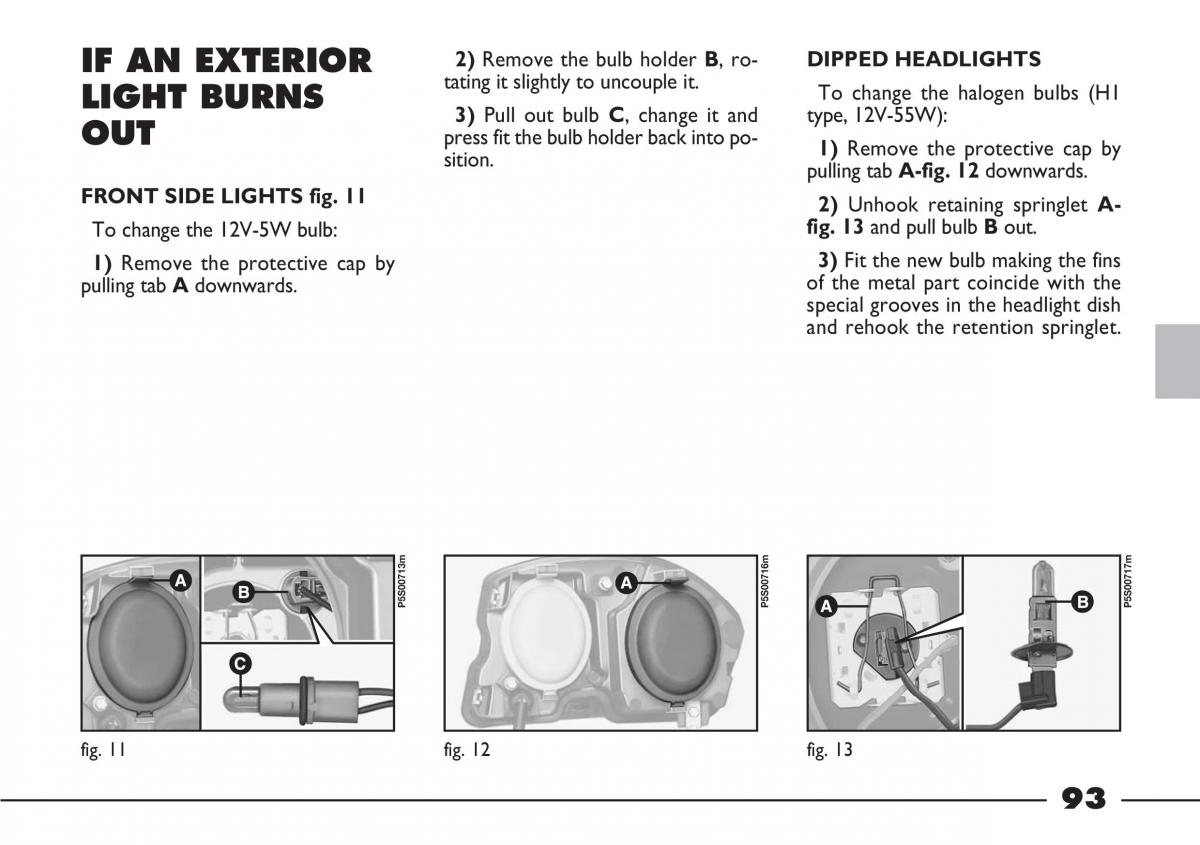

IF AN EXTERIOR 2) Remove the bulb holder B, ro- DIPPED HEADLIGHTS LIGHT BURNS tating it slightly to uncouple it. To change the halogen bulbs (H1 3) Pull out bulb C, change it andtype, 12V-55W): OUT press fit the bulb holder back into po- 1) Remove the protective cap by sition. pulling tab A-fig. 12 downwards. FRONT SIDE LIGHTS fig. 11 2) Unhook retaining springlet A- To change the 12V-5W bulb: fig. 13 and pull bulb B out. 1) Remove the protective cap by 3) Fit the new bulb making the fins pulling tab A downwards. of the metal part coincide with the special grooves in the headlight dish and rehook the retention springlet. P5S00713m P5S00716m P5S00717m fig. 11 fig. 12 fig. 13 93
