text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

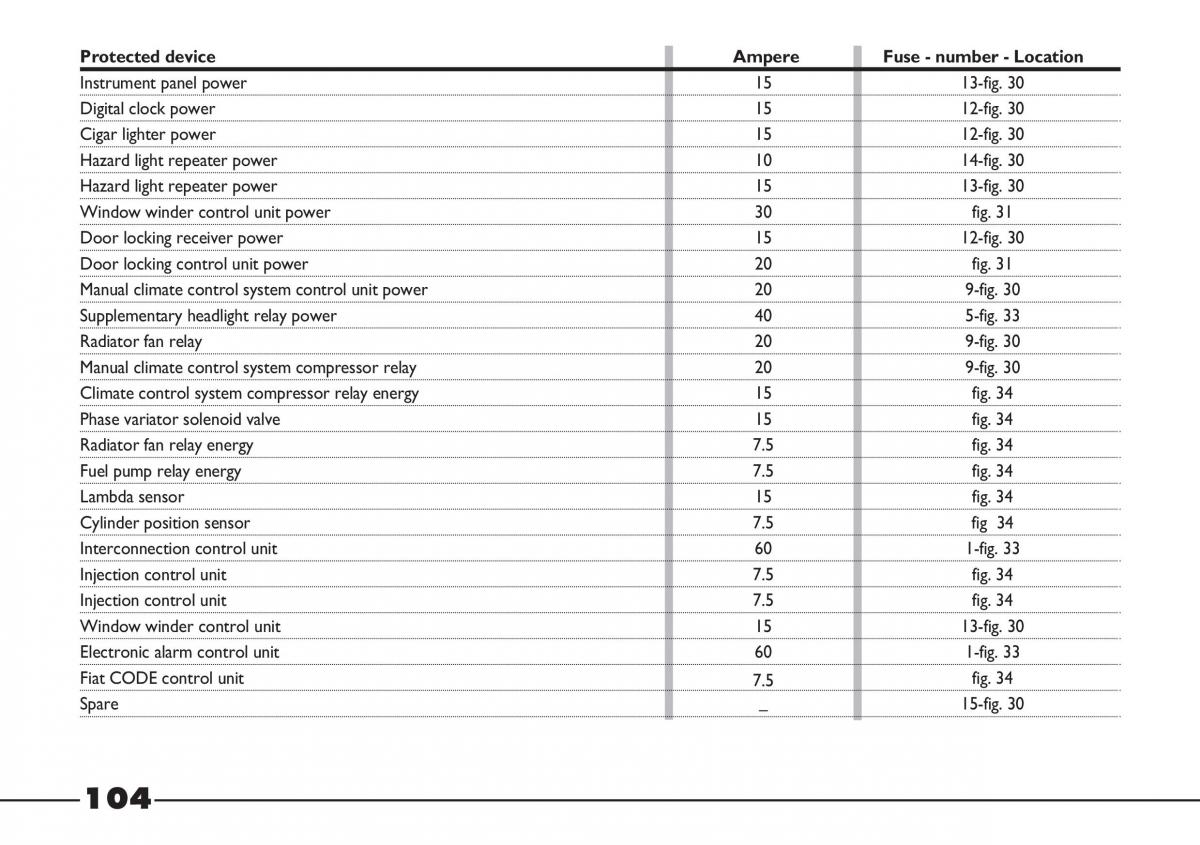

Protected device Ampere Fuse - number - Location Instrument panel power 15 13-fig. 30 Digital clock power 15 12-fig. 30 Cigar lighter power 15 12-fig. 30 Hazard light repeater power 10 14-fig. 30 Hazard light repeater power 15 13-fig. 30 Window winder control unit power 30 fig. 31 Door locking receiver power 15 12-fig. 30 Door locking control unit power 20 fig. 31 Manual climate control system control unit power 209-fig. 30 Supplementary headlight relay power 40 5-fig. 33 Radiator fan relay 20 9-fig. 30 Manual climate control system compressor relay 209-fig. 30 Climate control system compressor relay energy 15 fig. 34 Phase variator solenoid valve 15 fig. 34 Radiator fan relay energy 7.5 fig. 34 Fuel pump relay energy 7.5 fig. 34 Lambda sensor 15 fig. 34 Cylinder position sensor 7.5 fig 34 Interconnection control unit 60 1-fig. 33 Injection control unit 7.5 fig. 34 Injection control unit 7.5 fig. 34 Window winder control unit 15 13-fig. 30 Electronic alarm control unit 60 1-fig. 33 Fiat CODE control unit 7.5 fig. 34 Spare – 15-fig. 30 104
