text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

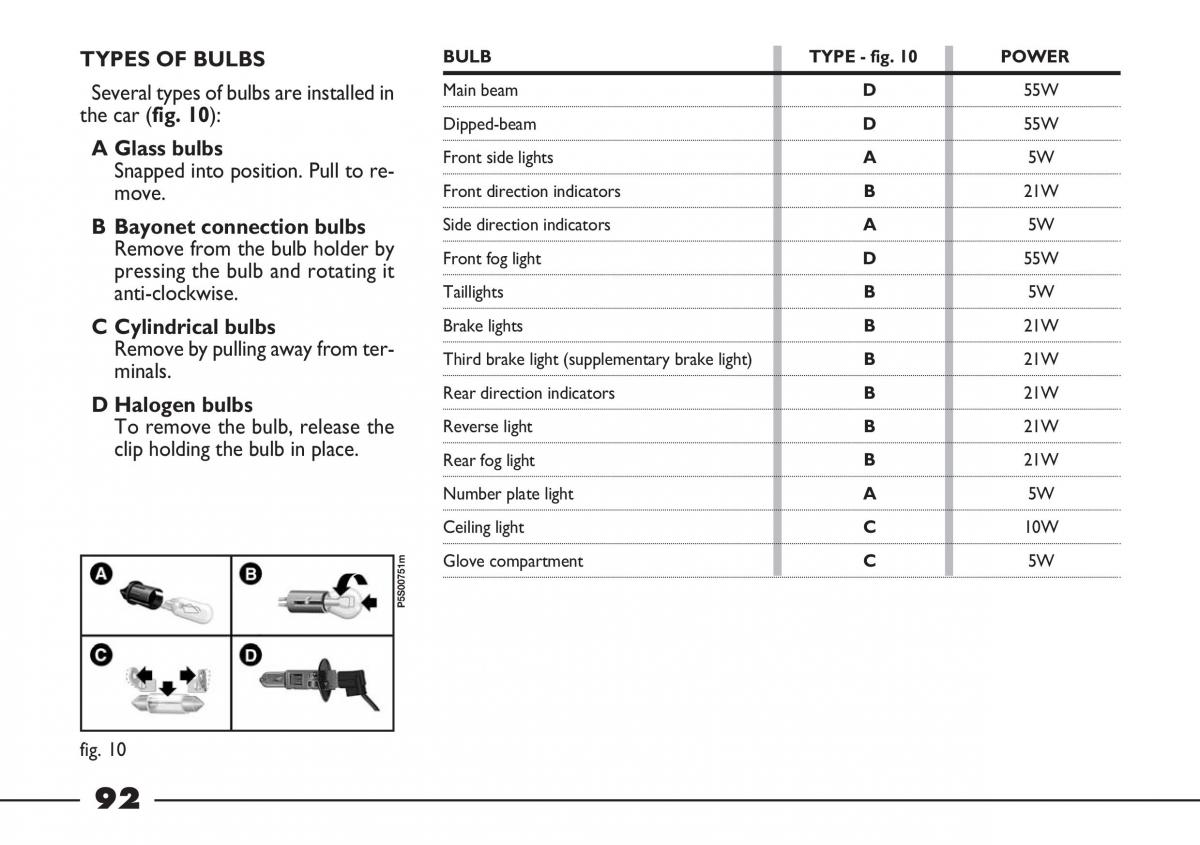

TYPES OF BULBS BULB TYPE - fig. 10 POWER Several types of bulbs are installed in Main beam D 55W the car (fig. 10): Dipped-beam D 55W AGlass bulbs Front side lights A 5W Snapped into position. Pull to re- move. Front direction indicators B 21W B Bayonet connection bulbs Side direction indicators A 5W Remove from the bulb holder by Front fog light D 55W pressing the bulb and rotating it anti-clockwise. Taillights B 5W CCylindrical bulbs Brake lights B 21W Remove by pulling away from ter- Third brake light (supplementary brake light) B 21W minals. DHalogen bulbs Rear direction indicators B 21W Reverse light B 21W To remove the bulb, release the clip holding the bulb in place. Rear fog light B 21W Number plate light A 5W Ceiling light C 10W Glove compartment C 5W P5S00751m fig. 10 92
