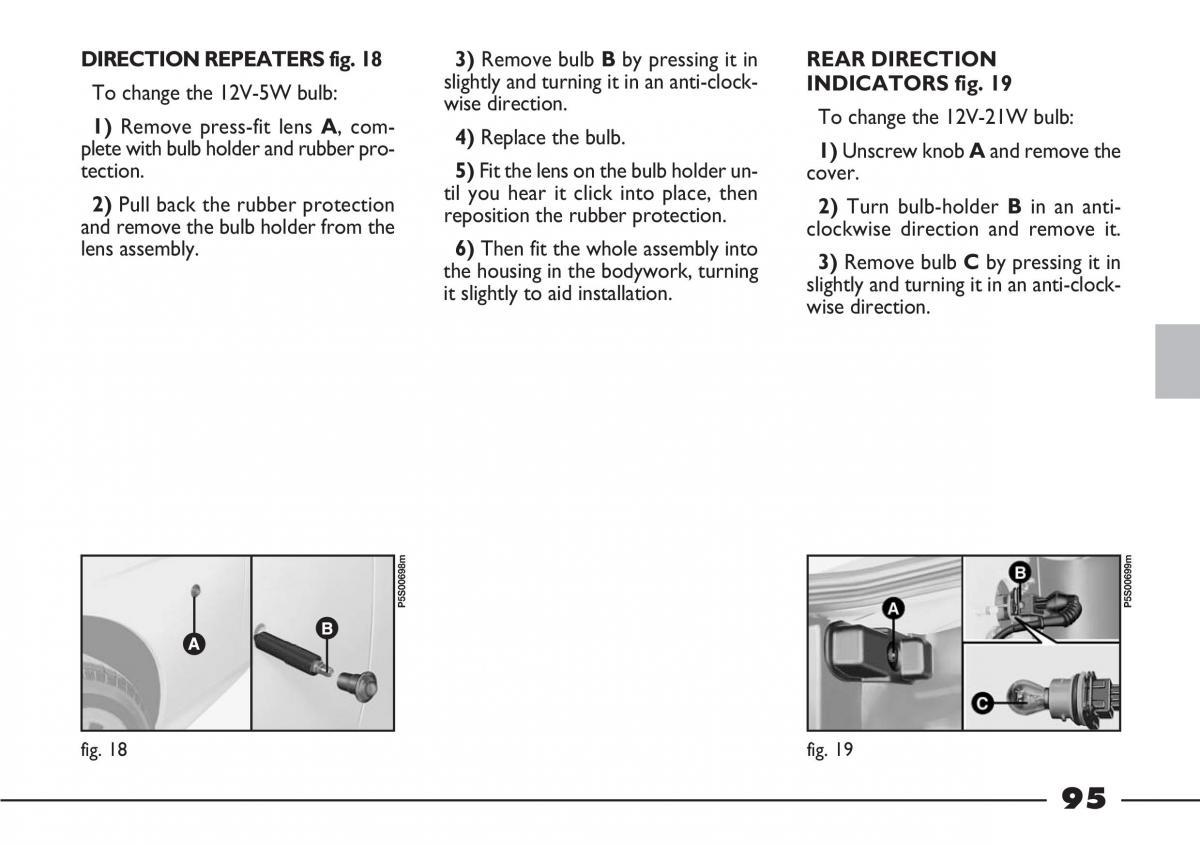

DIRECTION REPEATERS fig. 18 3) Remove bulb B by pressing it in REAR DIRECTION
To change the 12V-5W bulb: slightly and turning it in an anti-clock- INDICATORS fig. 19
wise direction. To change the 12V-21W bulb:
1) Remove press-fit lens A, com- 4) Replace the bulb.
plete with bulb holder and rubber pro- 1) Unscrew knob Aand remove the
tection. 5) Fit the lens on the bulb holder un- cover.
til you hear it click into place, then
2) Pull back the rubber protection 2) Turn bulb-holder B in an anti-
and remove the bulb holder from the reposition the rubber protection. clockwise direction and remove it.
lens assembly. 6) Then fit the whole assembly into 3) Remove bulb C by pressing it in
the housing in the bodywork, turning slightly and turning it in an anti-clock-
it slightly to aid installation. wise direction.
P5S00698m P5S00699m
fig. 18 fig. 19
95
