text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

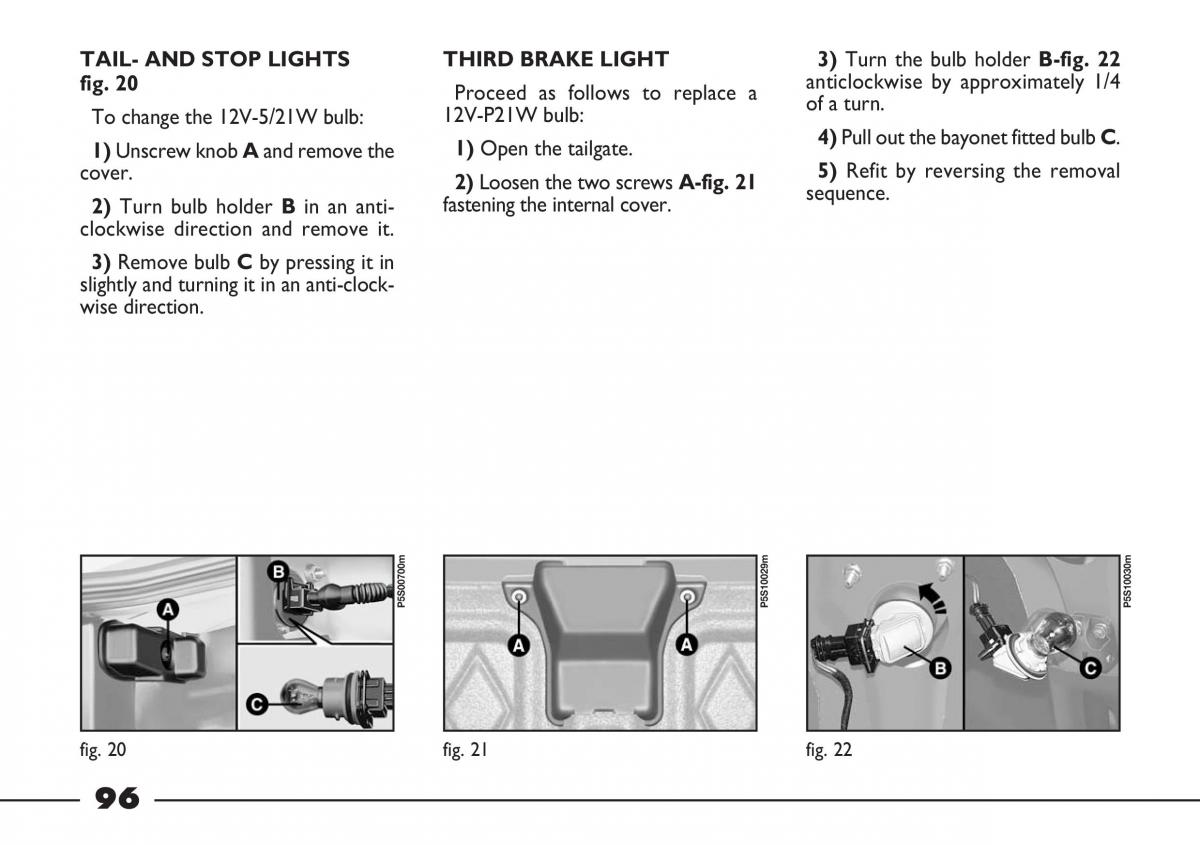

TAIL- AND STOP LIGHTS THIRD BRAKE LIGHT 3) Turn the bulb holder B-fig. 22 fig. 20 anticlockwise by approximately 1/4 Proceed as follows to replace a To change the 12V-5/21W bulb: 12V-P21W bulb: of a turn. 1) Unscrew knob Aand remove the 1) Open the tailgate. 4) Pull out the bayonet fitted bulb C. cover. 2) Loosen the two screws A-fig. 21 5) Refit by reversing the removal 2) Turn bulb holder B in an anti- fastening the internal cover. sequence. clockwise direction and remove it. 3) Remove bulb C by pressing it in slightly and turning it in an anti-clock- wise direction. P5S00700m P5S10029m P5S10030m fig. 20 fig. 21 fig. 22 96
