text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

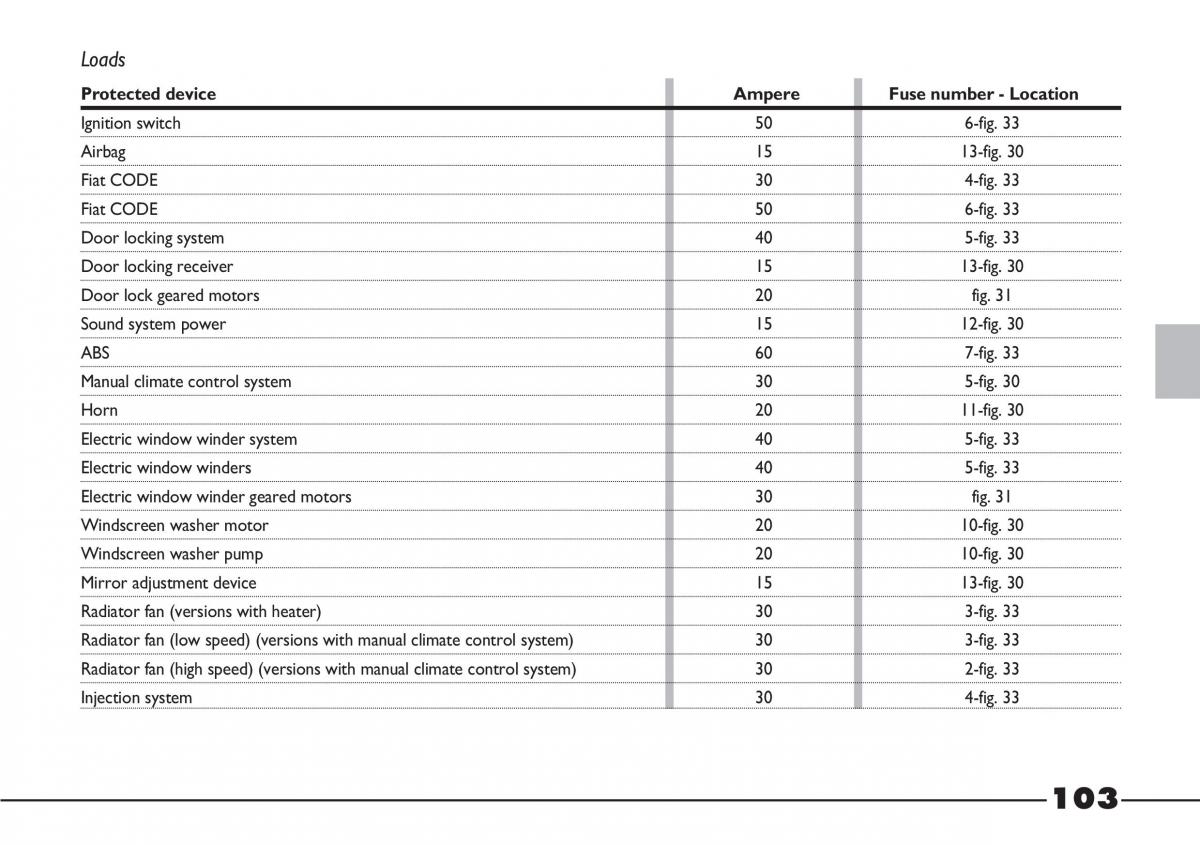

Loads Protected device Ampere Fuse number - Location Ignition switch 50 6-fig. 33 Airbag 15 13-fig. 30 Fiat CODE 30 4-fig. 33 Fiat CODE 50 6-fig. 33 Door locking system 40 5-fig. 33 Door locking receiver 15 13-fig. 30 Door lock geared motors 20 fig. 31 Sound system power 15 12-fig. 30 ABS 60 7-fig. 33 Manual climate control system 30 5-fig. 30 Horn 20 11-fig. 30 Electric window winder system 40 5-fig. 33 Electric window winders 40 5-fig. 33 Electric window winder geared motors 30 fig. 31 Windscreen washer motor 20 10-fig. 30 Windscreen washer pump 20 10-fig. 30 Mirror adjustment device 15 13-fig. 30 Radiator fan (versions with heater) 30 3-fig. 33 Radiator fan (low speed) (versions with manual climate control system)303-fig. 33 Radiator fan (high speed) (versions with manual climate control system)302-fig. 33 Injection system 30 4-fig. 33 103
