PDe GER 7.qxp 17.04.2017 17:30 Page 77

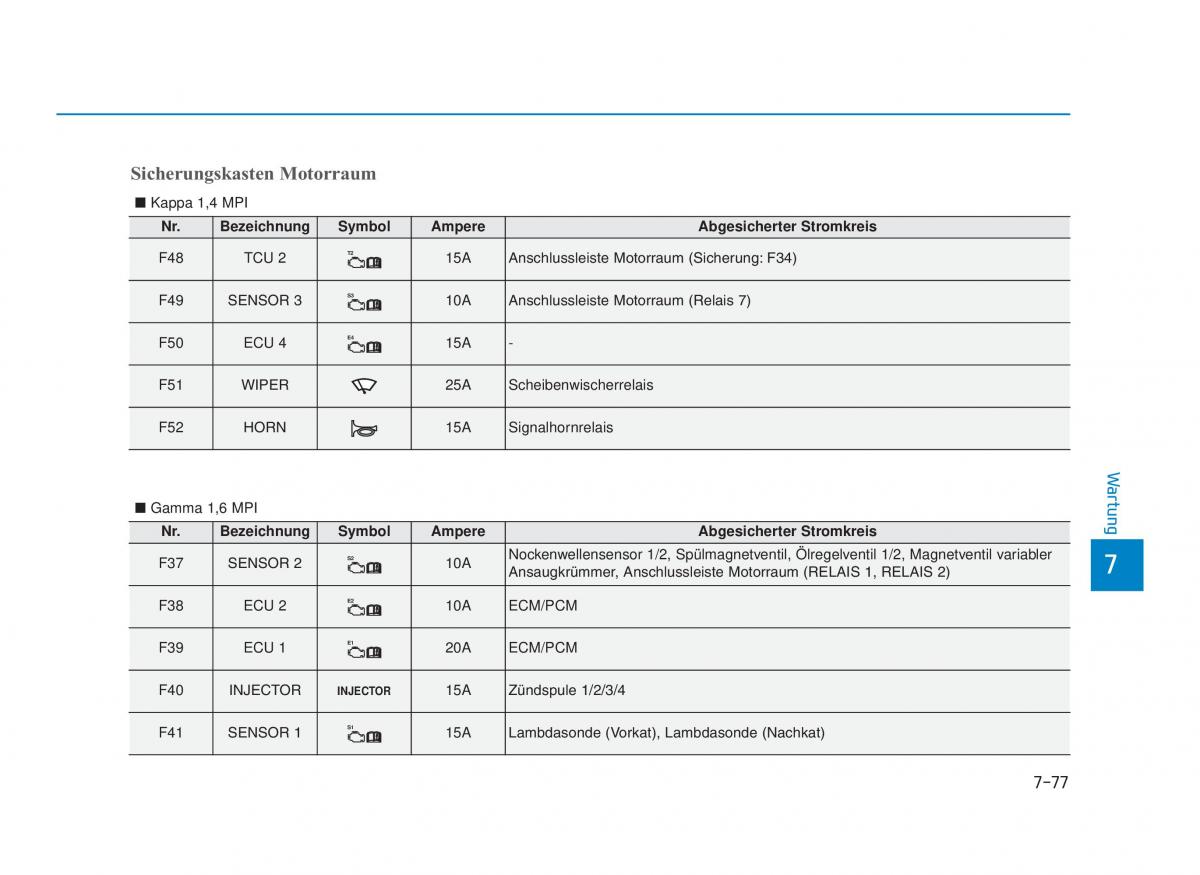

Sicherungskasten Motorraum
■ Kappa 1,4 MPI
Nr. Bezeichnung Symbol Ampere Abgesicherter Stromkreis
F48 TCU 2 T2 15A Anschlussleiste aum Motorr(Sicherung:F34)
F49 SENSOR 3 S3 10A Anschlussleiste aum Motorr(Relais 7)
F50 ECU 4 E4 15A -
F51 WIPER 25A Scheibenwischerrelais
F52 HORN 15A Signalhornrelais
W
■ Gamma 1,6 MPI artung
Nr. Bezeichnung Symbol Ampere Abgesicherter Stromkreis
F37 SENSOR 2 S2 10A Nockenwellensensor 1/2, Spülmagnetventil, Ölregelventil 1/2, Magnetventil variabler 7
, Anschlussleiste Ansaugkrümmeraum Motorr(RELAIS 1, RELAIS 2)
F38 ECU 2 E2 10A ECM/PCM
F39 ECU 1 E1 20A ECM/PCM
F40 ORINJECT INJECTOR 15A Zündspule 1/2/3/4
F41 SENSOR 1 S1 15A orkat), Lambdasonde Lambdasonde (V (Nachkat)
7-77
