PDe GER 7.qxp 17.04.2017 17:30 Page 79

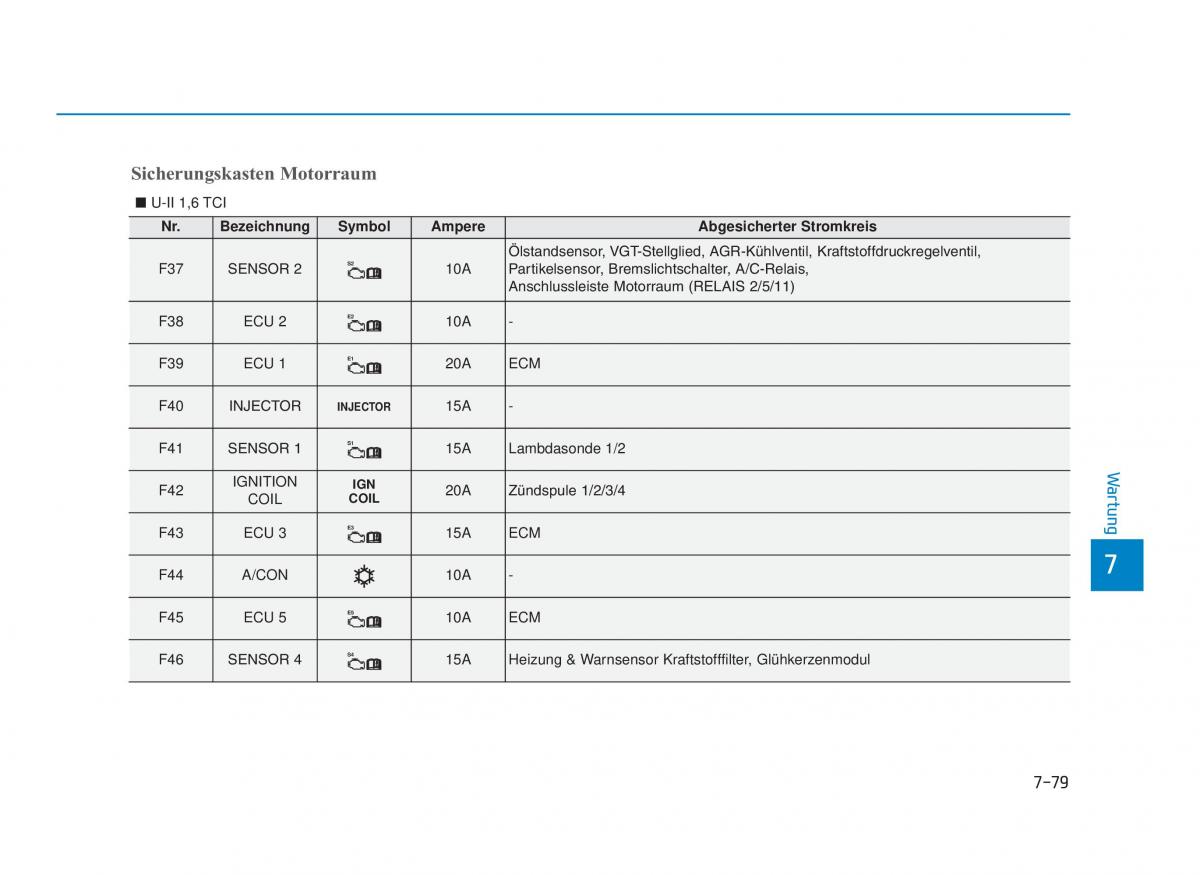

Sicherungskasten Motorraum
■ U-II 1,6 TCI
Nr. Bezeichnung Symbol Ampere Abgesicherter Stromkreis
entil,entil, -Stellglied, GR-KühlvaftstoffdrkregelvKrucAGTV, Ölstandsensor
F37 SENSOR 2 S2 10A , , , A/C-RelaisarBremslichtschalterelsensorP tik
Anschlussleiste aum Motorr(RELAIS 2/5/11)
F38 ECU 2 E2 10A -
F39 ECU 1 E1 20A ECM
F40 ORINJECT INJECTOR 15A -
F41 SENSOR 1 S1 15A Lambdasonde 1/2
W
F42 IGNITION IGN 20A Zündspule 1/2/3/4 artung
COIL COIL
F43 ECU 3 E3 15A ECM
F44 A/CON 10A - 7
F45 ECU 5 E5 10A ECM
F46 SENSOR 4 S4 15A Heizung & Warnsensor Kraftstofffilter, Glühkerzenmodul
7-79
