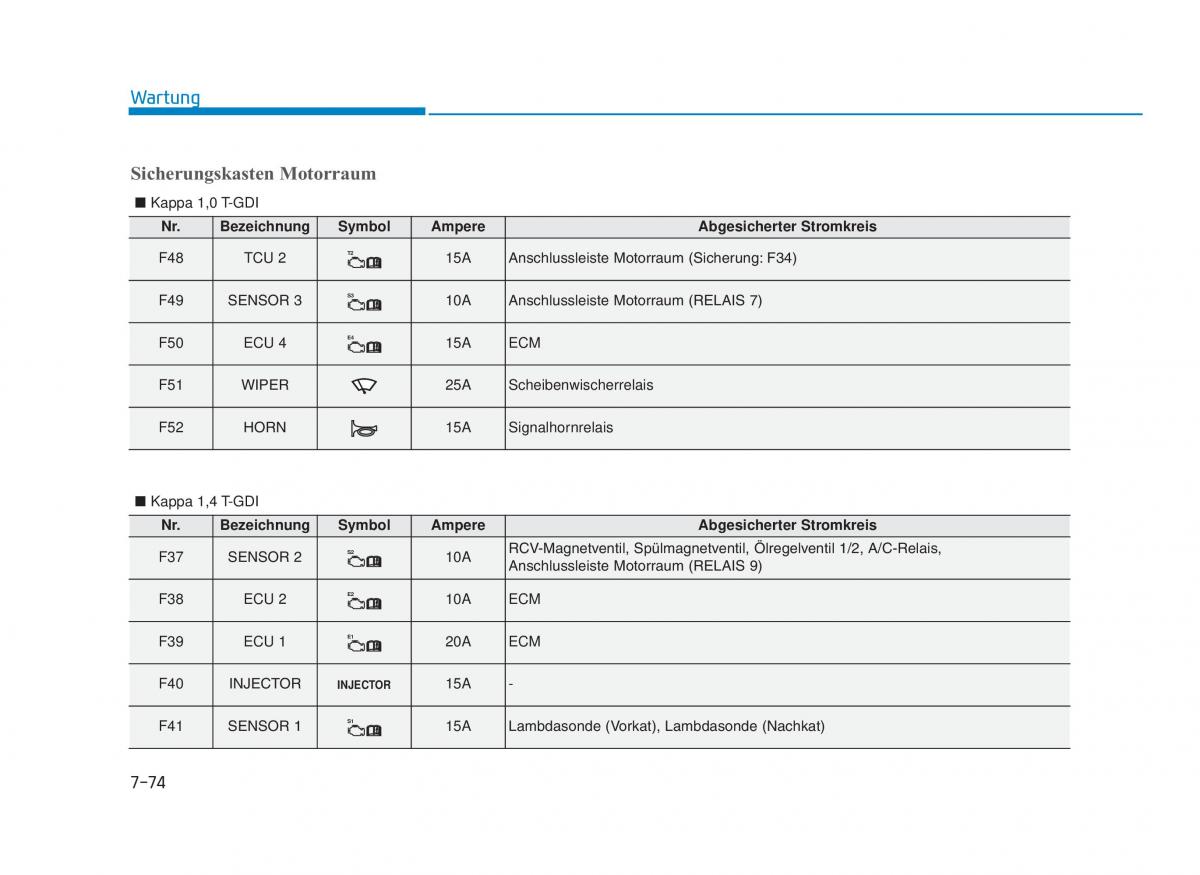

PDe GER 7.qxp 17.04.2017 17:29 Page 74
Wartung
Sicherungskasten Motorraum
■ Kappa 1,0 T-GDI
Nr. Bezeichnung Symbol Ampere Abgesicherter Stromkreis
F48 TCU 2 T2 15A Anschlussleiste aum Motorr(Sicherung:F34)
F49 SENSOR 3 S3 10A Anschlussleiste aum Motorr(RELAIS 7)
F50 ECU 4 E4 15A ECM
F51 WIPER 25A Scheibenwischerrelais
F52 HORN 15A Signalhornrelais
■ Kappa 1,4 T-GDI
Nr. Bezeichnung Symbol Ampere Abgesicherter Stromkreis
F37 SENSOR 2 S2 10A entil, entil, entil -MagnetvSpülmagnetvÖlregelv1/2, , A/C-RelaisRCV
Anschlussleiste aum Motorr(RELAIS 9)
F38 ECU 2 E2 10A ECM
F39 ECU 1 E1 20A ECM
F40 ORINJECT INJECTOR 15A -
F41 SENSOR 1 S1 15A orkat), Lambdasonde Lambdasonde (V (Nachkat)
7-74
