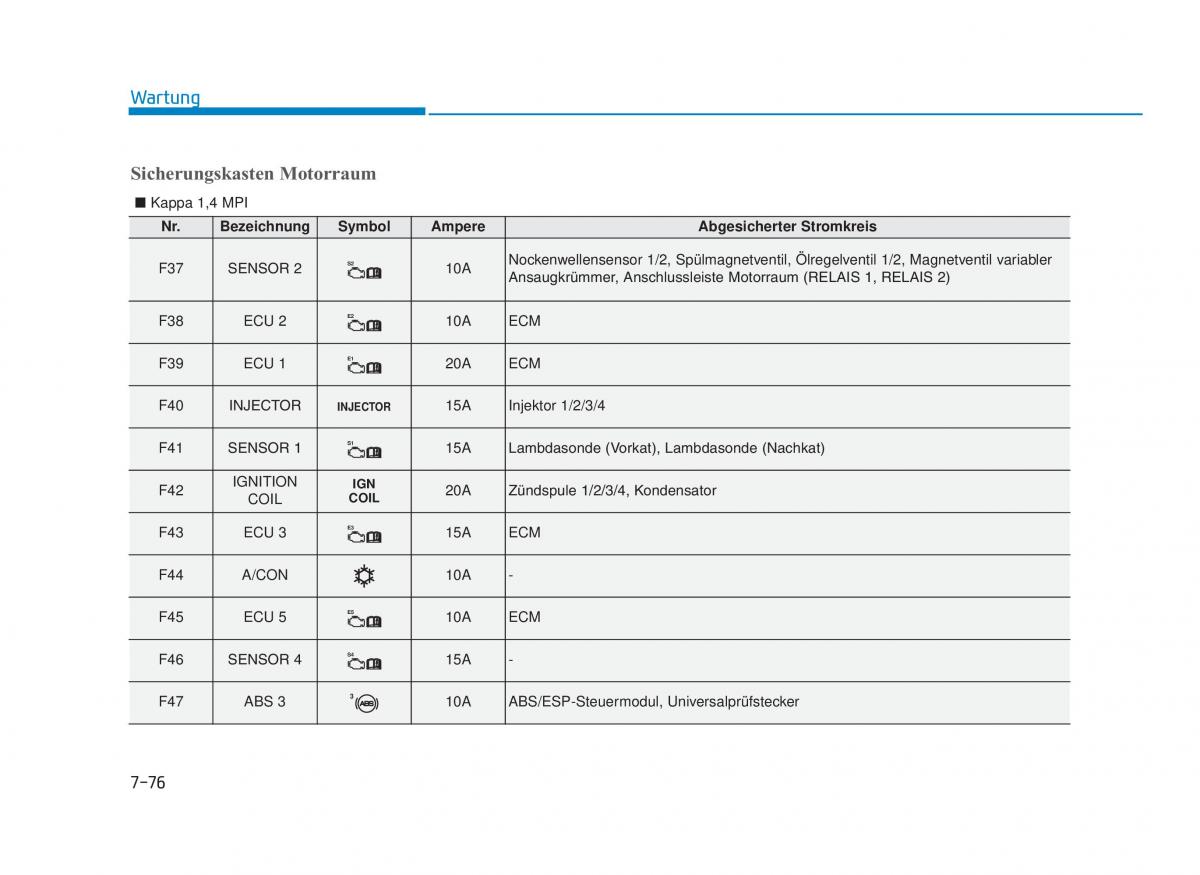

PDe GER 7.qxp 17.04.2017 17:29 Page 76
Wartung
Sicherungskasten Motorraum
■ Kappa 1,4 MPI
Nr. Bezeichnung Symbol Ampere Abgesicherter Stromkreis
F37 SENSOR 2 S2 10A Nockenwellensensor 1/2, Spülmagnetventil, Ölregelventil 1/2, Magnetventil variabler
, Anschlussleiste Ansaugkrümmeraum Motorr(RELAIS 1, RELAIS 2)
F38 ECU 2 E2 10A ECM
F39 ECU 1 E1 20A ECM
F40 ORINJECT INJECTOR 15A Injektor 1/2/3/4
F41 SENSOR 1 S1 15A orkat), Lambdasonde Lambdasonde (V (Nachkat)
F42 IGNITION IGN 20A Zündspule ondensator1/2/3/4, K
COIL COIL
F43 ECU 3 E3 15A ECM
F44 A/CON 10A -
F45 ECU 5 E5 10A ECM
F46 SENSOR 4 S4 15A -
F47 ABS 3 3 10A ABS/ESP-Steuermodul, Universalprüfstecker
7-76
