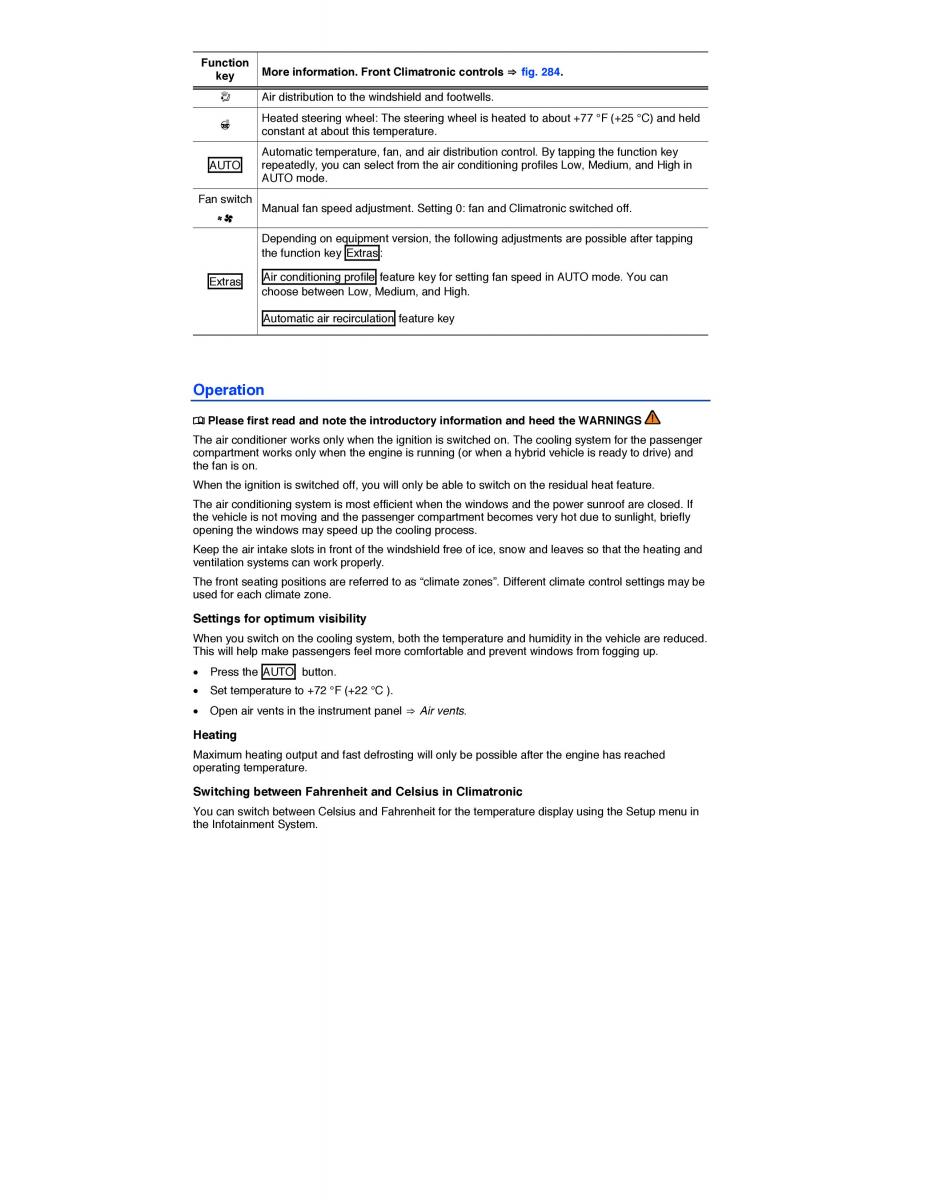

VW Touareg II 2 owners manual page 423

text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

Function More information. Front Climatronic controls ⇒ fig. 284. key u Air distribution to the windshield and footwells. Heated steering wheel: The steering wheel is heated to about +77 °F (+25 °C) and held constant at about this temperature. Automatic temperature, fan, and air distribution control. By tapping the function key AUTO repeatedly, you can select from the air conditioning profiles Low, Medium, and High in AUTO mode. Fan switch Manual fan speed adjustment. Setting 0: fan and Climatronic switched off. Depending on equipment version, the following adjustments are possible after tapping the function key Extras: Extras Air conditioning profile feature key for setting fan speed in AUTO mode. You can choose between Low, Medium, and High. Automatic air recirculation feature key Operation ¤ Please first read and note the introductory information and heed the WARNINGS The air conditioner works only when the ignition is switched on. The cooling system for the passenger compartment works only when the engine is running (or when a hybrid vehicle is ready to drive) and the fan is on. When the ignition is switched off, you will only be able to switch on the residual heat feature. The air conditioning system is most efficient when the windows and the power sunroof are closed. If the vehicle is not moving and the passenger compartment becomes very hot due to sunlight, briefly opening the windows may speed up the cooling process. Keep the air intake slots in front of the windshield free of ice, snow and leaves so that the heating and ventilation systems can work properly. The front seating positions are referred to as “climate zones”. Different climate control settings may be used for each climate zone. Settings for optimum visibility When you switch on the cooling system, both the temperature and humidity in the vehicle are reduced. This will help make passengers feel more comfortable and prevent windows from fogging up. x Press the AUTO button. x Set temperature to +72 °F (+22 °C ). x Open air vents in the instrument pane⇒l Air vents. Heating Maximum heating output and fast defrosting will only be possible after the engine has reached operating temperature. Switching between Fahrenheit and Celsius in Climatronic You can switch between Celsius and Fahrenheit for the temperature display using the Setup menu in the Infotainment System.

owners manual VW Touareg

owners manual VW Touareg - year of production: 2010 - VW Touareg II 2 owners manual EN
