owners manual VW Touareg

owners manual VW Touareg - year of production: 2010 - VW Touareg II 2 owners manual EN

Document: pdf (9.85 MB) 620 pages

all ratings: 1 average rating: 3

text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

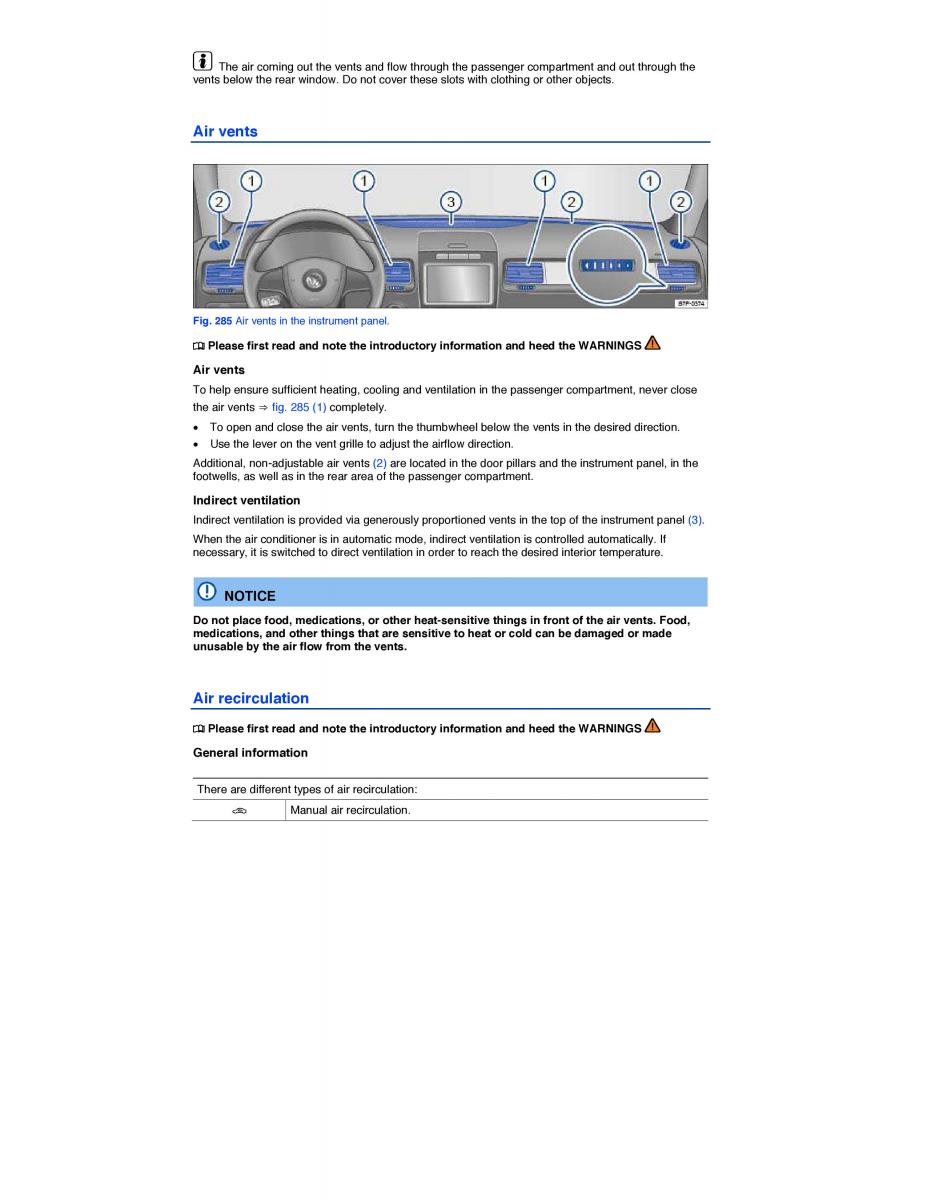

The air coming out the vents and flow through the passenger compartment and out through the vents below the rear window. Do not cover these slots with clothing or other objects. Air vents Fig. 285 Air vents in the instrument panel. ¤ Please first read and note the introductory information and heed the WARNINGS Air vents To help ensure sufficient heating, cooling and ventilation in the passenger compartment, never close the air vents ⇒ fig. 285 (1) completely. x To open and close the air vents, turn the thumbwheel below the vents in the desired direction. x Use the lever on the vent grille to adjust the airflow direction. Additional, non-adjustable air vents (2) are located in the door pillars and the instrument panel, in the footwells, as well as in the rear area of the passenger compartment. Indirect ventilation Indirect ventilation is provided via generously proportioned vents in the top of the instrument panel (3). When the air conditioner is in automatic mode, indirect ventilation is controlled automatically. If necessary, it is switched to direct ventilation in order to reach the desired interior temperature. NOTICE Do not place food, medications, or other heat-sensitive things in front of the air vents. Food, medications, and other things that are sensitive to heat or cold can be damaged or made unusable by the air flow from the vents. Air recirculation ¤ Please first read and note the introductory information and heed the WARNINGS General information There are different types of air recirculation: 3 Maira renucairl culation.
