owners manual VW Touareg

owners manual VW Touareg - year of production: 2010 - VW Touareg II 2 owners manual EN

Document: pdf (9.85 MB) 620 pages

all ratings: 1 average rating: 3

text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

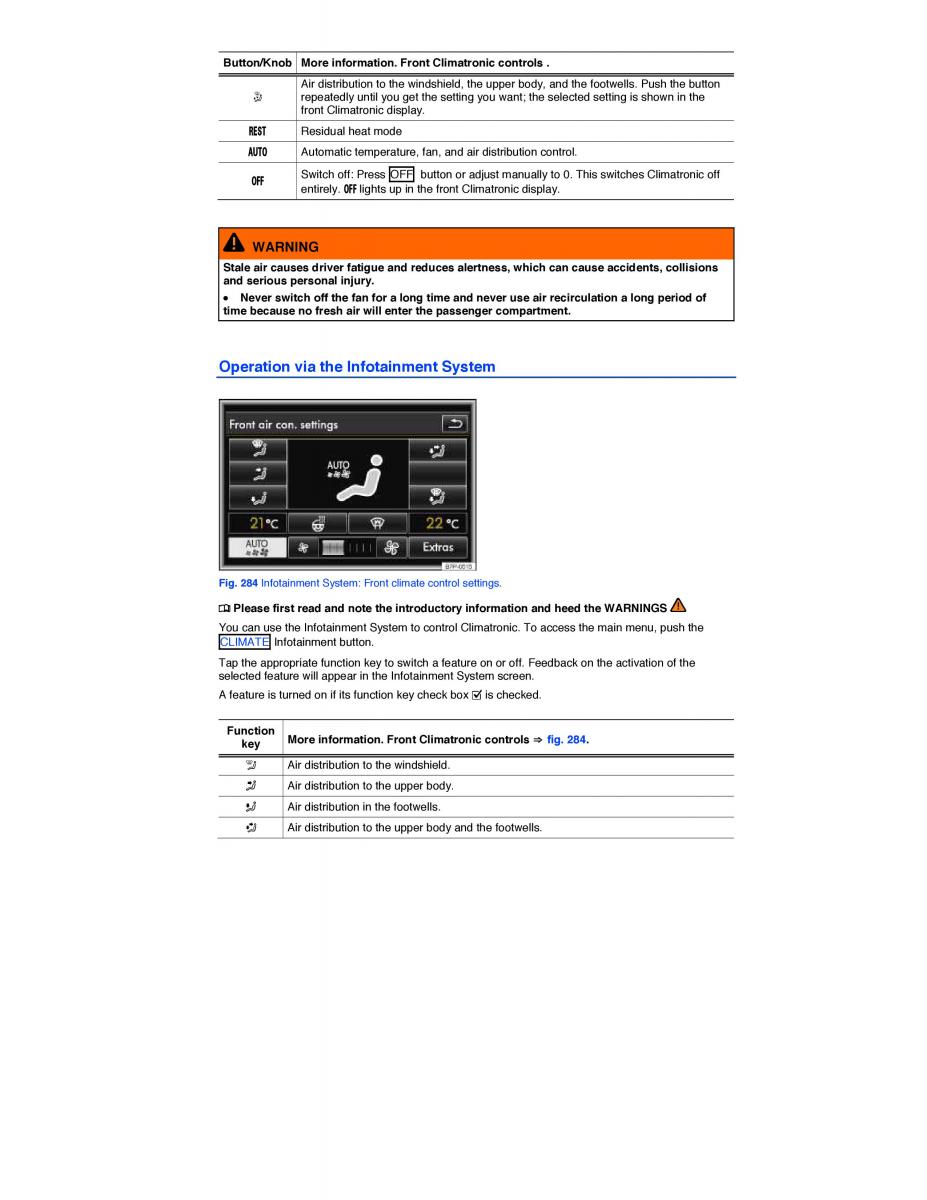

Button/Knob More information. Front Climatronic controls . Air distribution to the windshield, the upper body, and the footwells. Push the button ) repeatedly until you get the setting you want; the selected setting is shown in the front Climatronic display. 2%34 Residual heat mode !54/ Automatic temperature, fan, and air distribution control. /&& Switch off: Press OFF button or adjust manually to 0. This switches Climatronic off entirely. /&& lights up in the front Climatronic display. WARNING Stale air causes driver fatigue and reduces alertness, which can cause accidents, collisions and serious personal injury. x Never switch off the fan for a long time nd anever use air recirculation a long period of time because no fresh air will enter the passenger compartment. Operation via the Infotainment System Fig. 284 Infotainment System: Front climate control settings. ¤ Please first read and note the introductory information and heed the WARNINGS You can use the Infotainment System to control Climatronic. To access the main menu, push the CLIMATE Infotainment button. Tap the appropriate function key to switch a feature on or off. Feedback on the activation of the selected feature will appear in the Infotainment System screen. A feature is turned on if its function key check box = is checked. Function More information. Front Climatronic controls ⇒ fig. 284. key Air distribution to the windshield. K Air distribution to the upper body. L Air distribution in the footwells. O Air distribution to the upper body and the footwells.
