text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

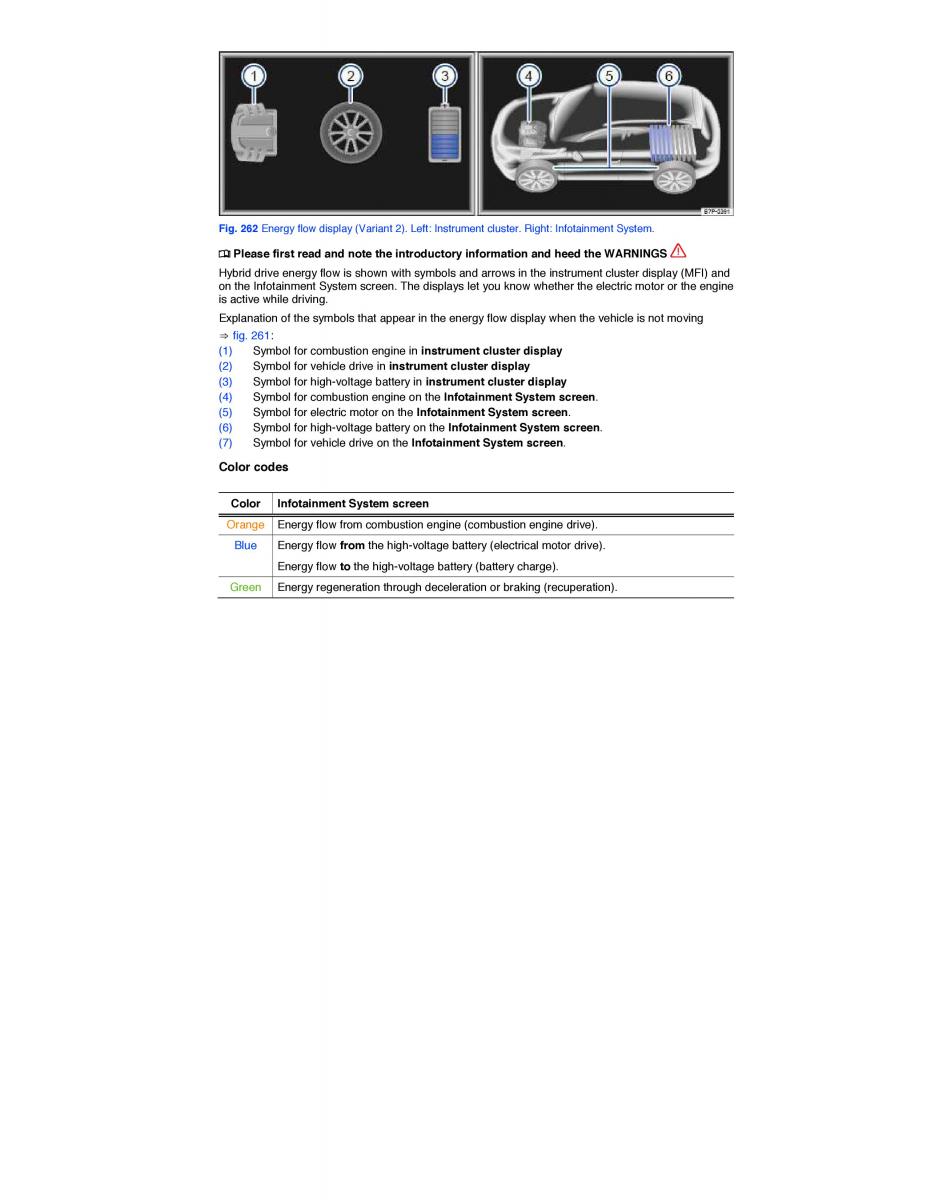

Fig. 262 Energy flow display (Variant 2). Left: Instrument cluster. Right: Infotainment System. ¤ Please first read and note the introductory information and heed the WARNINGS Hybrid drive energy flow is shown with symbols and arrows in the instrument cluster display (MFI) and on the Infotainment System screen. The displays let you know whether the electric motor or the engine is active while driving. Explanation of the symbols that appear in the energy flow display when the vehicle is not moving ⇒ fig. 261: (1) Symbol for combustion enginein inst rument cluster display (2) Symbol for vehicle driveins in trument cluster display (3) Symbol for high-voltage batteryins in trument cluster display (4) Symbol for combustion engine on tInhefo tainment System screen. (5) Symbol for electric motor on tInhefo tainment System screen. (6) Symbol for high-voltage battery on tInhefo tainment System screen. (7) Symbol for vehicle drive on tInhefo tainment System screen. Color codes Color Infotainment System screen Orange Energy flow from combustion engine (combustion engine drive). Blue Energy flow from the high-voltage battery (electrical motor drive). Energy flow to the high-voltage battery (battery charge). Green Energy regeneration through deceleration or braking (recuperation).
