text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

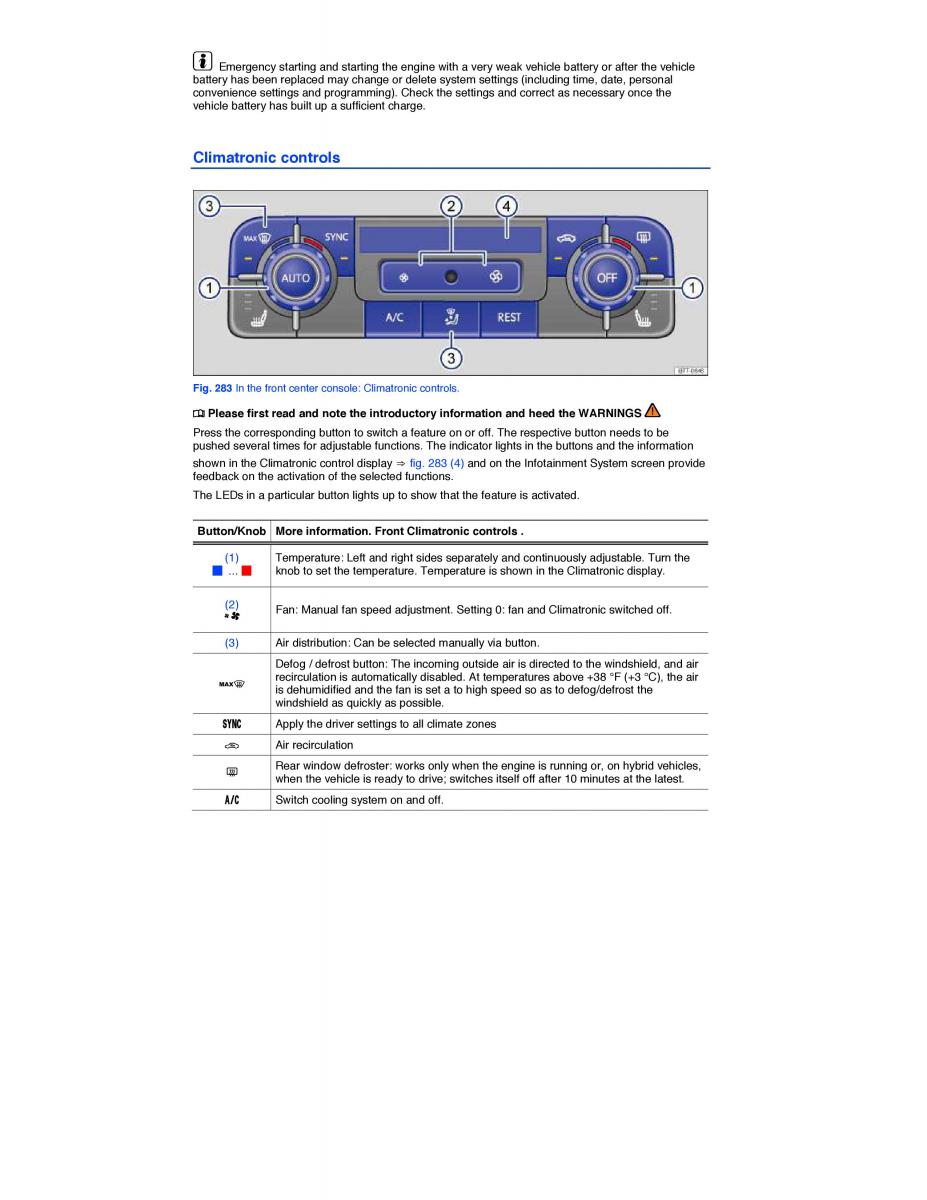

Emergency starting and starting the engine with a very weak vehicle battery or after the vehicle battery has been replaced may change or delete system settings (including time, date, personal convenience settings and programming). Check the settings and correct as necessary once the vehicle battery has built up a sufficient charge. Climatronic controls Fig. 283 In the front center console: Climatronic controls. ¤ Please first read and note the introductory information and heed the WARNINGS Press the corresponding button to switch a feature on or off. The respective button needs to be pushed several times for adjustable functions. The indicator lights in the buttons and the information shown in the Climatronic control display ⇒ fig. 283 (4) and on the Infotainment System screen provide feedback on the activation of the selected functions. The LEDs in a particular button lights up to show that the feature is activated. Button/Knob More information. Front Climatronic controls . (1) Temperature: Left and right sides separately and continuously adjustable. Turn the . knob to set the temperature. Temperature is shown in the Climatronic display. (2) Fan: Manual fan speed adjustment. Setting 0: fan and Climatronic switched off. (3) Air distribution: Can be selected manually via button. Defog / defrost button: The incoming outside air is directed to the windshield, and air recirculation is automatically disabled. At temperatures above +38 °F (+3 °C), the air is dehumidified and the fan is set a to high speed so as to defog/defrost the windshield as quickly as possible. 39.# Apply the driver settings to all climate zones 3 Arecirciru lation = Rear window defroster: works only when the engine is running or, on hybrid vehicles, when the vehicle is ready to drive; switches itself off after 10 minutes at the latest. !# Switch cooling system on and off.
