text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

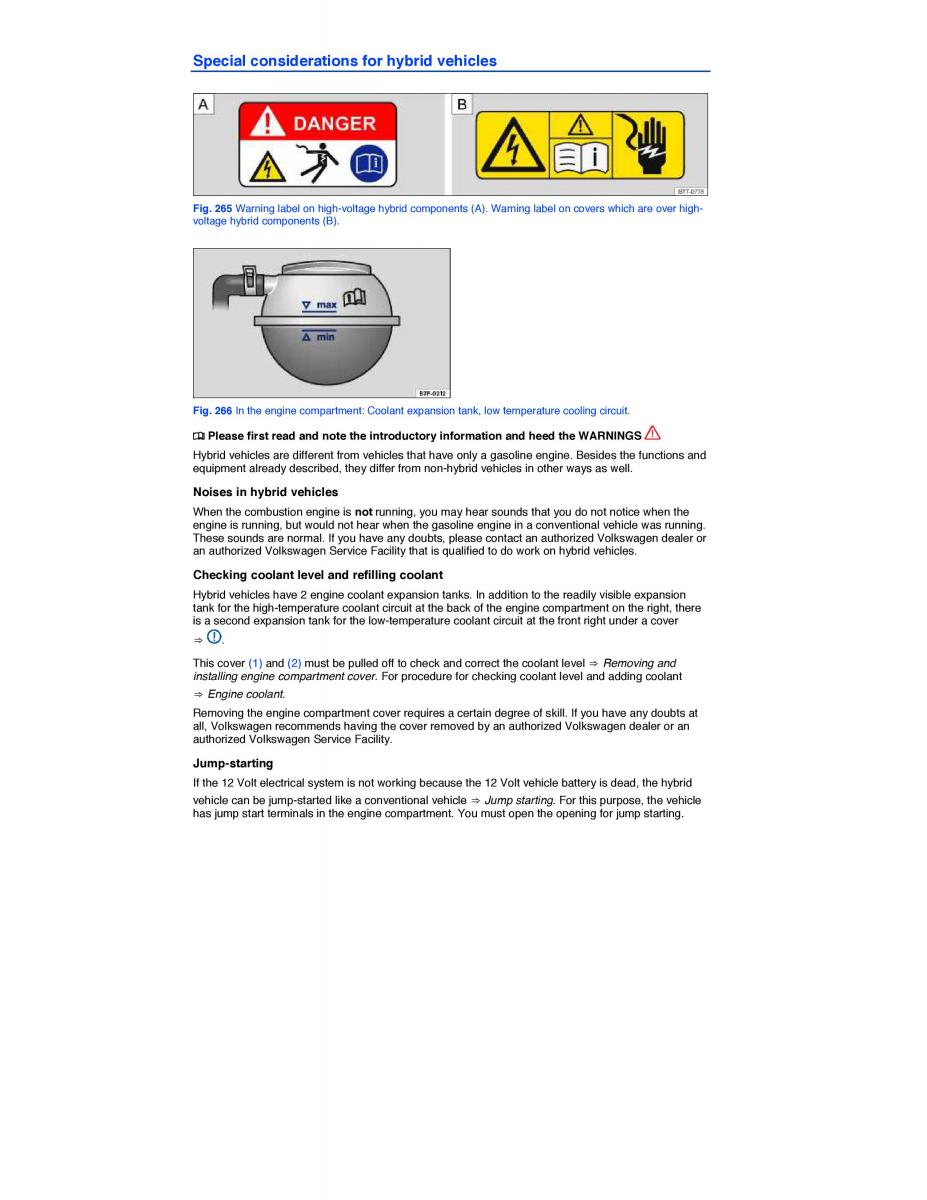

Special considerations for hybrid vehicles Fig. 265 Warning label on high-voltage hybrid components (A). Warning label on covers which are over high- voltage hybrid components (B). Fig. 266 In the engine compartment: Coolant expansion tank, low temperature cooling circuit. ¤ Please first read and note the introductory information and heed the WARNINGS Hybrid vehicles are different from vehicles that have only a gasoline engine. Besides the functions and equipment already described, they differ from non-hybrid vehicles in other ways as well. Noises in hybrid vehicles When the combustion engine is not running, you may hear sounds that you do not notice when the engine is running, but would not hear when the gasoline engine in a conventional vehicle was running. These sounds are normal. If you have any doubts, please contact an authorized Volkswagen dealer or an authorized Volkswagen Service Facility that is qualified to do work on hybrid vehicles. Checking coolant level and refilling coolant Hybrid vehicles have 2 engine coolant expansion tanks. In addition to the readily visible expansion tank for the high-temperature coolant circuit at the back of the engine compartment on the right, there is a second expansion tank for the low-temperature coolant circuit at the front right under a cover ⇒ . This cover (1) and (2) must be pulled off to check and correct the coolant level ⇒ Removing and installing engine compartment cover. For procedure for checking coolant level and adding coolant ⇒ Engine coolant. Removing the engine compartment cover requires a certain degree of skill. If you have any doubts at all, Volkswagen recommends having the cover removed by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility. Jump-starting If the 12 Volt electrical system is not working because the 12 Volt vehicle battery is dead, the hybrid vehicle can be jump-started like a conventional vehicle ⇒ Jump starting. For this purpose, the vehicle has jump start terminals in the engine compartment. You must open the opening for jump starting.
