text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

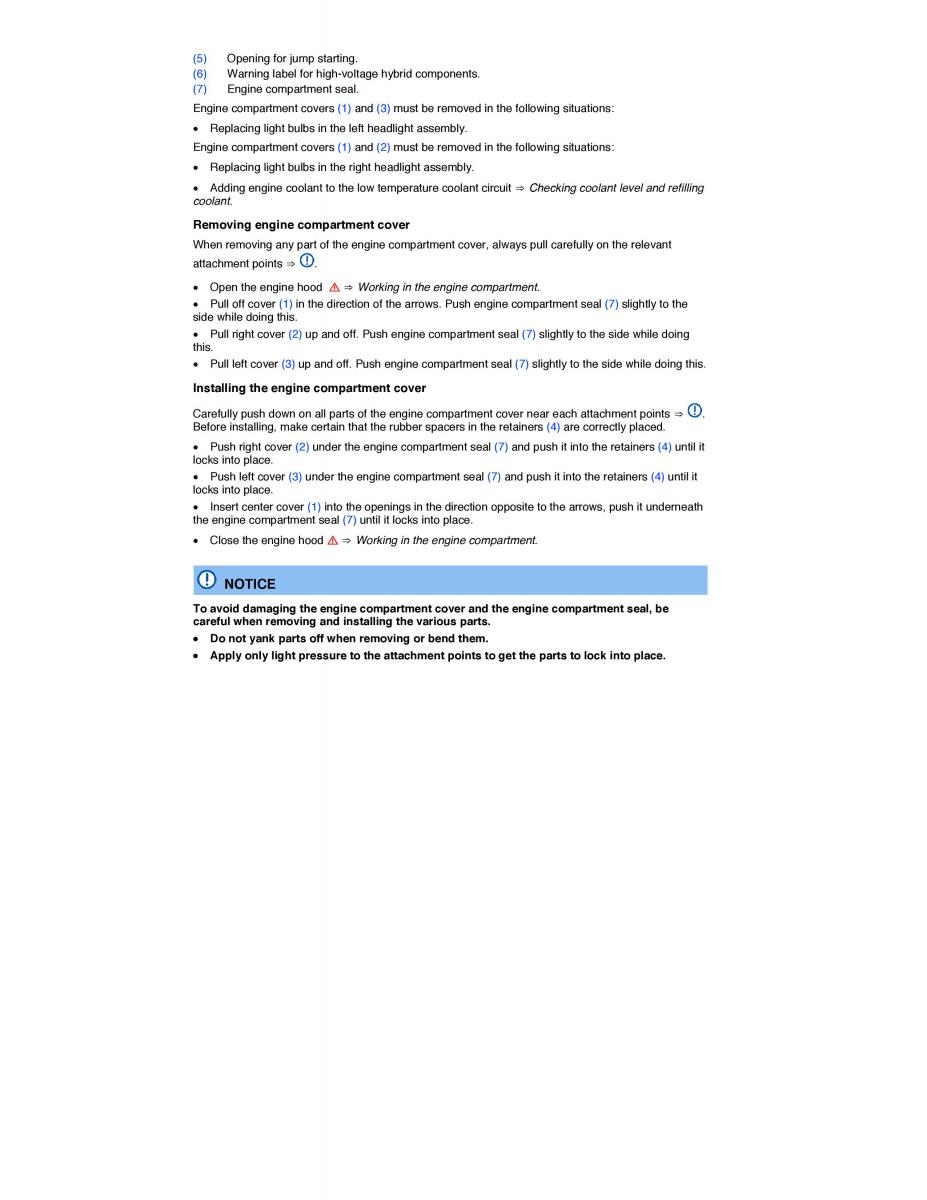

(5) Opening for jump starting. (6) Warning label for high-voltage hybrid components. (7) Engine compartment seal. Engine compartment covers (1) and (3) must be removed in the following situations: x Replacing light bulbs in the left headlight assembly. Engine compartment covers (1) and (2) must be removed in the following situations: x Replacing light bulbs in the right headlight assembly. x Adding engine coolant to the low temperature coolant circu⇒it Checking coolant level and refilling coolant. Removing engine compartment cover When removing any part of the engine compartment cover, always pull carefully on the relevant attachment points ⇒ . x Open the engine hood ⇒ Working in the engine compartment. x Pull off cove(1r ) in the direction of the arrows. Push engine compartment seal (7) slightly to the side while doing this. x Pull right cove(2r ) up and off. Push engine compartment seal (7) slightly to the side while doing this. x Pull left cove(3r ) up and off. Push engine compartment seal (7) slightly to the side while doing this. Installing the engine compartment cover Carefully push down on all parts of the engine compartment cover near each attachment points ⇒ . Before installing, make certain that the rubber spacers in the retainers (4) are correctly placed. x Push right cove(2r ) under the engine compartment seal (7) and push it into the retainers (4) until it locks into place. x Push left cove(3r ) under the engine compartment seal (7) and push it into the retainers (4) until it locks into place. x Insert center cove(1r ) into the openings in the direction opposite to the arrows, push it underneath the engine compartment seal (7) until it locks into place. x Close the engine hood ⇒ Working in the engine compartment. NOTICE To avoid damaging the engine compartment cover and the engine compartment seal, be careful when removing and installing the various parts. x Do not yank parts off when removing or bend them . x Apply only light pressure to the attachment points to get the parts to lock into place .
