text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

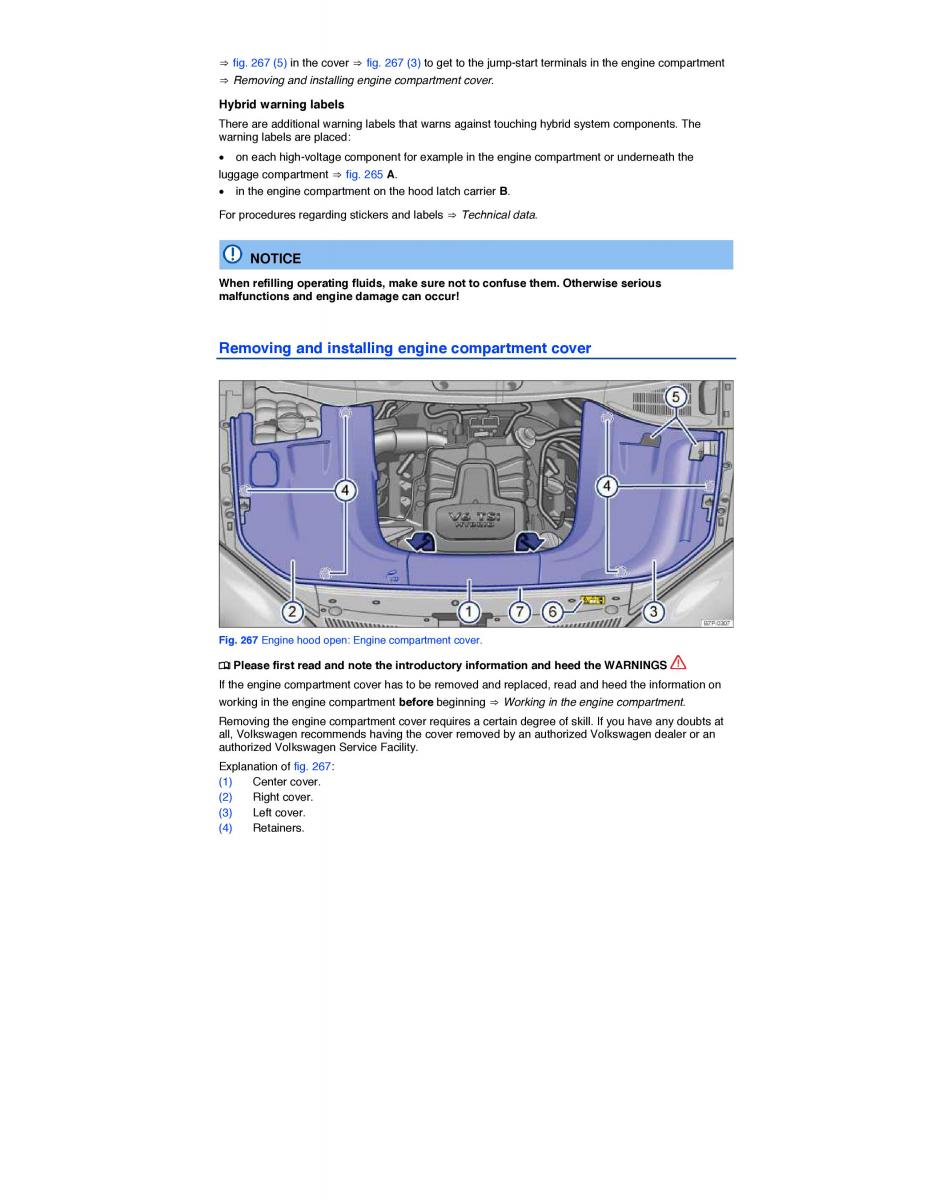

⇒ fig. 267 (5) in the cover ⇒ fig. 267 (3) to get to the jump-start terminals in the engine compartment ⇒ Removing and installing engine compartment cover. Hybrid warning labels There are additional warning labels that warns against touching hybrid system components. The warning labels are placed: x on each high-voltage component for example in the engine compartment or underneath the luggage compartment ⇒ fig. 265 A. x in the engine compartment on the hood latch carrieBr . For procedures regarding stickers and labels ⇒ Technical data. NOTICE When refilling operating fluids, make sure not to confuse them. Otherwise serious malfunctions and engine damage can occur! Removing and installing engine compartment cover Fig. 267 Engine hood open: Engine compartment cover. ¤ Please first read and note the introductory information and heed the WARNINGS If the engine compartment cover has to be removed and replaced, read and heed the information on working in the engine compartment before beginning ⇒ Working in the engine compartment. Removing the engine compartment cover requires a certain degree of skill. If you have any doubts at all, Volkswagen recommends having the cover removed by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility. Explanation of fig. 267: (1) Center cover. (2) Right cover. (3) Left cover. (4) Retainers.
