text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

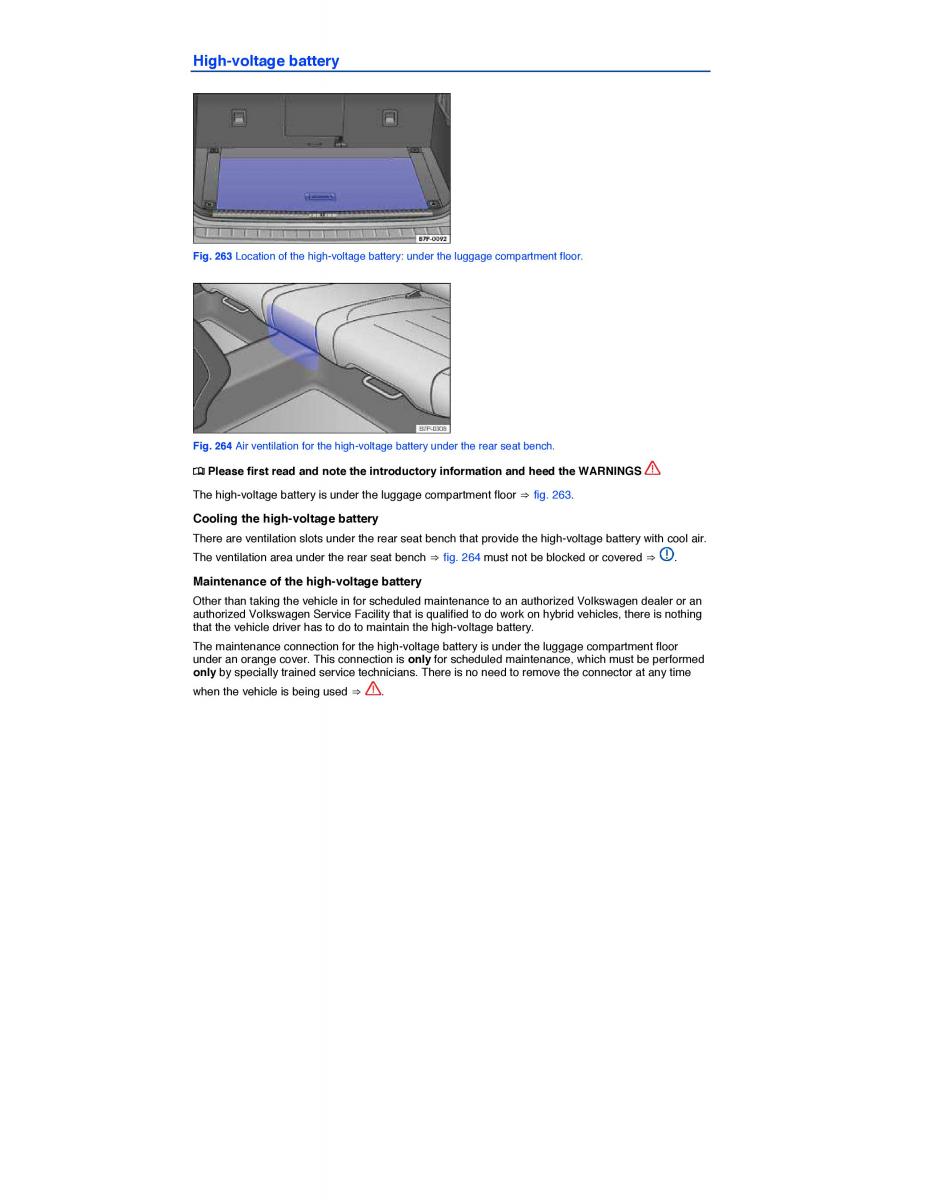

High-voltage battery Fig. 263 Location of the high-voltage battery: under the luggage compartment floor. Fig. 264 Air ventilation for the high-voltage battery under the rear seat bench. ¤ Please first read and note the introductory information and heed the WARNINGS The high-voltage battery is under the luggage compartment floor ⇒ fig. 263. Cooling the high-voltage battery There are ventilation slots under the rear seat bench that provide the high-voltage battery with cool air. The ventilation area under the rear seat bench ⇒ fig. 264 must not be blocked or covered ⇒ . Maintenance of the high-voltage battery Other than taking the vehicle in for scheduled maintenance to an authorized Volkswagen dealer or an authorized Volkswagen Service Facility that is qualified to do work on hybrid vehicles, there is nothing that the vehicle driver has to do to maintain the high-voltage battery. The maintenance connection for the high-voltage battery is under the luggage compartment floor under an orange cover. This connection is only for scheduled maintenance, which must be performed only by specially trained service technicians. There is no need to remove the connector at any time when the vehicle is being used ⇒ .
