text version of content this owner's manual page from owners manual to the vehicle Hyundai i30, year of production 2007 - 2012:

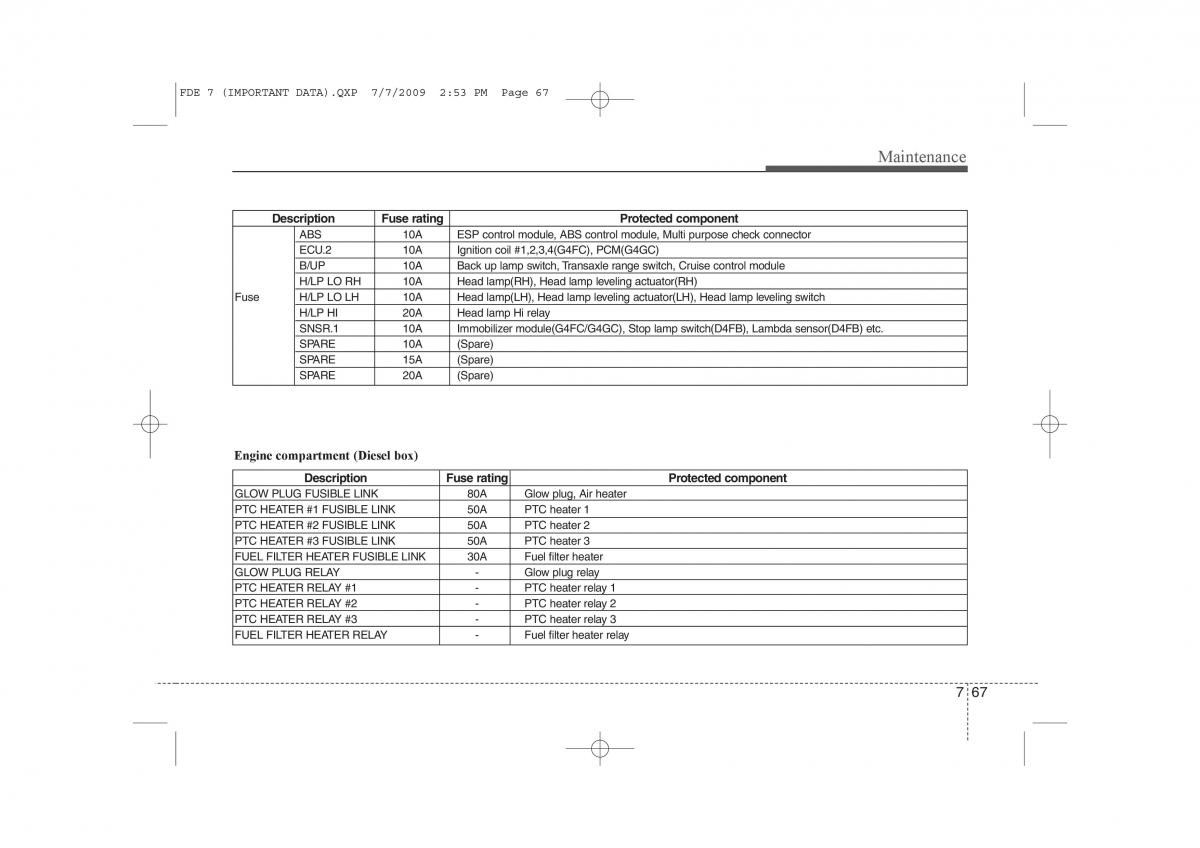

FDE 7 (IMPORTANT DATA).QXP 7/7/2009 2:53 PM Page 67 Maintenance DescriptionFuse rating Protected component ABS 10A ESP control module, ABS control module, Multi purpose check connector ECU.2 10A Ignition coil #1,2,3,4(G4FC), PCM(G4GC) B/UP 10A Back up lamp switch, Transaxle range switch, Cruise control module H/LP LO RH10AHead lamp(RH), Head lamp leveling actuator(RH) Fuse H/LP LO LH10AHead lamp(LH), Head lamp leveling actuator(LH), Head lamp leveling switch H/LP HI 20A Head lamp Hi relay SNSR.1 10A Immobilizer module(G4FC/G4GC), Stop lamp switch(D4FB), Lambda sensor(D4FB) etc. SPARE 10A (Spare) SPARE 15A (Spare) SPARE 20A (Spare) Engine compartment (Diesel box) DescriptionFuse rating Protected component GLOW PLUG FUSIBLE LINK80AGlow plug, Air heater PTC HEATER #1 FUSIBLE LINK50APTC heater 1 PTC HEATER #2 FUSIBLE LINK50APTC heater 2 PTC HEATER #3 FUSIBLE LINK50APTC heater 3 FUEL FILTER HEATER FUSIBLE LINK30AFuel filter heater GLOW PLUG RELAY - Glow plug relay PTC HEATER RELAY #1 - PTC heater relay 1 PTC HEATER RELAY #2 - PTC heater relay 2 PTC HEATER RELAY #3 - PTC heater relay 3 FUEL FILTER HEATER RELAY-Fuel filter heater relay 767
