text version of content this owner's manual page from owners manual to the vehicle Hyundai i30, year of production 2007 - 2012:

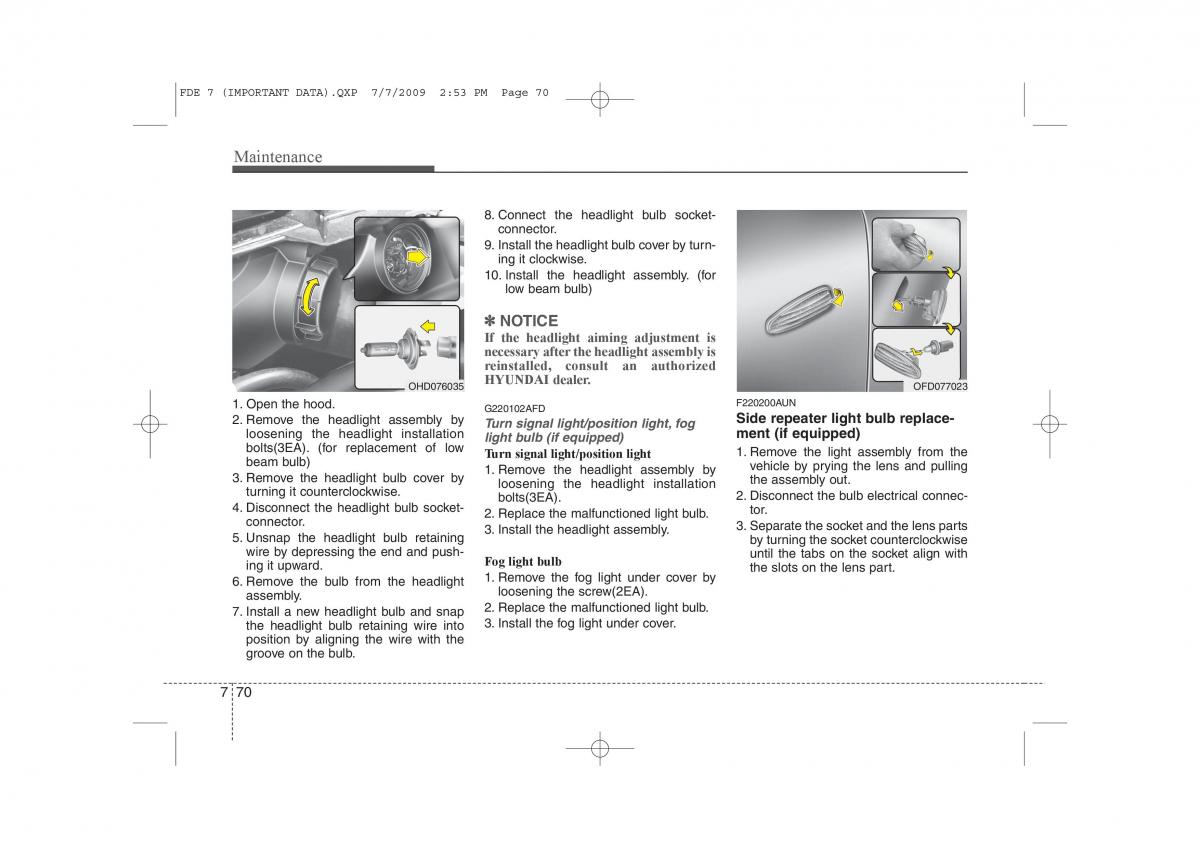

FDE 7 (IMPORTANT DATA).QXP 7/7/2009 2:53 PM Page 70 Maintenance 8. Connect the headlight bulb socket- connector. 9. Install the headlight bulb cover by turn- ing it clockwise. 10. Install the headlight assembly. (for low beam bulb) ✽✽ NOTICE If the headlight aiming adjustment is necessary afterthe headlight assembly is reinstalled, consult an authorized OHD076035 HYUNDAI dealer. OFD077023 1. Open the hood. G220102AFD F220200AUN 2. Remove the headlight assembly by Side repeater light bulb replace- Turn signal light/position light, fogment (if equipped) loosening the headlight installation light bulb (if equipped) bolts(3EA). (for replacement of low 1. Remove the light assembly from the beam bulb) Turn signal light/position light vehicle by prying the lens and pulling 1. Remove the headlight assembly by 3. Remove the headlight bulb cover by the assembly out. turning it counterclockwise. loosening the headlight installation bolts(3EA). 2. Disconnect the bulb electrical connec- 4. Disconnect the headlight bulb socket- tor. connector. 2. Replace the malfunctioned light bulb. 3. Install the headlight assembly.3. Separate the socket and the lens parts 5. Unsnap the headlight bulb retaining by turning the socket counterclockwise wire by depressing the end and push- until the tabs on the socket align with ing it upward. Fog light bulb the slots on the lens part. 1. Remove the fog light under cover by 6. Remove the bulb from the headlight assembly. loosening the screw(2EA). 2. Replace the malfunctioned light bulb. 7. Install a new headlight bulb and snap 3. Install the fog light under cover. the headlight bulb retaining wire into position by aligning the wire with the groove on the bulb. 7 70
