text version of content this owner's manual page from owners manual to the vehicle Hyundai i30, year of production 2007 - 2012:

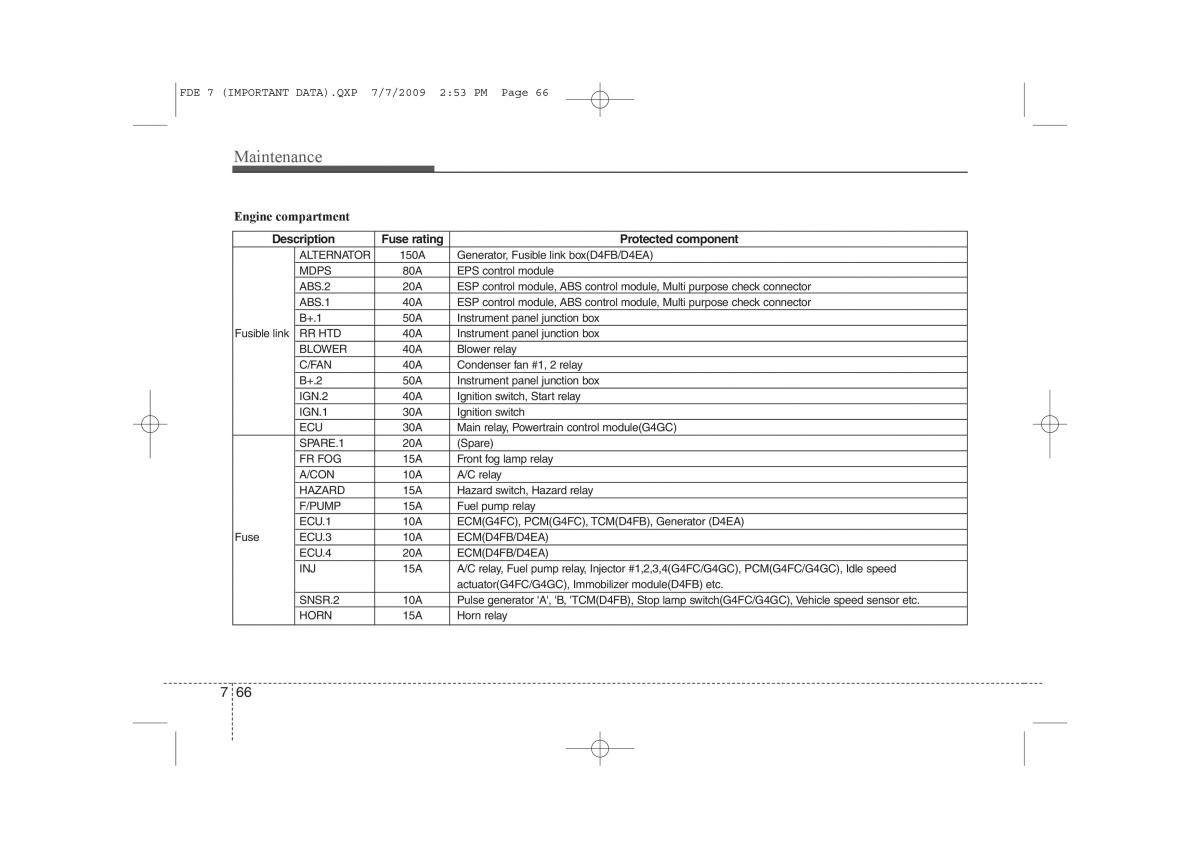

FDE 7 (IMPORTANT DATA).QXP 7/7/2009 2:53 PM Page 66 Maintenance Engine compartment DescriptionFuse rating Protected component ALTERNATOR150AGenerator, Fusible link box(D4FB/D4EA) MDPS 80A EPS control module ABS.2 20A ESP control module, ABS control module, Multi purpose check connector ABS.1 40A ESP control module, ABS control module, Multi purpose check connector B+.1 50A Instrument panel junction box Fusible linkRR HTD40AInstrument panel junction box BLOWER 40A Blower relay C/FAN 40A Condenser fan #1, 2 relay B+.2 50A Instrument panel junction box IGN.2 40A Ignition switch, Start relay IGN.1 30A Ignition switch ECU 30A Main relay, Powertrain control module(G4GC) SPARE.1 20A (Spare) FR FOG 15A Front fog lamp relay A/CON 10A A/C relay HAZARD 15A Hazard switch, Hazard relay F/PUMP 15A Fuel pump relay ECU.1 10A ECM(G4FC), PCM(G4FC), TCM(D4FB), Generator (D4EA) Fuse ECU.3 10A ECM(D4FB/D4EA) ECU.4 20A ECM(D4FB/D4EA) INJ 15A A/C relay, Fuel pump relay, Injector #1,2,3,4(G4FC/G4GC), PCM(G4FC/G4GC), Idle speed actuator(G4FC/G4GC), Immobilizer module(D4FB) etc. SNSR.2 10A Pulse generator 'A', 'B, 'TCM(D4FB), Stop lamp switch(G4FC/G4GC), Vehicle speed sensor etc. HORN 15A Horn relay 7 66
