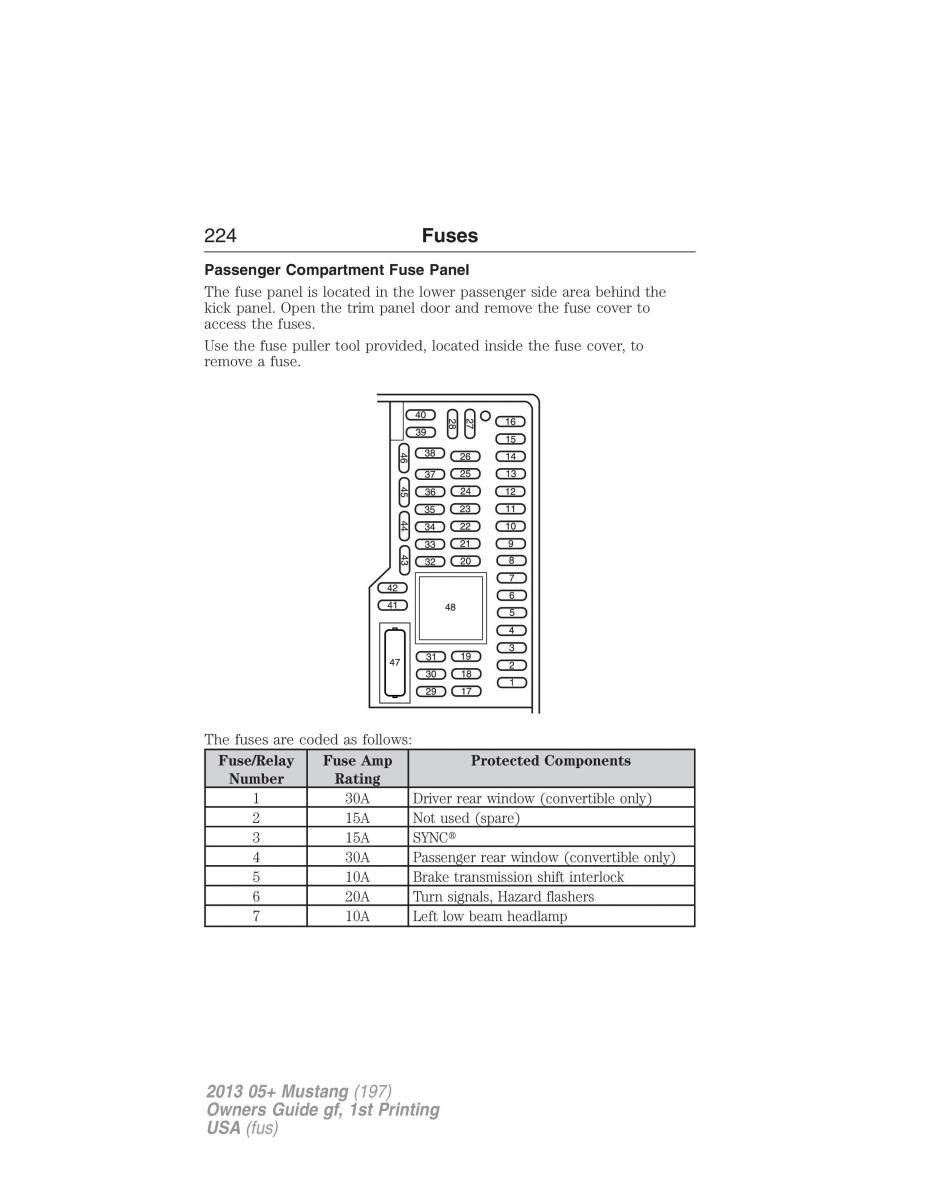

224 Fuses
Passenger Compartment Fuse Panel
The fuse panel is located in the lower passenger side area behind the
kick panel. Open the trim panel door and remove the fuse cover to
access the fuses.
Use the fuse puller tool provided, located inside the fuse cover, to
remove a fuse.
The fuses are coded as follows:
Fuse/RelayFuse Amp Protected Components
Number Rating
1 30A Driver rear window (convertible only)
2 15A Not used (spare)
3 15A SYNC
4 30A Passenger rear window (convertible only)
5 10A Brake transmission shift interlock
6 20A Turn signals, Hazard flashers
7 10A Left low beam headlamp
2013 05+ Mustang (197)
Owners Guide gf, 1st Printing
USA(fus)
