text version of content this owner's manual page from owners manual to the vehicle Ford Mustang, year of production 2004 - 2014:

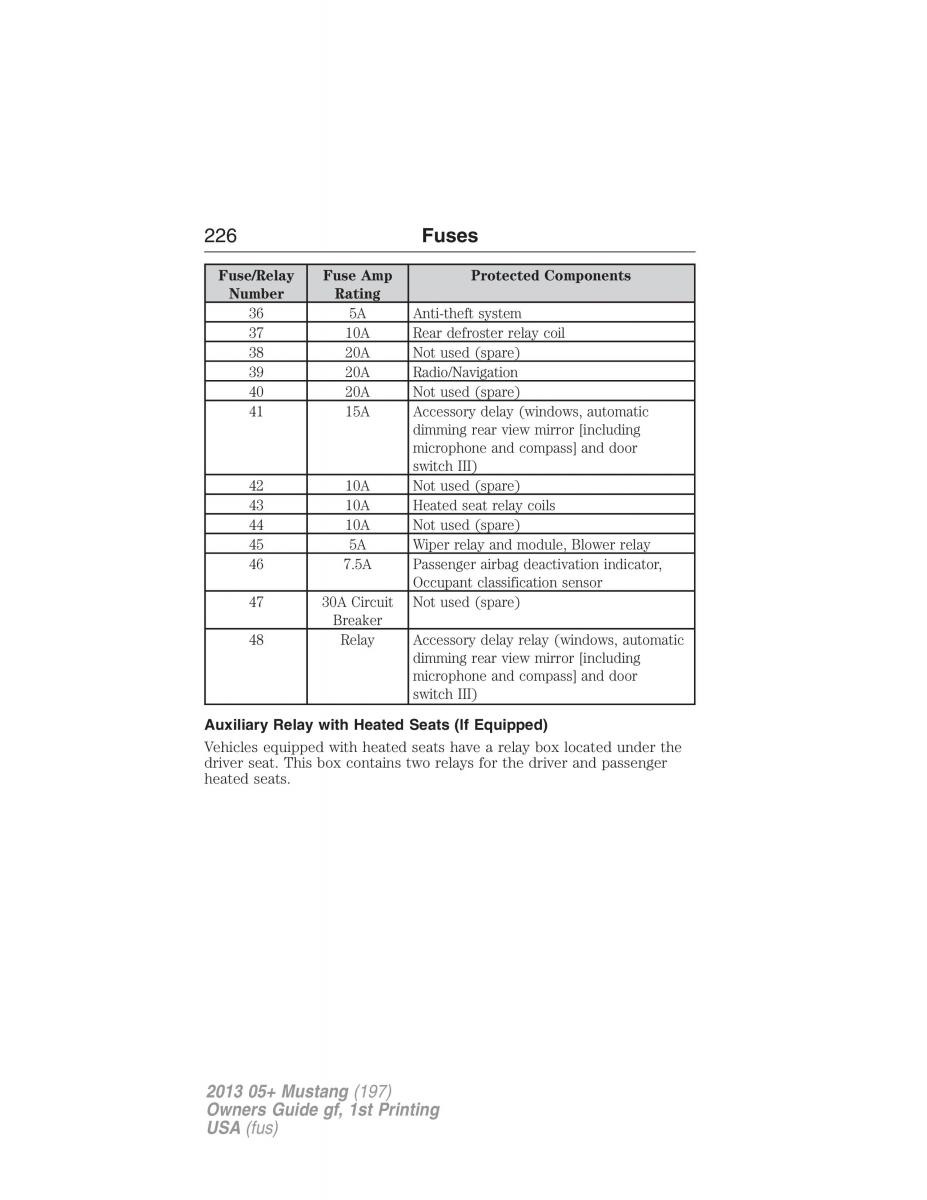

226 Fuses
Fuse/RelayFuse Amp Protected Components
Number Rating
36 5A Anti-theft system
37 10A Rear defroster relay coil
38 20A Not used (spare)
39 20A Radio/Navigation
40 20A Not used (spare)
41 15A Accessory delay (windows, automatic
dimming rear view mirror [including
microphone and compass] and door
switch III)
42 10A Not used (spare)
43 10A Heated seat relay coils
44 10A Not used (spare)
45 5A Wiper relay and module, Blower relay
46 7.5A Passenger airbag deactivation indicator,
Occupant classification sensor
47 30A CircuitNot used (spare)
Breaker
48 Relay Accessory delay relay (windows, automatic
dimming rear view mirror [including
microphone and compass] and door
switch III)
Auxiliary Relay with Heated Seats (If Equipped)
Vehicles equipped with heated seats have a relay box located under the
driver seat. This box contains two relays for the driver and passenger
heated seats.
2013 05+ Mustang (197)
Owners Guide gf, 1st Printing
USA(fus)
