text version of content this owner's manual page from owners manual to the vehicle Ford Mustang, year of production 2004 - 2014:

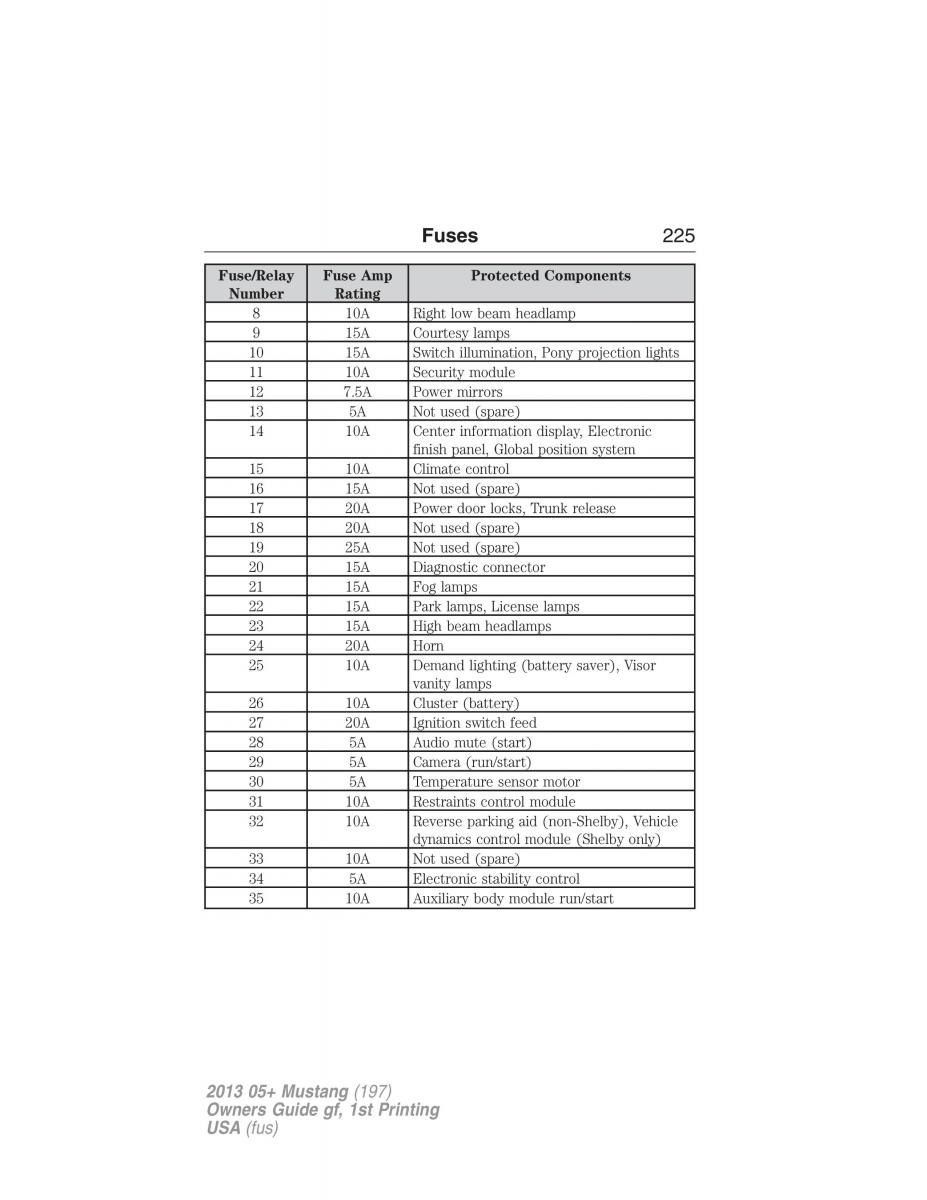

Fuses 225
Fuse/RelayFuse Amp Protected Components
Number Rating
8 10A Right low beam headlamp
9 15A Courtesy lamps
10 15A Switch illumination, Pony projection lights
11 10A Security module
12 7.5A Power mirrors
13 5A Not used (spare)
14 10A Center information display, Electronic
finish panel, Global position system
15 10A Climate control
16 15A Not used (spare)
17 20A Power door locks, Trunk release
18 20A Not used (spare)
19 25A Not used (spare)
20 15A Diagnostic connector
21 15A Fog lamps
22 15A Park lamps, License lamps
23 15A High beam headlamps
24 20A Horn
25 10A Demand lighting (battery saver), Visor
vanity lamps
26 10A Cluster (battery)
27 20A Ignition switch feed
28 5A Audio mute (start)
29 5A Camera (run/start)
30 5A Temperature sensor motor
31 10A Restraints control module
32 10A Reverse parking aid (non-Shelby), Vehicle
dynamics control module (Shelby only)
33 10A Not used (spare)
34 5A Electronic stability control
35 10A Auxiliary body module run/start
2013 05+ Mustang (197)
Owners Guide gf, 1st Printing
USA(fus)
