text version of content this owner's manual page from owners manual to the vehicle Ford Mustang, year of production 2004 - 2014:

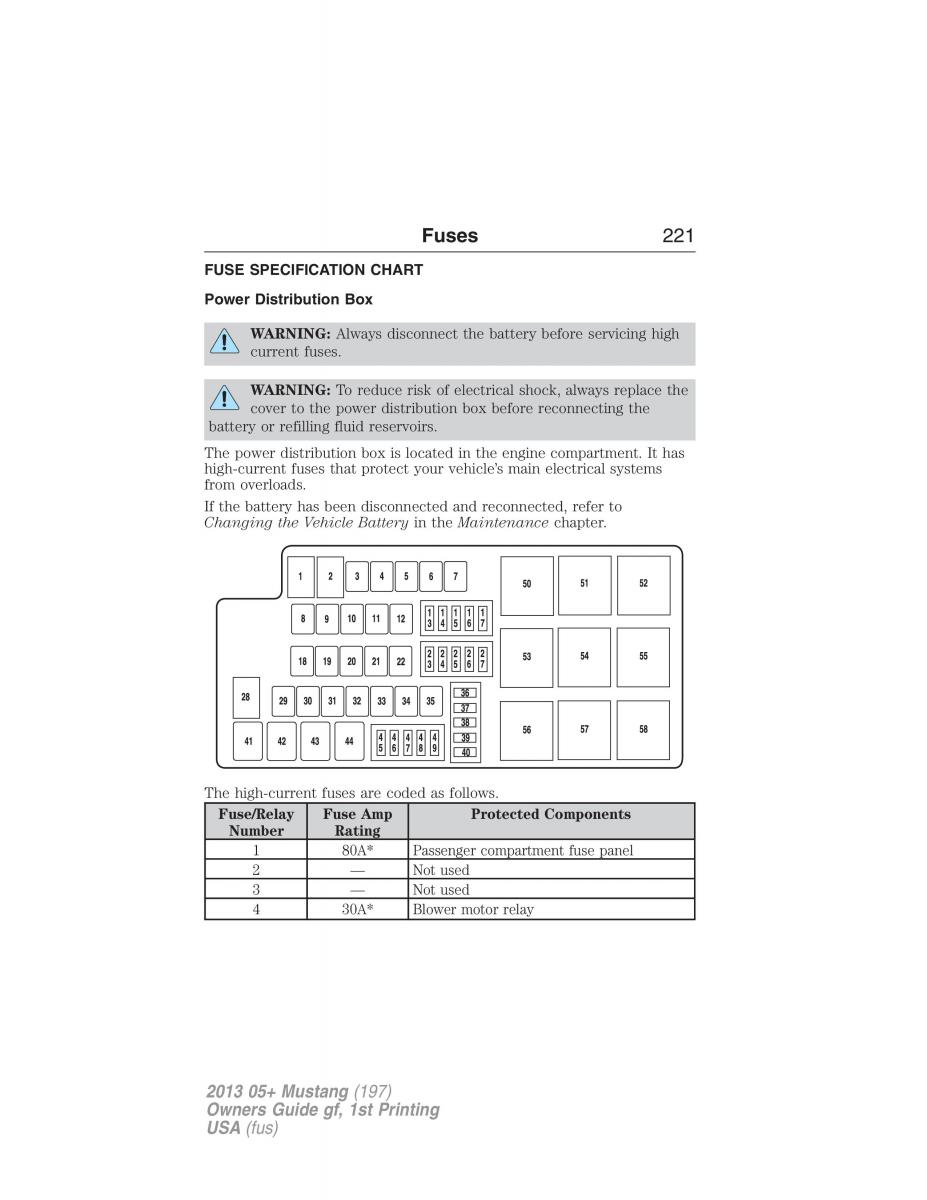

Fuses 221
FUSESPECIFICATION CHART
Power Distribution Box
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:Toreduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
The power distribution box is located in the engine compartment. It has
high-current fuses that protect your vehicle’s main electrical systems
from overloads.
If the battery has been disconnected and reconnected, refer to
Changing the Vehicle Battery in the Maintenance chapter.
The high-current fuses are coded as follows.
Fuse/RelayFuse Amp Protected Components
Number Rating
1 80A* Passenger compartment fuse panel
2 — Not used
3 — Not used
4 30A* Blower motor relay
2013 05+ Mustang (197)
Owners Guide gf, 1st Printing
USA(fus)
