text version of content this owner's manual page from owners manual to the vehicle Ford Mustang, year of production 2004 - 2014:

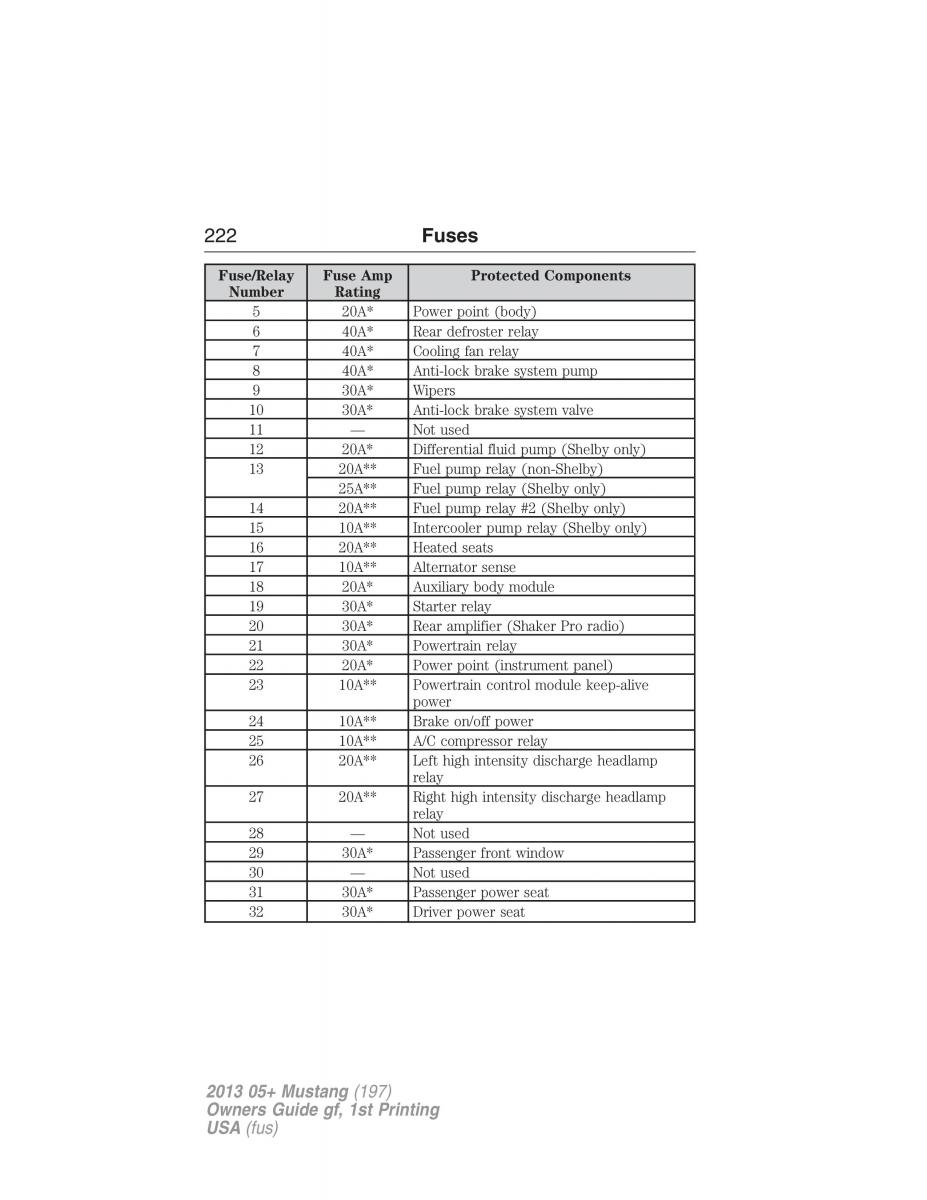

222 Fuses
Fuse/RelayFuse Amp Protected Components
Number Rating
5 20A* Power point (body)
6 40A* Rear defroster relay
7 40A* Cooling fan relay
8 40A* Anti-lock brake system pump
9 30A* Wipers
10 30A* Anti-lock brake system valve
11 — Not used
12 20A* Differential fluid pump (Shelby only)
13 20A** Fuel pump relay (non-Shelby)
25A** Fuel pump relay (Shelby only)
14 20A** Fuel pump relay #2 (Shelby only)
15 10A** Intercooler pump relay (Shelby only)
16 20A** Heated seats
17 10A** Alternator sense
18 20A* Auxiliary body module
19 30A* Starter relay
20 30A* Rear amplifier (Shaker Pro radio)
21 30A* Powertrain relay
22 20A* Power point (instrument panel)
23 10A** Powertrain control module keep-alive
power
24 10A** Brake on/off power
25 10A** A/C compressor relay
26 20A** Left high intensity discharge headlamp
relay
27 20A** Right high intensity discharge headlamp
relay
28 — Not used
29 30A* Passenger front window
30 — Not used
31 30A* Passenger power seat
32 30A* Driver power seat
2013 05+ Mustang (197)
Owners Guide gf, 1st Printing
USA(fus)
