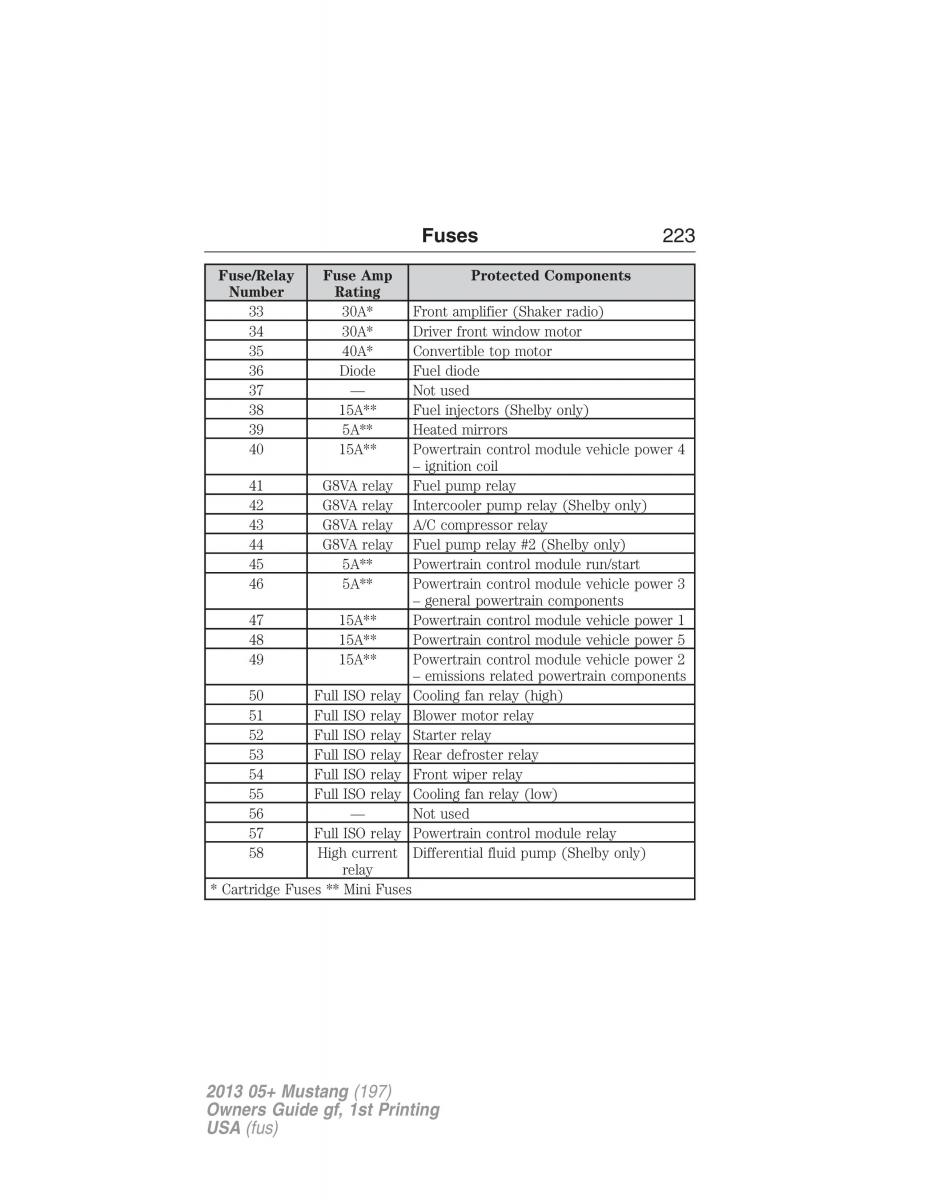

Fuses 223
Fuse/RelayFuse Amp Protected Components
Number Rating
33 30A* Front amplifier (Shaker radio)
34 30A* Driver front window motor
35 40A* Convertible top motor
36 Diode Fuel diode
37 — Not used
38 15A** Fuel injectors (Shelby only)
39 5A** Heated mirrors
40 15A** Powertrain control module vehicle power 4
– ignition coil
41 G8VA relayFuel pump relay
42 G8VA relayIntercooler pump relay (Shelby only)
43 G8VA relayA/C compressor relay
44 G8VA relayFuel pump relay #2 (Shelby only)
45 5A** Powertrain control module run/start
46 5A** Powertrain control module vehicle power 3
– general powertrain components
47 15A** Powertrain control module vehicle power 1
48 15A** Powertrain control module vehicle power 5
49 15A** Powertrain control module vehicle power 2
– emissions related powertrain components
50 Full ISO relay Cooling fan relay (high)
51 Full ISO relay Blower motor relay
52 Full ISO relay Starter relay
53 Full ISO relay Rear defroster relay
54 Full ISO relay Front wiper relay
55 Full ISO relay Cooling fan relay (low)
56 — Not used
57 Full ISO relay Powertrain control module relay
58 High currentDifferential fluid pump (Shelby only)
relay
* Cartridge Fuses ** Mini Fuses
2013 05+ Mustang (197)
Owners Guide gf, 1st Printing
USA(fus)
