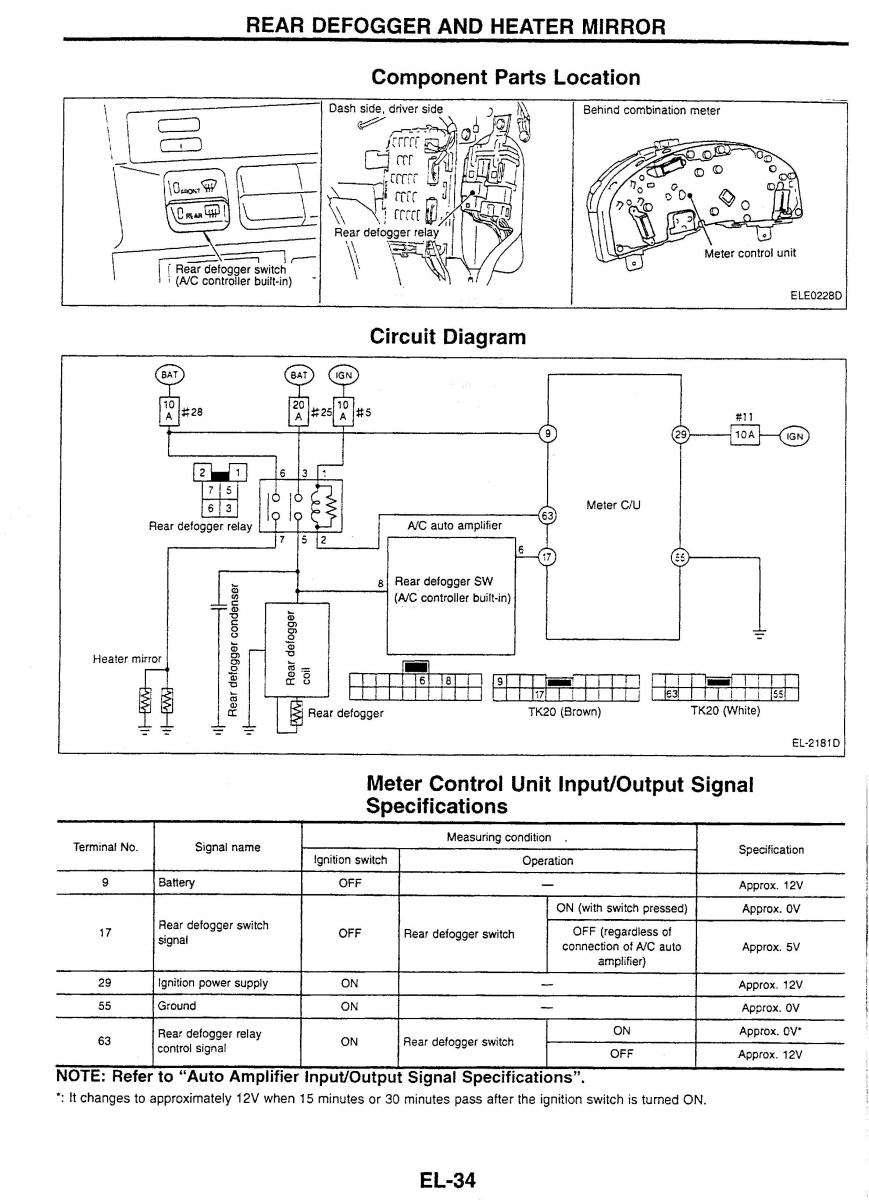

REAR DEFOGGER AND HEATER MIRROR Component Parts Location -- Behind combination meter Circuit Diagram 10 A g28 81 1 Meter CIU Rear defogger relay AIC auto ampl~f~er . 0 z 8 Rear defogger SW a i (AC controller built-m) mirror u Heater Rear defogger TK20 (Brown) TK20 (White) EL-2181 D Meter Control Unit InputlOutput Signal S~ecif ications Terminal No. Signal name Measuring condition . Specification Ignition switch Operation 9 Battery OFF - Approx. 12V ON (with switch pressed) Approx. OV 17 Rear defogger switch OFF Rear defogger switch OFF (regardless of signal connection of AIC auto Approx. 5V - amplifier) 29 Ignition power supply ON - Approx. 12V 55 Ground ON Approx. OV 63 Rear defogger relay ON Rear defogger switch ON Approx. OV* control signal OFF Approx. 12V NOTE: Refer to "Auto Amplifier InputlOutput Signal Specifications". ': It changes to approximately 12V when 15 minutes or 30 minutes pass after the ignition switch is turned ON.
