text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

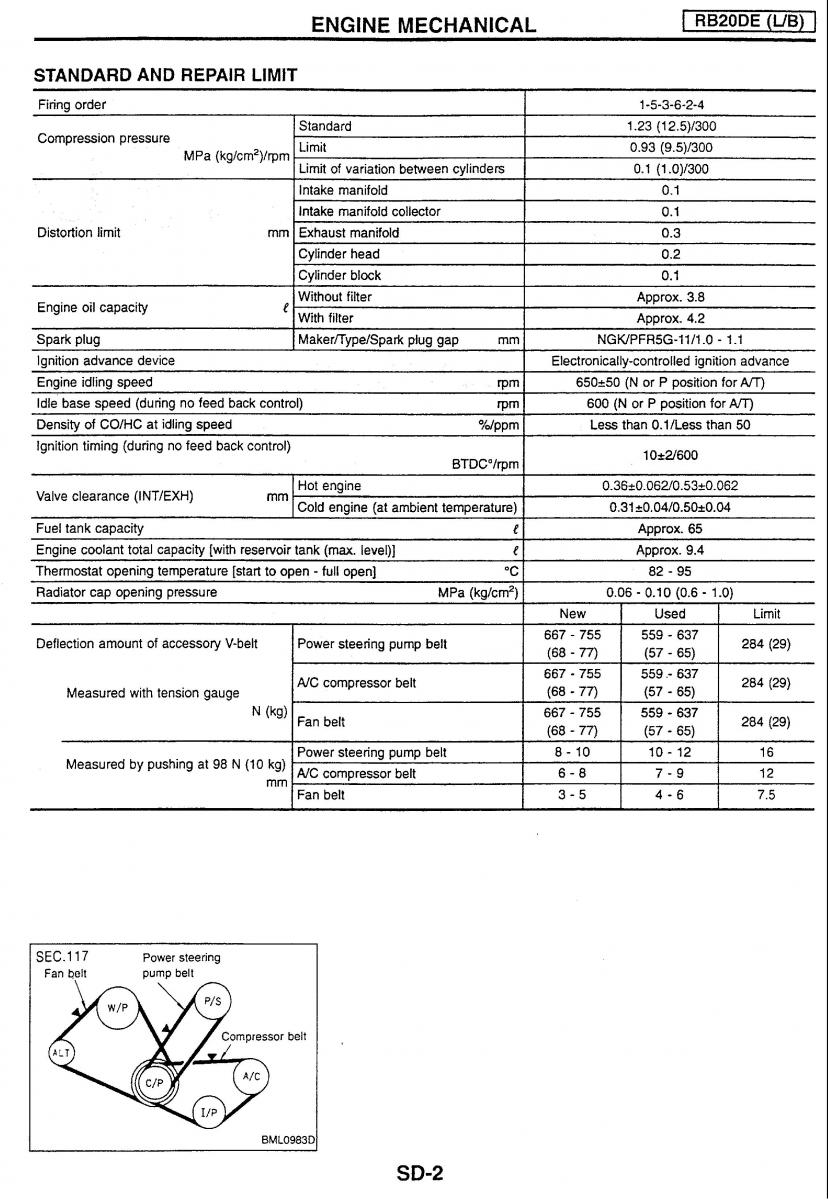

ENGINE MECHANICAL I RB~ODE (UB) ] STANDARD AND REPAIR LIMIT Firing order I 1-5-3-6-2-4 Compression pressure standard 1.23 (1 2%)/300 Limit 0.93 (9.5)1300 MPa (kg/cm2)/rpm . Limit of variation between cylinders 0.1 (1.0)/300 Intake manifold 0.1 Intake manifold collector 0.1 Distortion limit mm Exhaust manifold 0.3 Cylinder head 0.2 Cvlinder block 0.1 Engine oil capacity e Without filter Approx. 3.8 With filter Approx. 4.2 Spark plug MakerlTypeISpark plug gap mm NG WPFR5G-11 11.0 - 1 -1 Ignition advance device - - -- --- - Electronically-controlled ignition advance Engine idling speed W' 650-.50 (N or P position for A/T) Idle base speed (during no feed back control) rPm 600 (N or P position for AlT) Density of COIHC at idling speed Wppm Less than O.l/Less than 50 lgnition timing (during no feed back control) Hot engine 0.36+0.062/0.53+0.062 Valve clearance (INTIEXH) mm . Cold engine (at ambient temperature) 0.31 1~,0.04/0.50i0.04 Fuel tank capacity e Approx. 65 Engine coolant total capacity [with reservoir tank (max. level)] e Approx. 9.4 Thermostat opening temperature [start to open - full open] "C 82 - 95 Radiator cap opening pressure MPa (kg/cm2) 0.06 - 0.1 0 (0.6 - 1 .O) I New I Used I Limit Deflection amount of accessory V-belt Power steering pump belt 667 - 755 559 - 637 284 (29) (68 - 77) (57 - 65) Measured with tension gauge A/C compressor belt N (kg) Fan belt Measured by pushing at 98 N (10 kg) Power steering pump belt 1 8-10 1 10-12 1 16 mm A/C compressor belt 1 6-8 1 7-9 / 12 Fan belt 1 3-5 1 4-6 1 7.5 SEC.117 Power steering Fan belt pump be1 t
