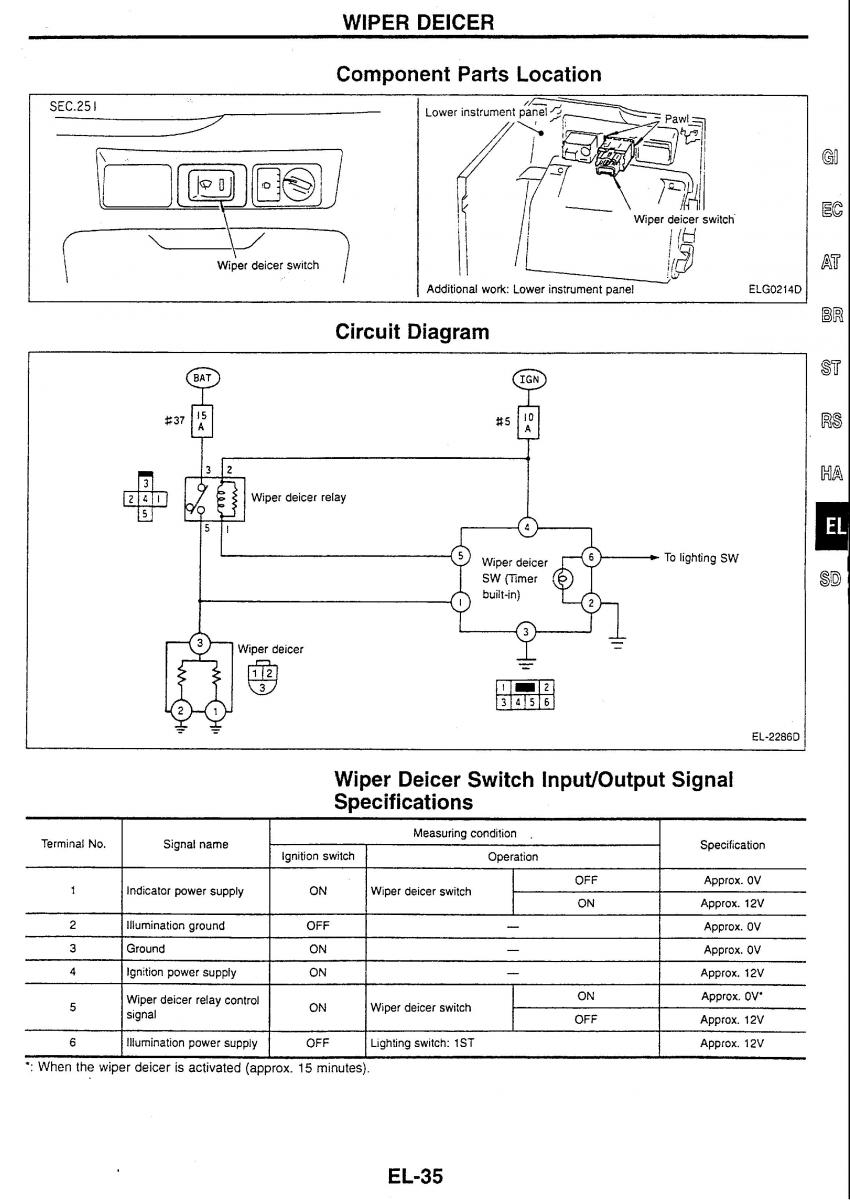

WIPER DEICER Component Parts Location / I Wiper deicer switch Wiper deicer switch I Circuit Diagram Wiper deicer relay m Wiper deicer lighting SW (Timer built-in) Wiper deicer Wiper Deicer Switch InputlOutput Signal Specifications Terminal No. Signal name Measuring condition . Specification Ignition switch I Operation - Indicator power supply Wiper deicer switch OFF Approx. OV ON Approx. 12V - -- - 2 lllumination ground OFF Approx. OV 3 Ground ON - Approx. OV - - - - 4 lgn~tion power supply ON - 1 Approx. 12V 5 Wiper deicer relay control I ON 1 Wiper deicer switch ON Approx. OV' signal OFF Approx. 12V 6 -- - Illumination power supply OFF Lighting switch: 1ST Approx. 12V *: When the wiper deicer is activated (approx. 15 minutes).
