text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

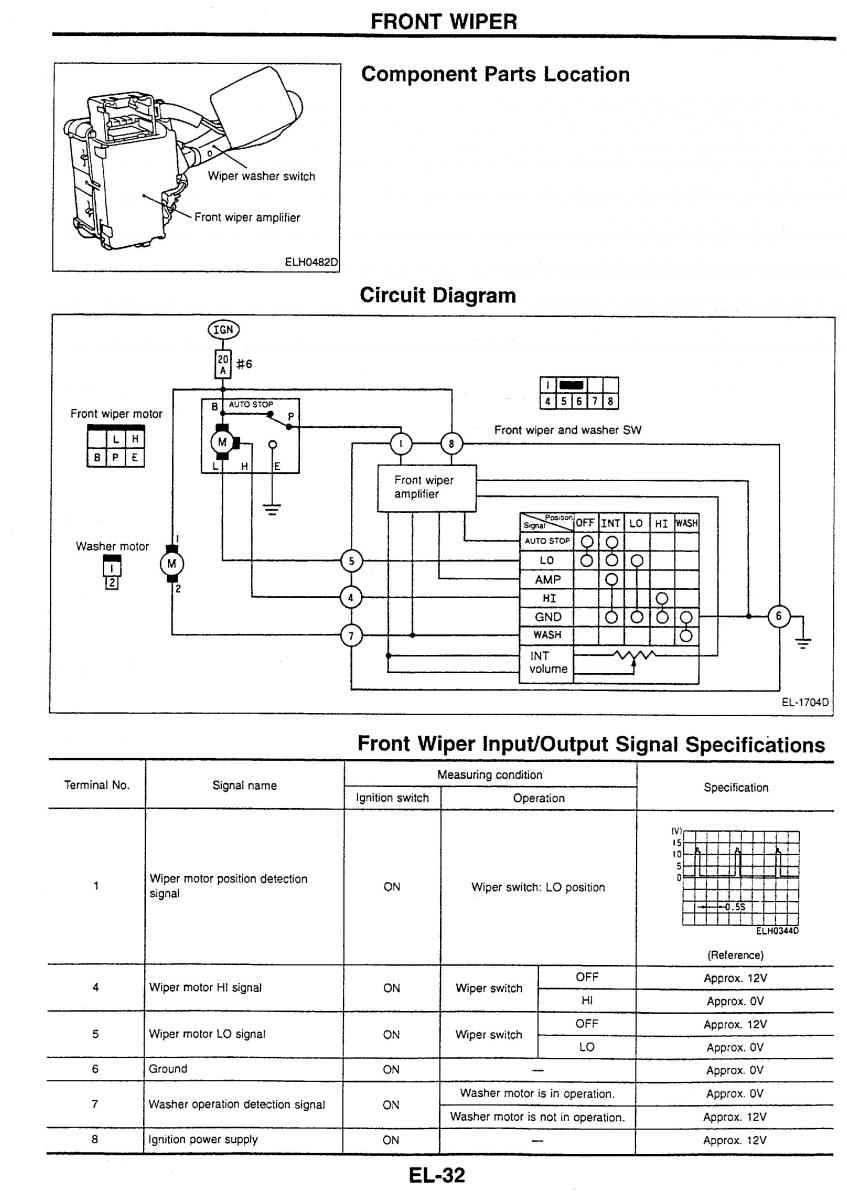

FRONT WIPER Component Parts Location Front wiper amplifier Circuit Diagram Front wiper motor Front wiper and washer SW Washer motor ---------------- HI EL-17040 Front Wiper InpWOutput Signal Specifications Terminal No. Signal name 1 Measuring condition. I Specification Ignition switch Operation 1 Wiper motor position detection Wiper switch: LO position signal (Reference) I OFF 4 Wiper motor HI signal ON Wiper switch Approx. 12V HI Approx. OV Wiper motor LO signal Wiper switch . OFF Approx. 12V I I Lo ADDIOX. . . OV 6 Ground ON - Approx. OV I I Washer motor is in operation. Approx. OV 7 1 Washer operation detection signal I ON - Washer motor is not in operation. Approx. 12V I 8 I Ignition power supply I ON I - I Approx. 12V
