text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

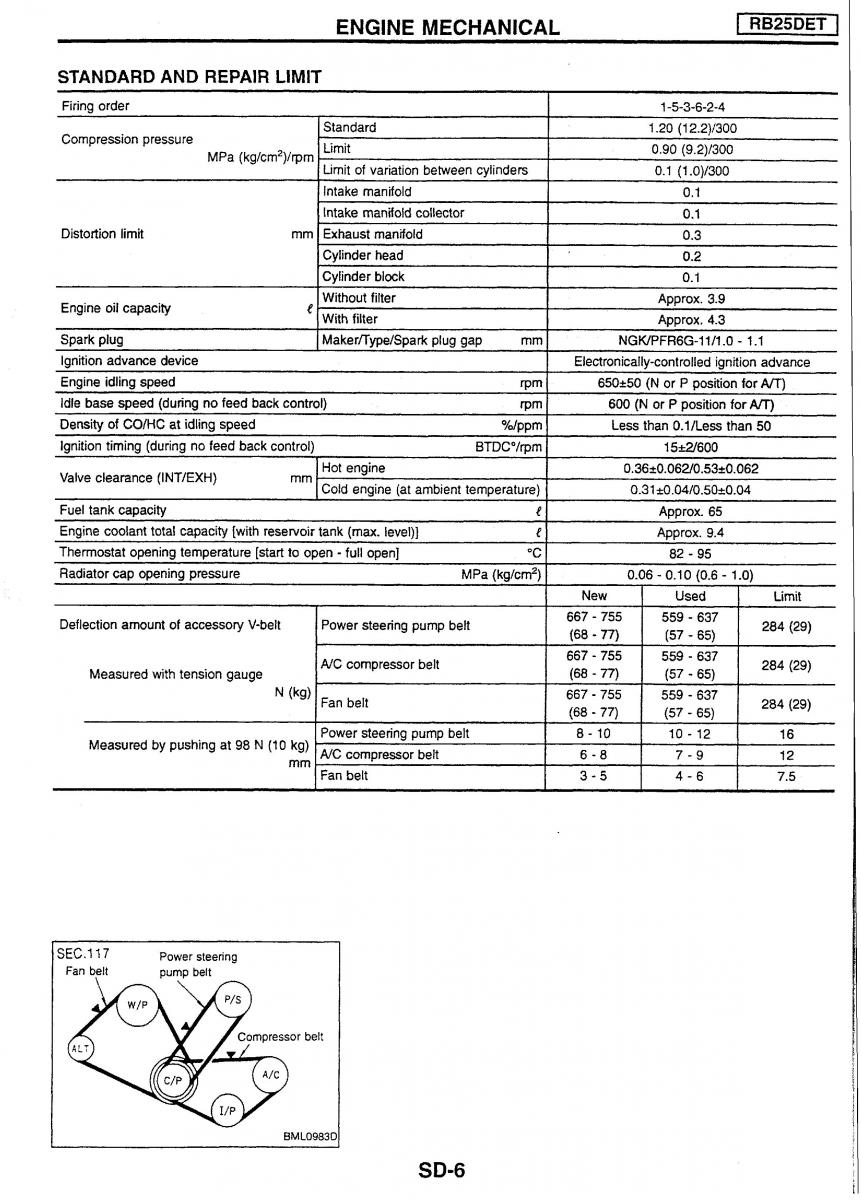

ENGINE MECHANICAL STANDARD AND REPAIR LIMIT Firing order 1 -5-3-6-2-4 Compression pressure Standard 1.20 (1 2.2)/300 MPa (kg/cm2)/rpm - Limit 0.90 (9.2)/300 Limit of variation between cylinders 0.1 (1.0)/300 Intake manifold - - -- - 0.1 Intake manifold collector 0.1 Distortion limit mm Exhaust manifold 0.3 Cvlinder head 0.2 ( Cylinder block - -- - 0.1 Engine oil capacity Without filter Approx. 3.9 'with filter Aoorox. 4.3 - -- - - Spark plug I ~akerfl~~e/~~ark plug gap mm r NGKPFRGG-11/1.0 - 1.1 ignition advance device I Electronically-controlled ignition advance Engine idling speed rPm 650-e50 (N or P position for A/T) Idle base speed (during no feed back control) Pm 600 (N or P position for AQ Density of COIHC at idling speed Wppm Less thanbl~ess than 50 Ignition timing (during no feed back control) BTDCO/rpm 15dY600 Valve clearance (INT/EXH) mm Hot engine 0.36+0.062/0.53i0.062 Cold engine (at ambient temperature) 0.3 1 20 .04/0.50a0.04 Fuel tank capacity 4 Approx. 65 Engine coolant total capacity [with reservoir tank (max. level)] t Approx. 9.4 Thermostat opening temperature [start to open - full open] OC 82 - 95 Radiator cap opening pressure MPa (kg/cm2) 0.06 - 0.1 0 (0.6 - 1 .O) New 1 Used 1 Limit Deflection amount of accessory V-belt Power steering pump belt 667 - 755 559 - 637 284 (29) , (68 - 77) (57 - 65) AfC compressor belt 667 - 755 559 - 637 284 (29) Measured with tension gauge (68 - 77) (57 - 65) (kg) Fan belt 667 - 755 559 - 637 284 (29) (68 - 77) (57 - 65) 8- 10 - Measured by pushing at 98 N (1 0 kg) ' Power steering pump belt 10 - 12 16 mm AfC compressor belt 6-8 7-9 12 Fan belt 3 - 5 4 - 6 7.5 SEC.117 Power steering I Fan belt pump belt
